Phoenix Contact MINI MCR Series Signal Conditioner, Current Input, Current Output, 30V dc, 9.6 V dc Supply, IECEx, ATEX

RS Stock No.:: 849-6311
Mfr. Part No.:: 2901998
Manufacturer:: Phoenix Contact

Phoenix Contact MINI MCR Series Signal Conditioner, Current Input, Current Output, 30V dc, 9.6 V dc Supply, IECEx, ATEX

Subtotal (1 unit)*

PHP11,339.10

(exc. VAT)

PHP12,699.79

(inc. VAT)

FREE delivery for orders over ₱5,000.00

In Stock

Plus 15 unit(s) shipping from October 05, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP11,339.10

*price indicative

RS Stock No.:: 849-6311
Mfr. Part No.:: 2901998
Manufacturer:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Product Type	Signal Conditioner
	Input Signal Type	Current
	Output Signal Type	Current
	Input Range	0 → 20 mA, 4 → 20 mA
	Output Range	4 → 22 mA, 0 → 22 mA
	Supply Voltage	30V dc, 9.6V dc
	Hazardous Area Certification	IECEx, ATEX
	Mount Type	DIN Rail
	Terminal Type	Screw
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	IP Rating	IP20
	Signal Conditioner Type	Standard Signal 3-Way Signal Conditioner
	Standards/Approvals	Zone 2, EN 61000-6-4, GB/T 3836.1, IECEX, DNV GL TAA00002UA, Class I, EAC Ex, Groups A, CE, EN 61000-4-6, EN 61000-4-4, EN 61000-4-5, ATEX, EN 61000-4-2, EN 61000-4-3, D T6, UL 508 Listed, Group IIC T6, EN 61000-6-2, GB/T 3836.4, IEC/EN 61010-1, CCC / China-Ex, GB/T 3836.3, Div. 2
	Series	MINI MCR
	Number of Channels	1

	Select all
	Brand Phoenix Contact
	Product Type Signal Conditioner
	Input Signal Type Current
	Output Signal Type Current
	Input Range 0 → 20 mA, 4 → 20 mA
	Output Range 4 → 22 mA, 0 → 22 mA
	Supply Voltage 30V dc, 9.6V dc
	Hazardous Area Certification IECEx, ATEX
	Mount Type DIN Rail
	Terminal Type Screw
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	IP Rating IP20
	Signal Conditioner Type Standard Signal 3-Way Signal Conditioner
	Standards/Approvals Zone 2, EN 61000-6-4, GB/T 3836.1, IECEX, DNV GL TAA00002UA, Class I, EAC Ex, Groups A, CE, EN 61000-4-6, EN 61000-4-4, EN 61000-4-5, ATEX, EN 61000-4-2, EN 61000-4-3, D T6, UL 508 Listed, Group IIC T6, EN 61000-6-2, GB/T 3836.4, IEC/EN 61010-1, CCC / China-Ex, GB/T 3836.3, Div. 2
	Series MINI MCR
	Number of Channels 1

COO (Country of Origin):: DE

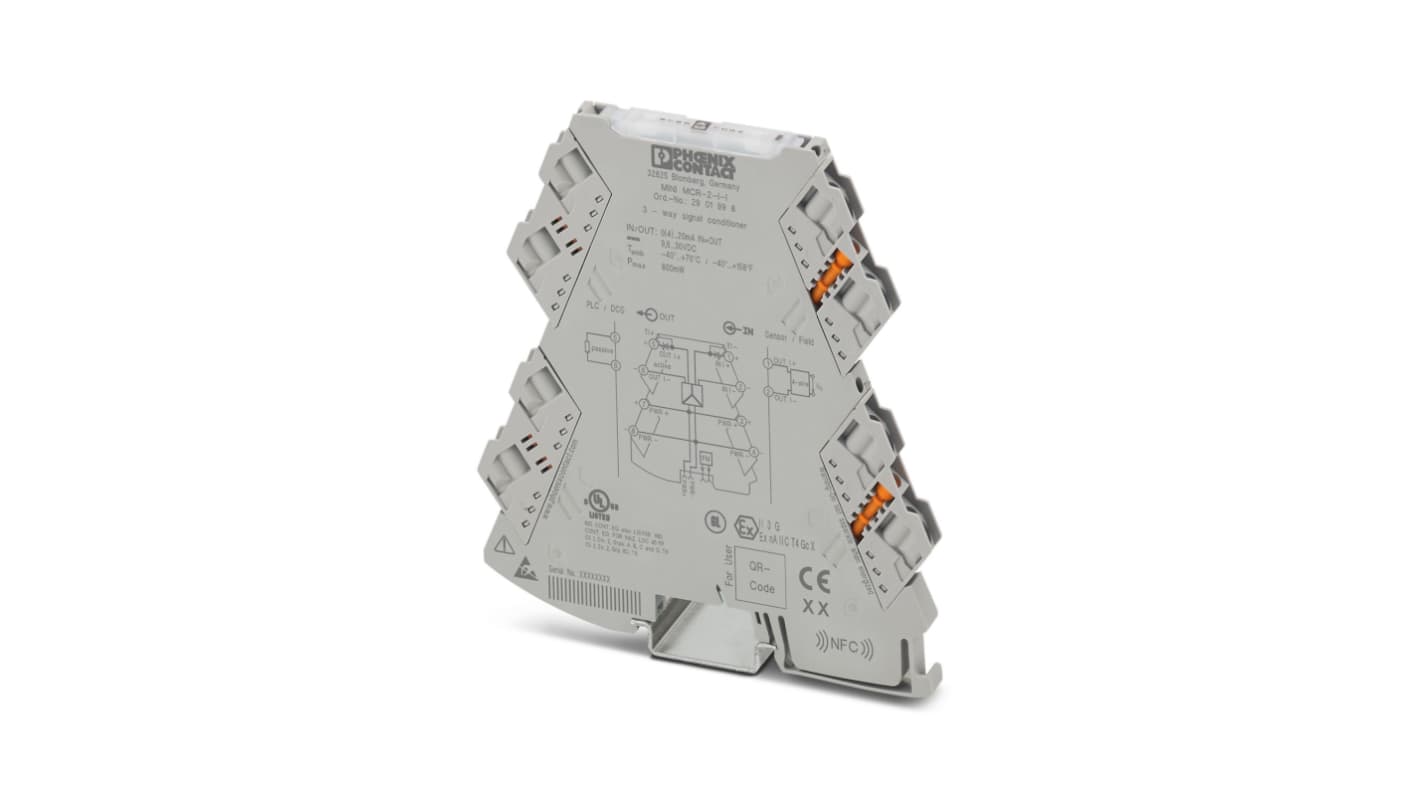

Phoenix Contact MINI MCR Series Signal Conditioner, +70 °C Maximum Operating Temperature, DIN Rail Mounting - 2901998

This signal conditioner from Phoenix Contact is a highly reliable and temperature resistant signal converter designed for industrial signal processing. With a current input range of 0 20 mA and a DIN rail mount module, the mini MCR series ensures precise signal conditioning for a wide range of applications.

Features & Benefits

• Three way signal conditioner with plug in connection technology

• Electrical isolation of analogue signals

• Input signal range of 0 20 mA, output signal range of 0 22 mA

• Suitable for current signals with screw connection technology

• Supports fault monitoring and NFC communication

• Wide operating temperature range from 40°C to +70°C

• Supply voltage range of 9.6 30 V DC for versatile applications

Applications

• Ideal for automation, electronics, electrical, and mechanical industries

• Used for electrical isolation, conversion, amplification, and filtering of standard current signals

• Perfect for applications requiring reliable signal conditioning in harsh environments

Can it be used for current signals other than 0-20 mA?

Yes, it supports current input signals from 4-20 mA as well.

Will it maintain signal integrity in extreme temperatures?

Yes, with a temperature range of -40°C to +70°C, it ensures stable performance in challenging environments.

Is it suitable for industrial use?

Yes, this signal conditioner is designed for industrial applications requiring precise signal processing.

Can it be easily integrated into existing systems?

Yes, with DIN rail mount compatibility and plug-in connection technology, it can be easily installed in various setups.

Will it ensure accurate signal transmission within the specified output range?

Yes, the Phoenix Contact MINI MCR series guarantees precise signal conditioning within the output range of 0-22 mA.
