PR Electronics 9100 Series Signal Conditioner, Thermocouple, Current, RTD Input, Current Output, 19.2V dc, 31.2 V dc
- RS Stock No.:
- 270-1746
- Mfr. Part No.:
- 9113AA
- Manufacturer:
- PR Electronics
Subtotal (1 unit)*
PHP28,476.73
(exc. VAT)
PHP31,893.94
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from May 07, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP28,476.73 |
*price indicative
- RS Stock No.:
- 270-1746
- Mfr. Part No.:
- 9113AA
- Manufacturer:
- PR Electronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PR Electronics | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Thermocouple, Current, RTD | |
| Output Signal Type | Current | |
| Input Range | 3.5 → 23 mA | |
| Isolation | 2.6kV ac | |
| Output Range | 0 → 23 mA | |
| Supply Voltage | 19.2, 31.2V dc | |
| Hazardous Area Certification | IECEx/ATEX | |
| Mount Type | DIN Rail | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Standards/Approvals | RoHS, UL 61010-1 | |
| Series | 9100 | |
| Select all | ||
|---|---|---|
Brand PR Electronics | ||
Product Type Signal Conditioner | ||
Input Signal Type Thermocouple, Current, RTD | ||
Output Signal Type Current | ||
Input Range 3.5 → 23 mA | ||
Isolation 2.6kV ac | ||
Output Range 0 → 23 mA | ||
Supply Voltage 19.2, 31.2V dc | ||
Hazardous Area Certification IECEx/ATEX | ||
Mount Type DIN Rail | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Standards/Approvals RoHS, UL 61010-1 | ||
Series 9100 | ||
- COO (Country of Origin):
- DK

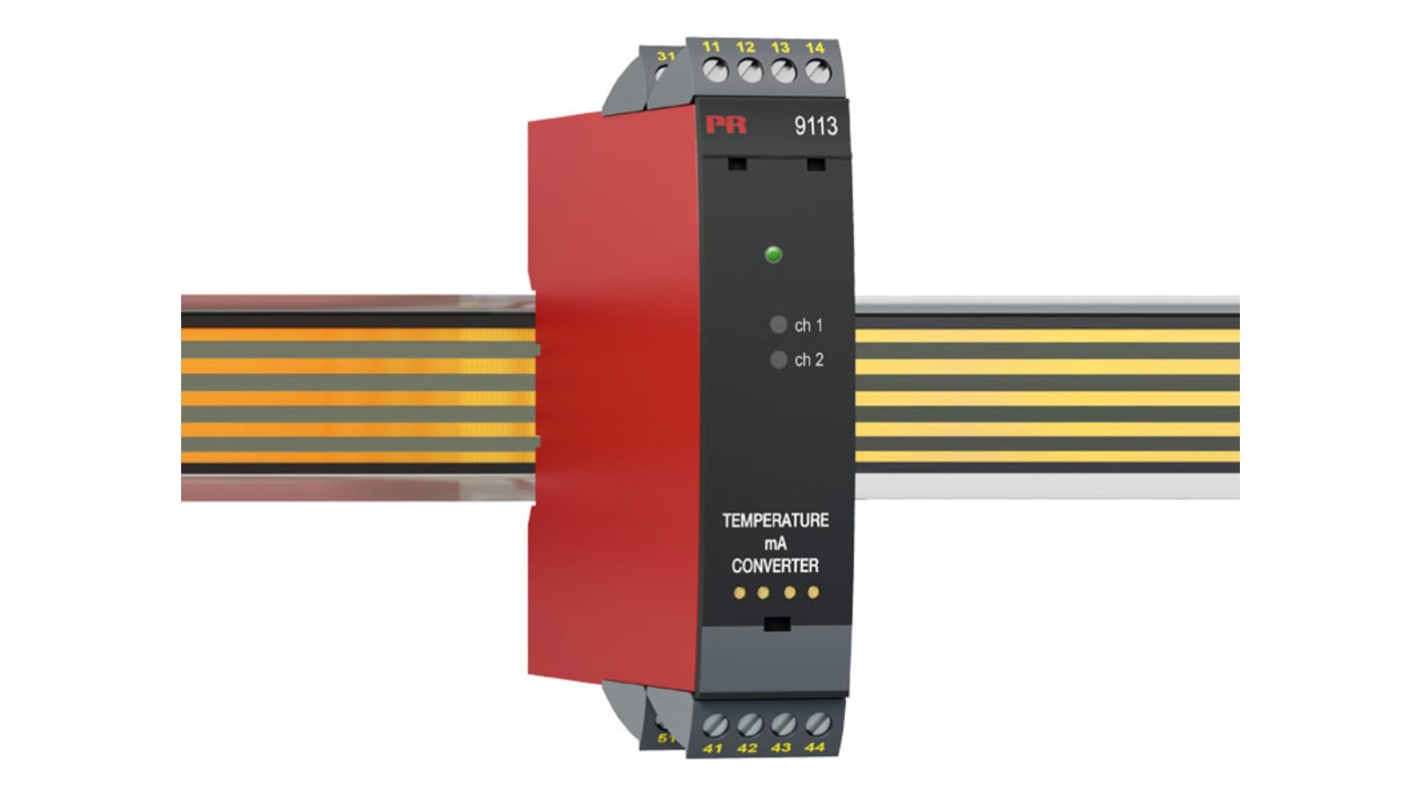

The PR Electronics Temperature / mA converter is designed to use for conversion and scaling of temperature RTD, TC, mA signal and active current signals. The devices can be mounted vertically or horizontally without distance between neighbouring units.
Copying of the configuration from one device to others of the same type via the display front
Advanced monitoring of internal communication and stored data
