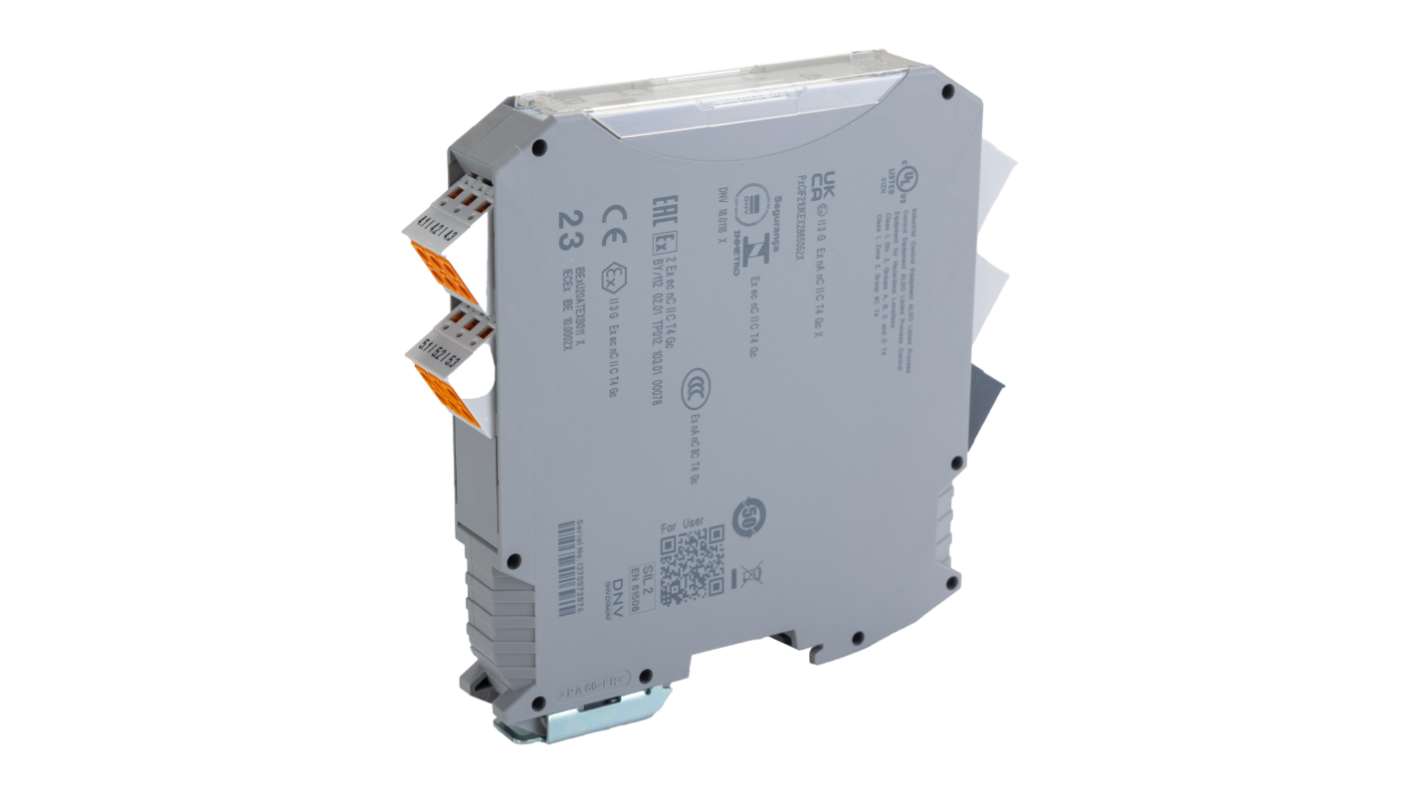

Phoenix Contact MACX MCR-SL-2NAM-R-UP-SP Series Isolation Amplifier, 24/230 V ac/dc Supply, ATEX

RS Stock No.:: 212-7325
Mfr. Part No.:: 2924304
Manufacturer:: Phoenix Contact

Phoenix Contact MACX MCR-SL-2NAM-R-UP-SP Series Isolation Amplifier, 24/230 V ac/dc Supply, ATEX

Subtotal (1 unit)*

PHP13,985.22

(exc. VAT)

PHP15,663.45

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 +	PHP13,985.22

*price indicative

RS Stock No.:: 212-7325
Mfr. Part No.:: 2924304
Manufacturer:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Product Type	Isolation Amplifier
	Input Range	24 to 230 V ac/dc
	Supply Voltage	24/230 V ac/dc
	Hazardous Area Certification	ATEX
	Mount Type	DIN Rail
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	60°C
	Terminal Type	Push-in
	IP Rating	IP20
	SIL Level	SIL 2
	Standards/Approvals	RoHS
	Series	MACX MCR-SL-2NAM-R-UP-SP
	Number of Channels	2

	Select all
	Brand Phoenix Contact
	Product Type Isolation Amplifier
	Input Range 24 to 230 V ac/dc
	Supply Voltage 24/230 V ac/dc
	Hazardous Area Certification ATEX
	Mount Type DIN Rail
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 60°C
	Terminal Type Push-in
	IP Rating IP20
	SIL Level SIL 2
	Standards/Approvals RoHS
	Series MACX MCR-SL-2NAM-R-UP-SP
	Number of Channels 2

COO (Country of Origin):: DE

Phoenix Contact MACX MCR-SL-2NAM-R-UP-SP Series Isolation Amplifier, 24 to 230V AC/DC Input Range, DIN Rail Mount - 2924304

This isolation amplifier is tailored for signal conditioning in industrial applications providing a compact solution for isolating signals and features a DIN rail mount design. With dimensions of 17.5mm width, 107.9mm height, and 113.7mm depth, it operates within a versatile input range of 24 to 230 V ac/dc.

Features & Benefits

• Provides 3-way electrical isolation for improved safety

• Supports supply voltages from 19.2V to 253V

• Includes line fault detection to indicate errors

• Offers a selectable operation mode for adaptability

• Features clear LED indicators for status monitoring

• Compatible with NAMUR sensors and floating contacts

Applications

• Utilised in proximity sensor

• Employed in automation and control systems

• Functions effectively in hazardous locations

• Supports signal isolation in electrical monitoring

Can it operate in temperature ranges from -40°C to 60°C?

Yes, it operates efficiently between -40°C and 60°C.

Is it suitable for use in zone 2 hazardous areas?

Yes, this product is approved for use in zone 2 environments.

Will it provide line fault detection capabilities?

Yes, it features line fault detection that can be activated.

Can it handle a wide range of supply voltages?

Yes, it supports supply voltages from 19.2V to 253V.
