Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Kubler
	Module Type	Interface Converter
	Input Signal Type	HTL, RS-422, SSI, TTL
	Output Signal Type	Analogue, RS-232, RS-485
	Output Range	±10 V, 0→10 V, 0→20 mA, 4→20mA
	Supply Voltage	18 → 36V dc
	Operating Temperature Range	0 → +45°C
	Maximum Operating Temperature	+45°C
	Minimum Operating Temperature	0°C

	Select all
	Brand Kubler
	Module Type Interface Converter
	Input Signal Type HTL, RS-422, SSI, TTL
	Output Signal Type Analogue, RS-232, RS-485
	Output Range ±10 V, 0→10 V, 0→20 mA, 4→20mA
	Supply Voltage 18 → 36V dc
	Operating Temperature Range 0 → +45°C
	Maximum Operating Temperature +45°C
	Minimum Operating Temperature 0°C

Datasheet

COO (Country of Origin):: DE

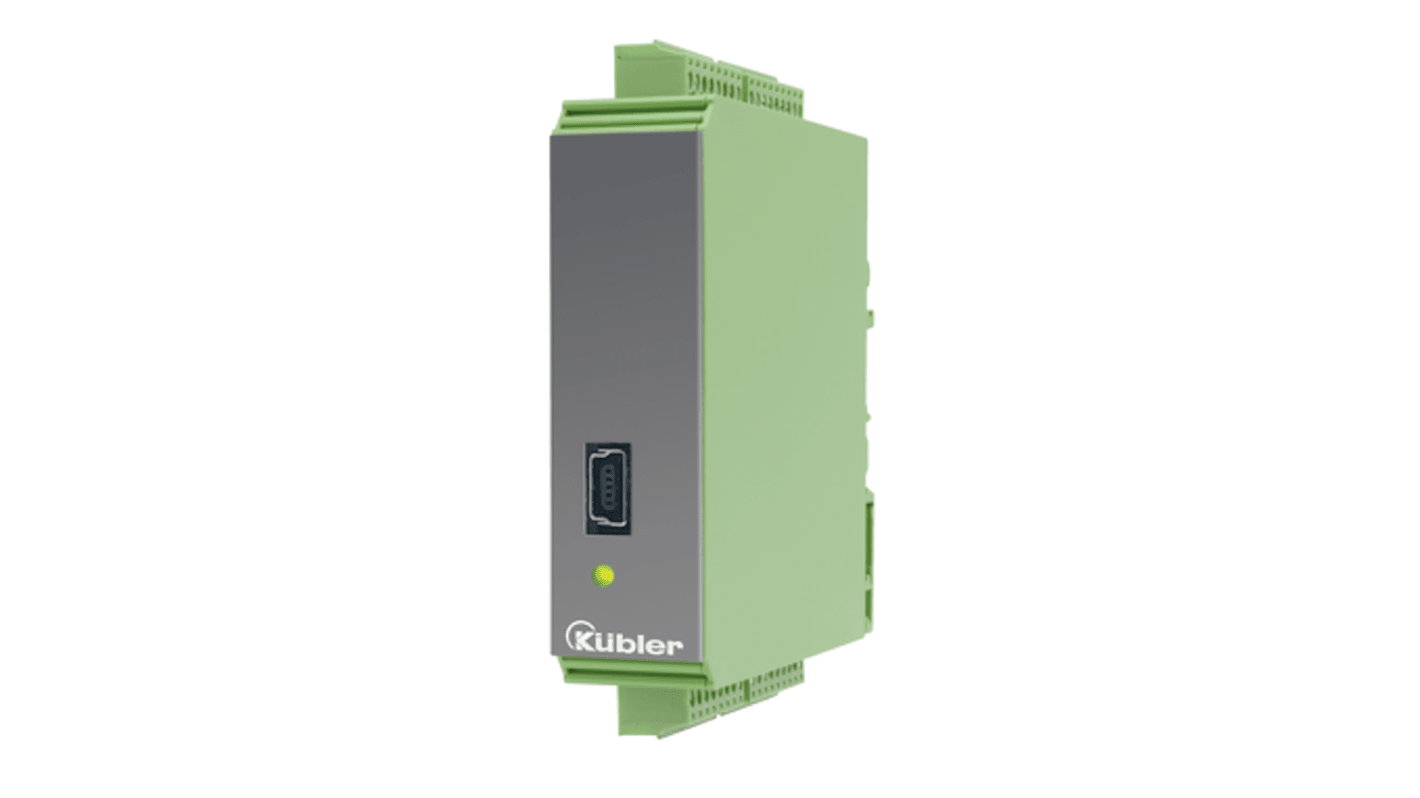

The Fritz Kuebler signal converter is designed for industrial applications that require converting a sensor or encoder information available in SSI format into an analogue signal or into a serial RS232/RS485 format. It is a multifunction device with operating modes for incremental encoders or absolute SSI encoders.

Additional functions such as bit blanking, round loop function, etc
Easy programming by TEACH function or with a PC
Auxiliary voltage output 5 and 24 V DC for encoder supply
Extremely short conversion times

Kubler Signal Conditioner, HTL, RS-422, SSI, TTL Input, Analogue, RS-232, RS-485 Output, 18 → 36V dc Supply
