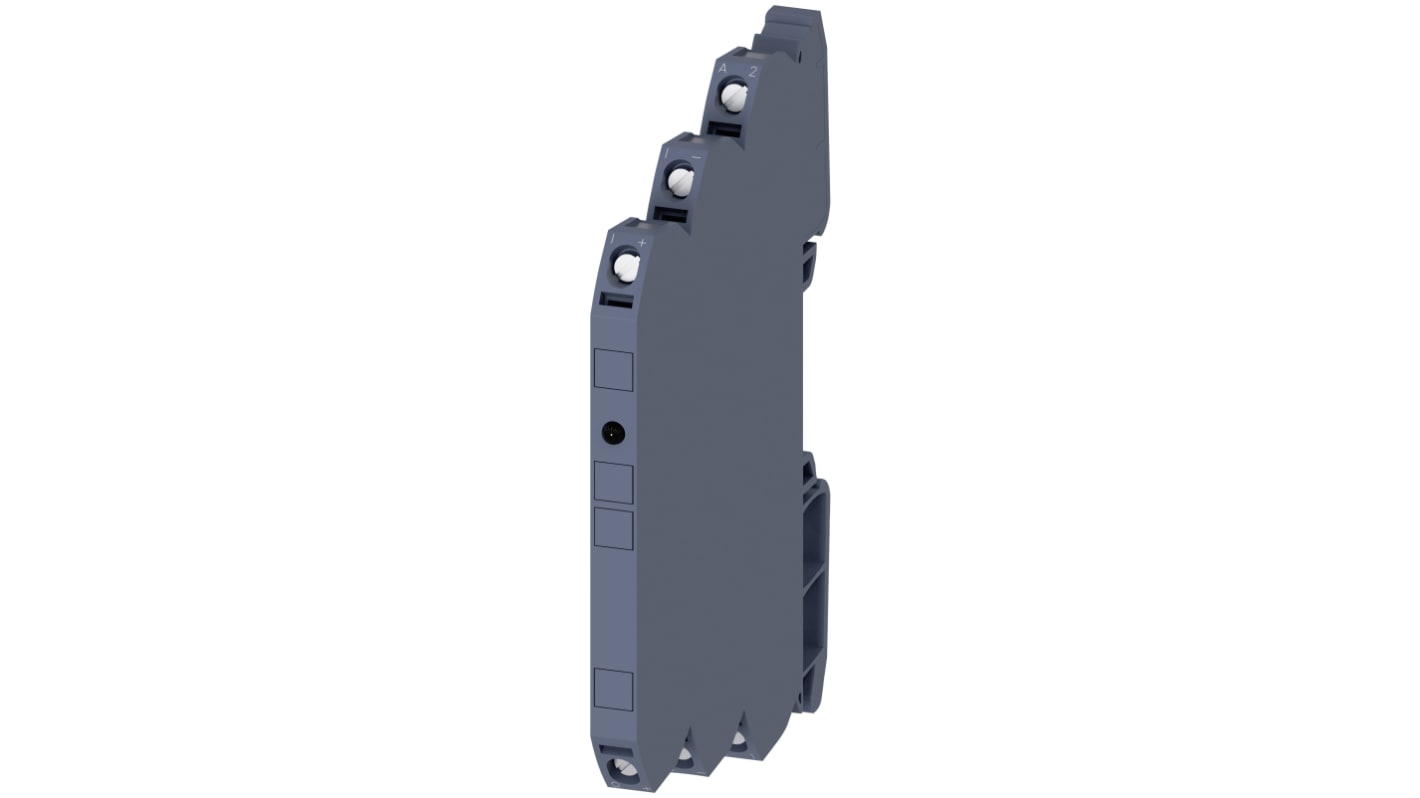

Siemens 3RS7000 Series Signal Converter, Voltage Input, Current Output, 24V ac/dc Supply
- RS Stock No.:
- 134-8027
- Distrelec Article No.:
- 301-33-356
- Mfr. Part No.:
- 3RS7000-1DE00
- Manufacturer:
- Siemens
Subtotal (1 unit)*
PHP27,330.40
(exc. VAT)
PHP30,610.05
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP27,330.40 |
*price indicative
- RS Stock No.:
- 134-8027
- Distrelec Article No.:
- 301-33-356
- Mfr. Part No.:
- 3RS7000-1DE00
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Signal Converter | |
| Input Signal Type | Voltage | |
| Output Signal Type | Current | |
| Input Range | 0 → 10 V dc | |
| Output Range | 4 → 20 mA | |
| Supply Voltage | 24V ac/dc | |
| Hazardous Area Certification | No | |
| Mount Type | Snap-On | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw | |
| Signal Conditioner Type | Converter | |
| Standards/Approvals | IEC 61000-4-5, IEC 61000-4-3, IEC 61000-4-4, IEC 60947-1, IEC 61000-4-2 | |
| Series | 3RS7000 | |
| Number of Channels | 1 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Signal Converter | ||
Input Signal Type Voltage | ||
Output Signal Type Current | ||
Input Range 0 → 10 V dc | ||
Output Range 4 → 20 mA | ||
Supply Voltage 24V ac/dc | ||
Hazardous Area Certification No | ||
Mount Type Snap-On | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Screw | ||
Signal Conditioner Type Converter | ||
Standards/Approvals IEC 61000-4-5, IEC 61000-4-3, IEC 61000-4-4, IEC 60947-1, IEC 61000-4-2 | ||
Series 3RS7000 | ||
Number of Channels 1 | ||
- COO (Country of Origin):
- DE
Siemens 3RS7000 Series Signal Converter, 0 to 10V Input Range, 4 to 20mA Output Range - 3RS7000-1DE00
This signal converter conditions a single voltage input into an industry-standard current output for control systems. It accepts 0 to 10V DC and provides an isolated 4 to 20mA signal while running from a 24V AC/DC supply. Designed for DIN-rail Snap-on mounting, the unit includes screw terminals and an LED indicator for straightforward integration in industrial installations.
Features and Benefits:
• 0.1% relative metering precision for accurate signal representation
• 24V supply operating range 0.8…1.1 ensures stable power tolerance
• 3-path galvanic isolation protects input and supply circuits
• 17 MS settling time supports responsive control loops
• Output short-circuit proof with 500 Ω maximum load handling
• 24V supply operating range 0.8…1.1 ensures stable power tolerance
• 3-path galvanic isolation protects input and supply circuits
• 17 MS settling time supports responsive control loops
• Output short-circuit proof with 500 Ω maximum load handling
Applications
• Used for interfacing sensors to PLC analogue inputs
• Suitable for current-loop transmission in process control
• Ideal for converting panel 0 to 10V signals to 4 to 20mA
• Can be used for retrofit of voltage-only transmitter systems
• Used with EMC-sensitive installations requiring immunity
• Suitable for current-loop transmission in process control
• Ideal for converting panel 0 to 10V signals to 4 to 20mA
• Can be used for retrofit of voltage-only transmitter systems
• Used with EMC-sensitive installations requiring immunity
What input impedance must sensors meet?
Sensors should drive at least a 330 kΩ input impedance to match the voltage input specification.
How does it behave under electrical disturbances?
The device meets IEC surge, burst and ESD levels including 2.5 kV surge and 6 kV contact discharge, providing measured immunity.
What are the environmental operating limits?
It operates between -25 °C and +60 °C with relative humidity tolerance of 10…95% during operation.
What conductor sizes are compatible with terminals?
Solid conductors 0.25…2.5 mm² and finely stranded with end ferrules 0.25…1.5 mm² are supported.
