Ruland Shaft Collar, One Piece, Clamp Screw, OD 78 mm OD, W 19mm, Stainless Steel
- RS Stock No.:
- 174-6759
- Mfr. Part No.:
- MCL-50-SS
- Manufacturer:
- Ruland
Bulk discount available
Subtotal (1 unit)*
PHP8,431.61
(exc. VAT)
PHP9,443.40
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from July 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP8,431.61 |
| 5 - 9 | PHP8,178.67 |
| 10 + | PHP7,933.30 |
*price indicative
- RS Stock No.:
- 174-6759
- Mfr. Part No.:
- MCL-50-SS
- Manufacturer:
- Ruland
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| One/Two Piece | One Piece | |
| Material | Stainless Steel | |
| Single/Double Wide | Single Wide | |
| Fastening | Clamp Screw | |
| Threaded Bore Size | M8 x 25 | |
| Finish | Bright | |
| Series | MCL | |
| Bore Type | Plain | |
| Standards/Approvals | DIN 912 12.9, REACH, RoHS3 | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
One/Two Piece One Piece | ||
Material Stainless Steel | ||
Single/Double Wide Single Wide | ||
Fastening Clamp Screw | ||
Threaded Bore Size M8 x 25 | ||
Finish Bright | ||
Series MCL | ||
Bore Type Plain | ||
Standards/Approvals DIN 912 12.9, REACH, RoHS3 | ||
- COO (Country of Origin):
- US

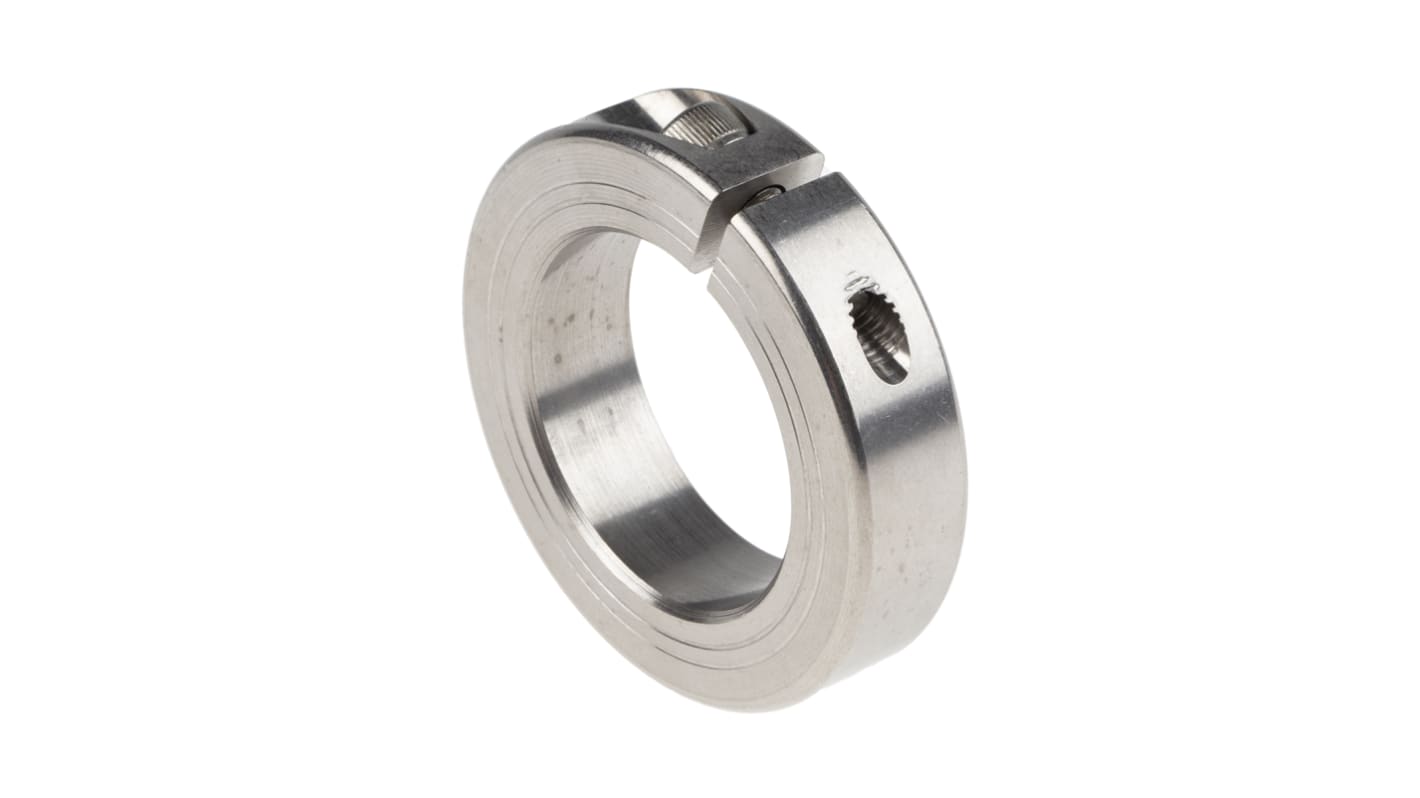

Ruland Shaft Collar One-piece Clamp Screw
The Ruland one-piece shaft collar has dimensions of 50mm bore, 78mm OD and 19mm width. It is made from 303 stainless steel with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M8x25 dimension.
Features and Benefits
• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
Applications
• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop
Certifications
• DIN 912 12.9
• REACH certification
