Siemens Short Handle Selector Switch - (2NO) 22mm Cutout Diameter 3 Positions
- RS Stock No.:
- 135-5654
- Distrelec Article No.:
- 300-21-173
- Mfr. Part No.:
- 3SU1150-2BL60-1NA0
- Manufacturer:
- Siemens
Subtotal (1 unit)*
PHP3,464.27
(exc. VAT)
PHP3,879.98
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP3,464.27 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 135-5654
- Distrelec Article No.:
- 300-21-173
- Mfr. Part No.:
- 3SU1150-2BL60-1NA0
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Selector Switch Type | Selector Switch Complete Unit | |
| Number of Positions | 3 | |
| Actuator Type | Short Handle | |
| Contact Configuration | 2NO | |
| IP Rating | IP66, IP67, IP69K | |
| Angle of Throw | 45° | |
| Maximum Current | 10A | |
| Series | SIRIUS ACT | |
| Cutout Diameter | 22mm | |
| Terminal Type | Screw | |
| Maximum AC Voltage | 500V | |
| Better World Product | Yes | |
| Maximum DC Voltage | 500V | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| Switch Actuation | Latching | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Selector Switch Type Selector Switch Complete Unit | ||
Number of Positions 3 | ||
Actuator Type Short Handle | ||
Contact Configuration 2NO | ||
IP Rating IP66, IP67, IP69K | ||
Angle of Throw 45° | ||
Maximum Current 10A | ||
Series SIRIUS ACT | ||
Cutout Diameter 22mm | ||
Terminal Type Screw | ||
Maximum AC Voltage 500V | ||
Better World Product Yes | ||
Maximum DC Voltage 500V | ||
Better World Claim Extended product life, Low carbon manufacture | ||
Switch Actuation Latching | ||
- COO (Country of Origin):
- DE

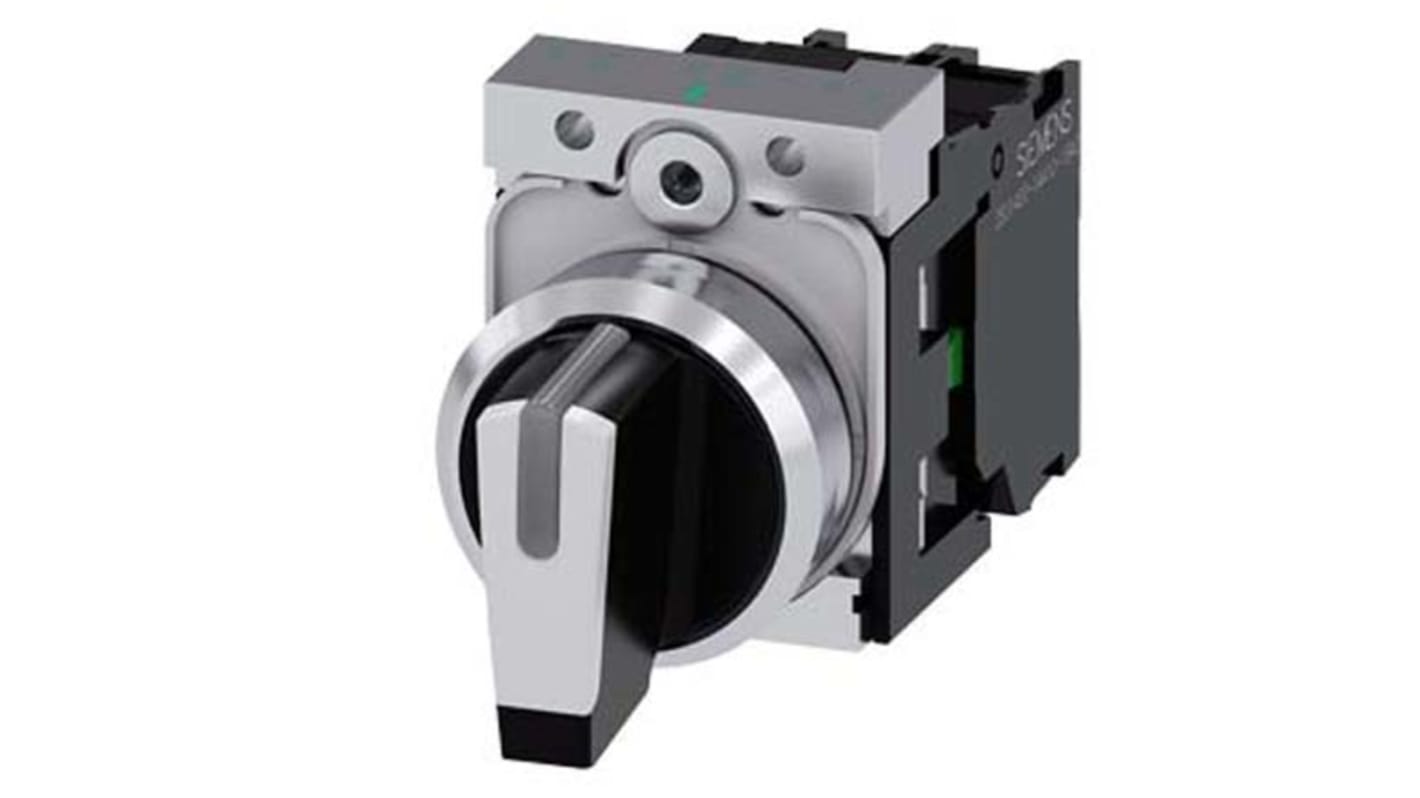

22 mm Selector Switch Complete Units, Metal (Shiny)
Siemens extremely IP69K rugged shiny metal selector switch complete units. On these new models, the electrical module is permanently installed and is only secured by the holder.
Easy installation
Suitable for use in extreme environments
No special tools required
Simple geometry for mounting holes
Connection to the most commonly used communication systems (PROFINET, AS-Interface, IO-Link)
Suitable for use in extreme environments
No special tools required
Simple geometry for mounting holes
Connection to the most commonly used communication systems (PROFINET, AS-Interface, IO-Link)
Standards
IEC 60947-1, EN 60947-1
IEC 60947-5-1, EN 60947-5-1
IEC 60947-5-1, EN 60947-5-1
