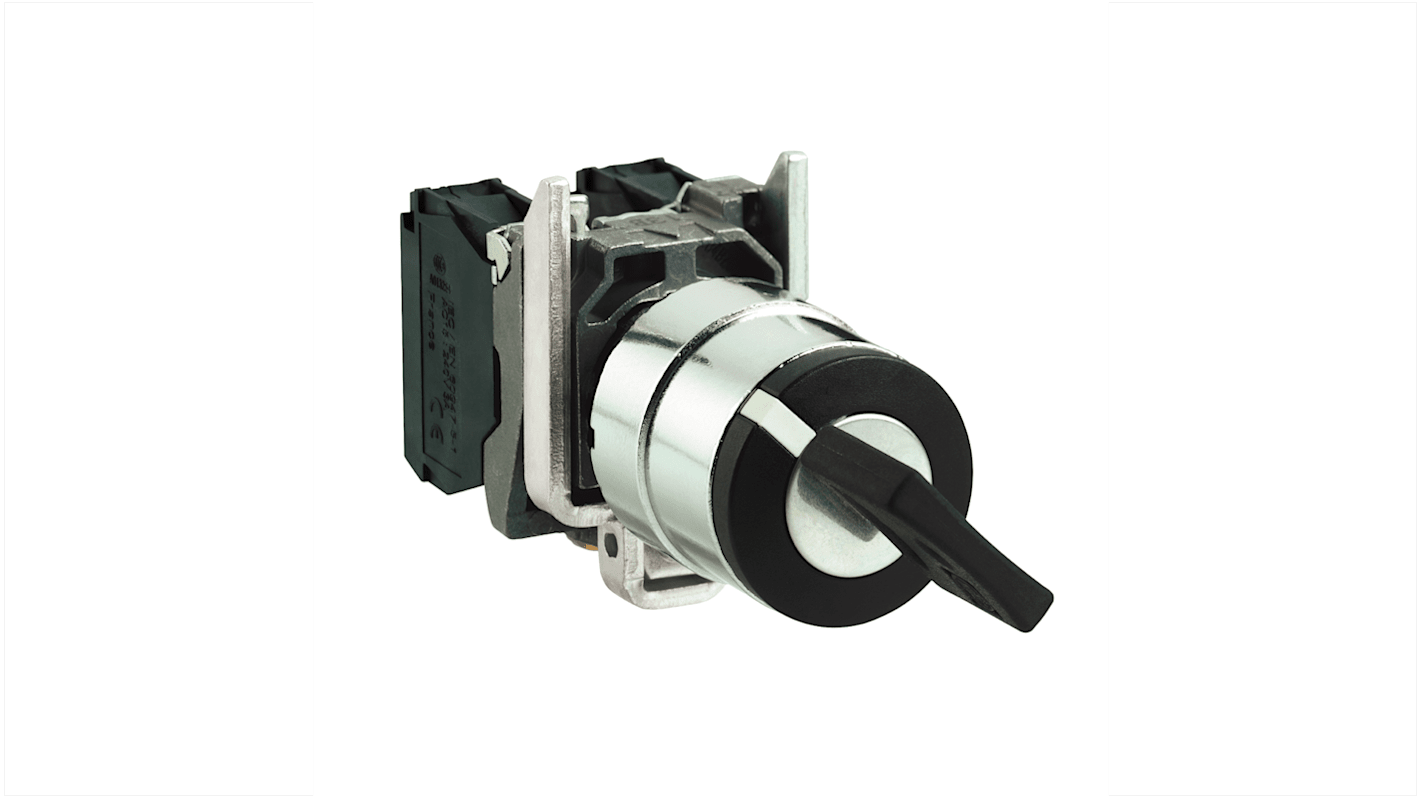

Schneider Electric Selector Switch - (1 NO) 22.5 mm Cutout Diameter 2 Positions
- RS Stock No.:
- 130-879
- Mfr. Part No.:
- XB4BG6114
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP8,172.02
(exc. VAT)
PHP9,152.66
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP8,172.02 |
*price indicative
- RS Stock No.:
- 130-879
- Mfr. Part No.:
- XB4BG6114
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Positions | 2 | |
| Product Type | Selector Switch | |
| Contact Configuration | 1 NO | |
| Housing Material | Zamak, Chrome Plated Metal | |
| IP Rating | IP66 | |
| Angle of Throw | 90 ° | |
| Series | Harmony XB4 | |
| Cutout Diameter | 22.5mm | |
| Terminal Type | Screw Clamp | |
| Standards/Approvals | UL, BV, CSA C22.2 No 14, DNV, CSA, JIS C8201-1, GL, UL 508, LROS, IEC 60947-5-4, REACh Regulation, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-5, EU RoHS Directive | |
| Depth | 86mm | |
| Height | 47mm | |
| Width | 30 mm | |
| Switch Operation | Spring Return | |
| Hazardous Area Certification | No | |
| Key Type | 520E | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Positions 2 | ||
Product Type Selector Switch | ||
Contact Configuration 1 NO | ||
Housing Material Zamak, Chrome Plated Metal | ||
IP Rating IP66 | ||
Angle of Throw 90 ° | ||
Series Harmony XB4 | ||
Cutout Diameter 22.5mm | ||
Terminal Type Screw Clamp | ||
Standards/Approvals UL, BV, CSA C22.2 No 14, DNV, CSA, JIS C8201-1, GL, UL 508, LROS, IEC 60947-5-4, REACh Regulation, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-5, EU RoHS Directive | ||
Depth 86mm | ||
Height 47mm | ||
Width 30 mm | ||
Switch Operation Spring Return | ||
Hazardous Area Certification No | ||
Key Type 520E | ||
- COO (Country of Origin):
- FR
The Schneider Electric Harmony XB4 Selector Switch is a premium quality device designed to provide efficient and reliable operation. With features such as chromium plated metal bezel material, key switch operator profile, and silver alloy contacts material, this selector switch offers high performance and durability for various applications.
Chromium plated metal bezel for a stylish and durable design
Key switch operator profile for easy and secure operation
Silver alloy contacts material ensures reliable electrical connections
Spring return mechanism for efficient switching action
