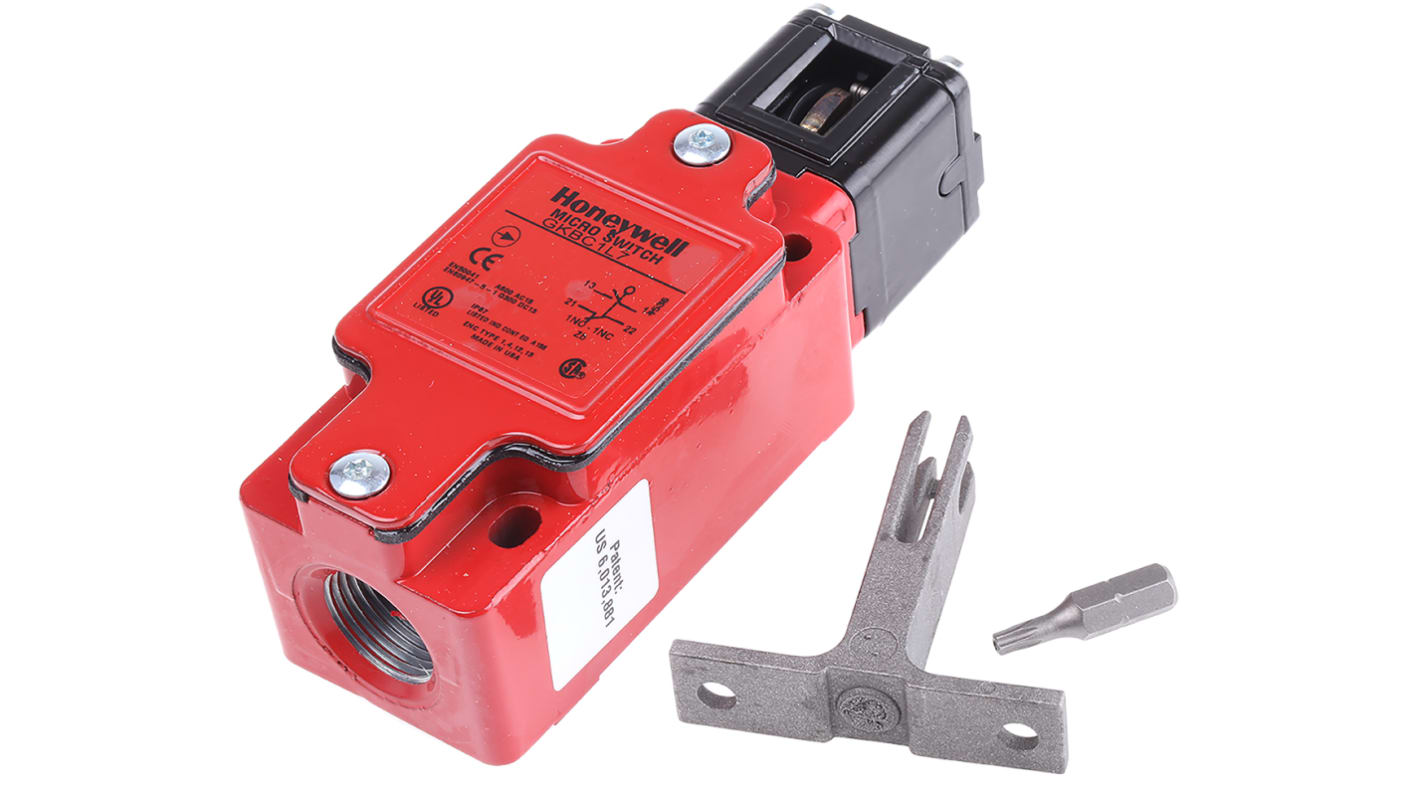

Honeywell GK Safety Interlock Switch, Keyed Actuator Included, Die Cast Zinc Epoxy Coated, Keyed
- RS Stock No.:
- 337-3799
- Mfr. Part No.:
- GKBC1L7
- Manufacturer:
- Honeywell
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
PHP29,287.28
(exc. VAT)
PHP32,801.75
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 6 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from June 10, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 5 | PHP29,287.28 |
| 6 - 11 | PHP28,408.66 |
| 12 + | PHP27,556.40 |
*price indicative
- RS Stock No.:
- 337-3799
- Mfr. Part No.:
- GKBC1L7
- Manufacturer:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Safety Interlock Switch | |
| Lock Style | Keyed | |
| Lock Type | Keyed | |
| Actuator Included | Yes | |
| Safety Contacts | 1 NO | |
| Housing Material | Die Cast Zinc Epoxy Coated | |
| Series | GK | |
| IP Rating | IP67 | |
| Switch Contact Current | 0.27, 1.2, 3A | |
| Contact AC Voltage | 600V ac | |
| Contact DC Voltage | 250V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Hazardous Area Certification | No | |
| Width | 42mm | |
| Standards/Approvals | CE, CSA, UL | |
| Length | 121.6mm | |
| Depth | 42.6mm | |
| Number of Head Directions | 2 | |
| Conduit Entry | 0.5-14 NPT | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Safety Interlock Switch | ||
Lock Style Keyed | ||
Lock Type Keyed | ||
Actuator Included Yes | ||
Safety Contacts 1 NO | ||
Housing Material Die Cast Zinc Epoxy Coated | ||
Series GK | ||
IP Rating IP67 | ||
Switch Contact Current 0.27, 1.2, 3A | ||
Contact AC Voltage 600V ac | ||
Contact DC Voltage 250V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Hazardous Area Certification No | ||
Width 42mm | ||
Standards/Approvals CE, CSA, UL | ||
Length 121.6mm | ||
Depth 42.6mm | ||
Number of Head Directions 2 | ||
Conduit Entry 0.5-14 NPT | ||
GK Series
Heavy duty construction for harsh industrial environments
Designed with a wide key entry tolerance, to accommodate drift in door alignment over the life of the machine,
Compliance with the relevant European directives is assured with this design. Each switch is available with either a straight or a 90° key.
Contact blocks have screw terminals enabling use of spade wiring terminals, complying with global safety requirements.
Galvanically isolated contacts permit wiring normally closed and normally open contacts to different loads and polarities.
Forced disconnect mechanism on normally closed contacts conforms to IEC 947-5-1.
Resistance to tampering
Built-in compensation for key misalignment
IP67, NEMA 4 sealed enclosure - withstands high pressure washdown
Typical applications include hinged and sliding guard doors, protective covers and enclosures on machine tools, packaging machinery, conveyors, elevators, cranes, hoists and lifts and construction machinery equipment
Dimensions: H42.6mm, W30mm, D121.6mm
Interlock Switch
Approvals
UL Listed, CSA Certified
