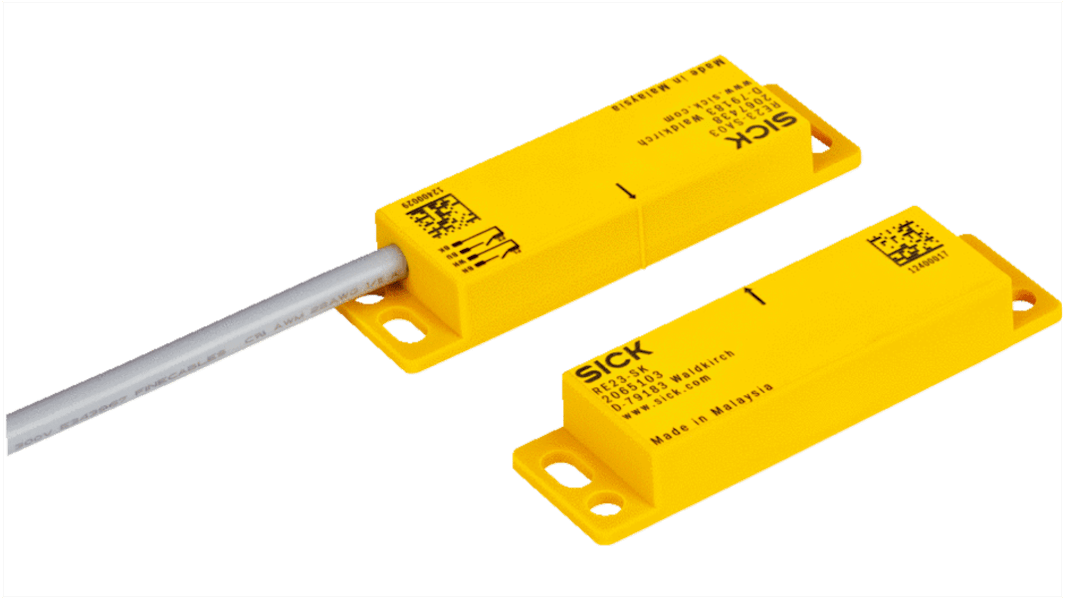

SICK RE23 Safety Interlock Switch, Magnet, ABS, Magnet

RS Stock No.:: 285-8975
Mfr. Part No.:: RE23-SA10
Manufacturer:: SICK

Subtotal (1 unit)*

PHP8,089.92

(exc. VAT)

PHP9,060.71

(inc. VAT)

FREE delivery for orders over ₱5,000.00

Limited stock

Plus 8 left, shipping from November 02, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP8,089.92

*price indicative

RS Stock No.:: 285-8975
Mfr. Part No.:: RE23-SA10
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Safety Interlock Switch
	Lock Style	Magnet
	Lock Type	Magnet
	Actuator Included	No
	Safety Contacts	2
	Housing Material	ABS
	Series	RE23
	IP Rating	IP67
	Switch Contact Current	100mA
	Contact AC Voltage	230V ac
	Contact DC Voltage	30V dc
	Minimum Operating Temperature	-30°C
	Hazardous Area Certification	No
	Maximum Operating Temperature	60°C
	Length	88mm
	Width	25mm
	Standards/Approvals	IEC 60529
	Depth	13mm
	Number of Head Directions	3

	Select all
	Brand SICK
	Product Type Safety Interlock Switch
	Lock Style Magnet
	Lock Type Magnet
	Actuator Included No
	Safety Contacts 2
	Housing Material ABS
	Series RE23
	IP Rating IP67
	Switch Contact Current 100mA
	Contact AC Voltage 230V ac
	Contact DC Voltage 30V dc
	Minimum Operating Temperature -30°C
	Hazardous Area Certification No
	Maximum Operating Temperature 60°C
	Length 88mm
	Width 25mm
	Standards/Approvals IEC 60529
	Depth 13mm
	Number of Head Directions 3

COO (Country of Origin):: MY

SICK RE23 Series Safety Interlock Switch, IP67, 2 safety contacts - RE23-SA10

This safety interlock switch provides non-contact, magnetically actuated guard monitoring for industrial machinery. Designed for integration with safety logic, it operates across a broad ambient range and is suited to environments requiring sealed protection. The device signals via reed outputs and requires an external safety controller to perform fault detection and diagnostics.

Features and Benefits:

• IP67 protection for operation in wet or dusty conditions
• 2 safety contacts for Basic guarded-position signalling
• Reed contact outputs supporting ≤30V DC switching
• Operating temperature range from -30°C to 60°C
• Low coding level magnet actuation for simple alignment

Applications

• Suitable for guarded access monitoring on conveyor lines
• Ideal for machine doors with non-contact actuation
• Used with safety relays for series Type 4 arrangements
• Can be used for simple presence detection in assembly cells

What type of output does the device provide?

It uses reed contacts delivering switching currents up to 100mA and switching voltages up to 30V DC.

How is fault management handled for this switch?

The unit lacks internal fault detection so the connected safety-related logic unit must detect faults and determine safe-state behaviour.

What cable and connection details are provided for installation?

The product is supplied with a 10m PVC-sheathed cable, 5.8mm diameter, 0.25mm² conductors with copper cores

minimum bend radius >12x cable diameter for fixed installation.

Which mechanical and environmental resistances are specified?

It meets vibration resistance of 10Hz to 55Hz at 1mm and shock resistance of 30g for 11 MS under relevant standards.
