SICK MLP1 Safety Interlock Switch, Power Actuator Included, Valox

RS Stock No.:: 285-8871
Mfr. Part No.:: MLP1-SMMF0AC
Manufacturer:: SICK

Subtotal (1 unit)*

PHP38,875.46

(exc. VAT)

PHP43,540.52

(inc. VAT)

FREE delivery for orders over ₱5,000.00

Limited stock

Plus 4 left, shipping from November 02, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP38,875.46

*price indicative

RS Stock No.:: 285-8871
Mfr. Part No.:: MLP1-SMMF0AC
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Lock Style	Power
	Product Type	Safety Interlock Switch
	Actuator Included	Yes
	Housing Material	Valox
	Series	MLP1
	Switch Contact Current	100mA
	Contact AC Voltage	230V ac
	Contact DC Voltage	24V dc
	IP Rating	IP67
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	55°C
	Hazardous Area Certification	No
	Standards/Approvals	IEC 60529
	Length	120mm
	Width	60mm
	Depth	38.5mm

	Select all
	Brand SICK
	Lock Style Power
	Product Type Safety Interlock Switch
	Actuator Included Yes
	Housing Material Valox
	Series MLP1
	Switch Contact Current 100mA
	Contact AC Voltage 230V ac
	Contact DC Voltage 24V dc
	IP Rating IP67
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 55°C
	Hazardous Area Certification No
	Standards/Approvals IEC 60529
	Length 120mm
	Width 60mm
	Depth 38.5mm

COO (Country of Origin):: MY

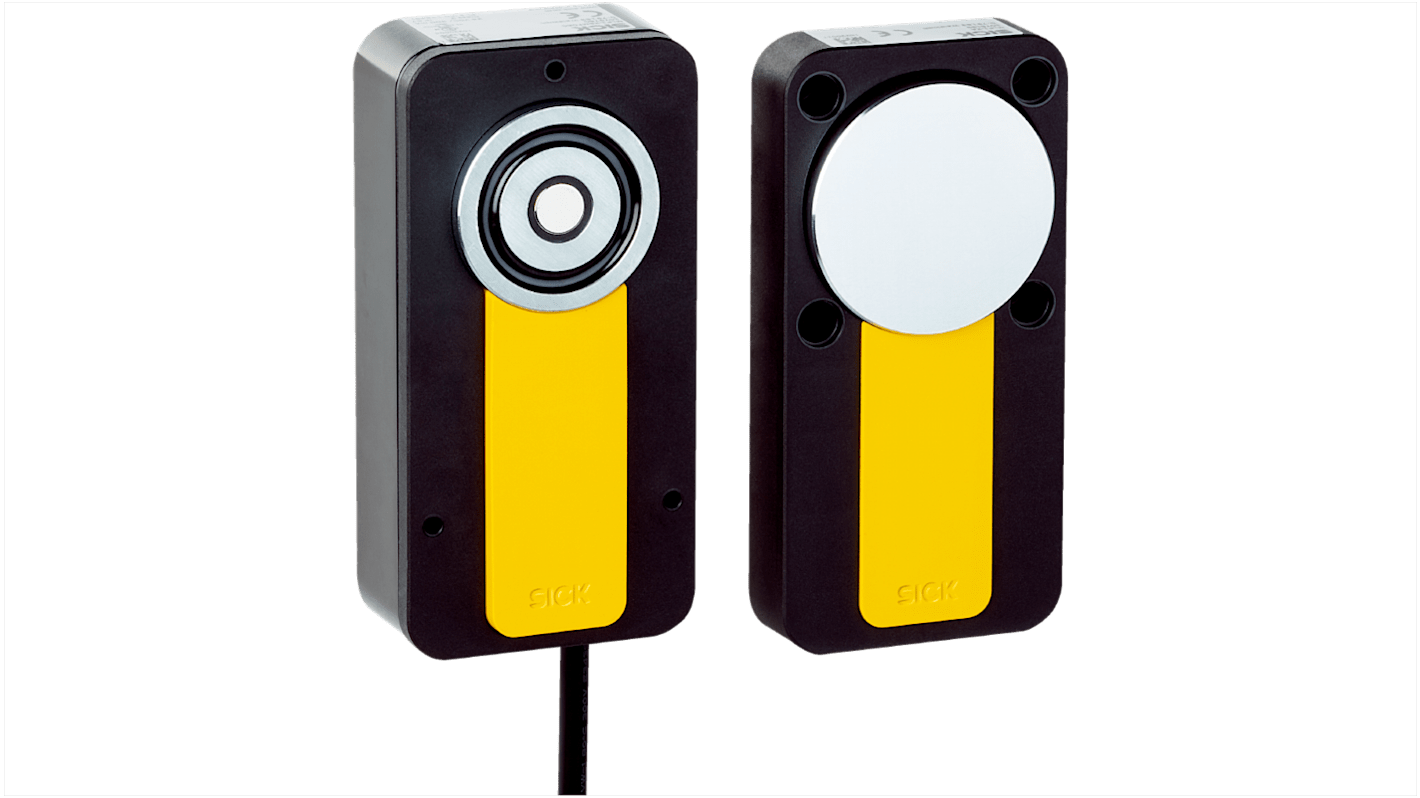

SICK MLP1 Series Safety Interlock Switch, 120mm Length, Valox Housing - MLP1-SMMF0AC

This safety interlock switch is designed to monitor access points and prevent hazardous machinery operation when guards are open. It uses RFID sensing with a power-to-lock mechanism and provides self-monitoring semiconductor outputs for safety circuits. The unit operates from 24V DC supply and includes an actuator. It is suited to industrial environments where a sealed, Compact interlock is required.

Features and Benefits:

• SIL 3 safety integrity level for high-risk applications
• Category 4, PL e performance for Advanced safety control
• Power-to-lock mechanism providing 500N to 550N locking force
• IP67 sealed enclosure to protect against dust and water
• OSSD outputs limited to 100mA for safe integration

Applications

• Suitable for guarding on automated production lines
• Ideal for cascade connections with diagnostic capability
• Used with safe evaluation units in series connections
• Can be used for process protection where access control is required

What supply voltages does it require?

The sensor and magnet operate from 24V DC with specified tolerance ranges for individual and cascade use.

How are diagnostics and series connections handled?

It supports connection via T-connector without diagnostics or Flexi Loop for diagnostic-capable cascades and uses M12 cabling.

What environmental limits apply to operation?

It functions between -20°C and +55°C and withstands vibration and shock ratings per the specified standards.

What are the signalling and timing behaviours?

The device provides self-monitoring OSSD outputs, a response time of 50 MS, release time of 100 MS and a switch-on time of 2.5 s.
