Eaton LS4 ZB Safety Interlock Switch, Plastic
- RS Stock No.:
- 181-1206
- Mfr. Part No.:
- 106875 LS-S02-ZB/X
- Manufacturer:
- Eaton
Subtotal (1 unit)*
PHP5,921.15
(exc. VAT)
PHP6,631.69
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 11 unit(s) shipping from April 27, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP5,921.15 |
*price indicative
- RS Stock No.:
- 181-1206
- Mfr. Part No.:
- 106875 LS-S02-ZB/X
- Manufacturer:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Safety Interlock Switch | |
| Actuator Included | No | |
| Safety Contacts | 2 | |
| Housing Material | Plastic | |
| Series | LS4 ZB | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP65, IP66 | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Width | 96mm | |
| Standards/Approvals | IEC/EN 60947 | |
| Depth | 33.4mm | |
| Length | 30mm | |
| Number of Head Directions | 1 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Safety Interlock Switch | ||
Actuator Included No | ||
Safety Contacts 2 | ||
Housing Material Plastic | ||
Series LS4 ZB | ||
Minimum Operating Temperature -25°C | ||
IP Rating IP65, IP66 | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Width 96mm | ||
Standards/Approvals IEC/EN 60947 | ||
Depth 33.4mm | ||
Length 30mm | ||
Number of Head Directions 1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

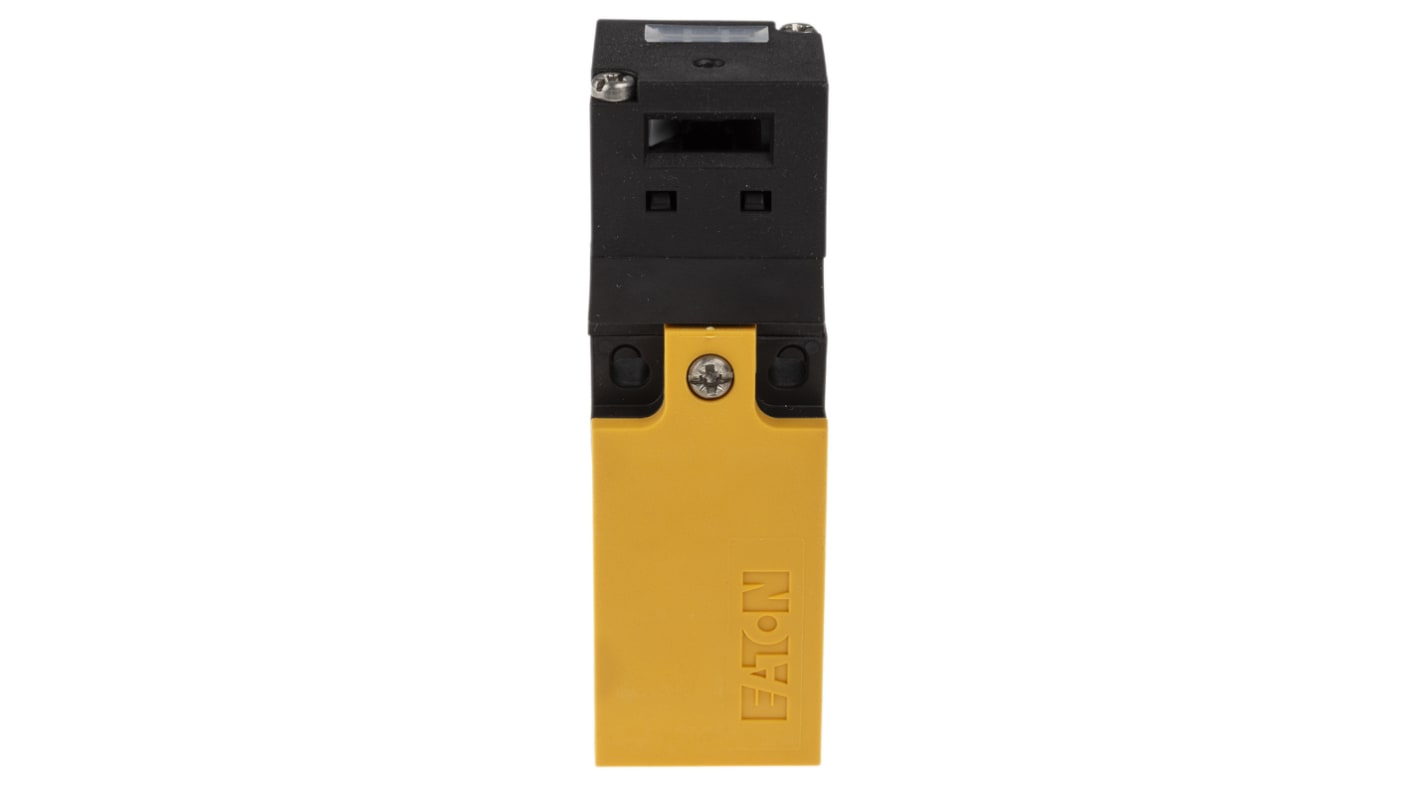

Eaton Safety Interlock Switch, M20 Connection, 415V AC / 220V DC Maximum Voltage - LS4 ZB - 106875 LS-S02-ZB/X
Do you want to be certain that your machine doors will stay closed when your equipment is operating? Turn to this safety interlock switch from Eaton. The compact device keeps doors securely shut on high-inertia rotating machines and other equipment that remains hazardous after the power has stopped. The positive-force opening mechanism adds an extra level of safety by keeping contacts open when there's a short circuit. The unit is easily mounted using standard M20 screw terminal sockets. Thanks to insulated housing, all contacts are safely sealed against water and dust.
Features & Benefits
• Actuator can be mounted in a vertical or horizontal position to suit your setup's needs
• Operating head can be rotated 90° to best fit your equipment
• Working temperature range of -25°C to +70°C for use in demanding environments
• Compact dimensions of 96 (width) x 30 (length) x 33.4mm (height) to save space
Can this safety switch be used around water?
The switch is rated IP66, which means it’s protected against heavy seas and powerful jets of water. It's also completely sealed against dust, so you can rely on it in contaminated environments.
Note
Eaton formerly known as Moeller
