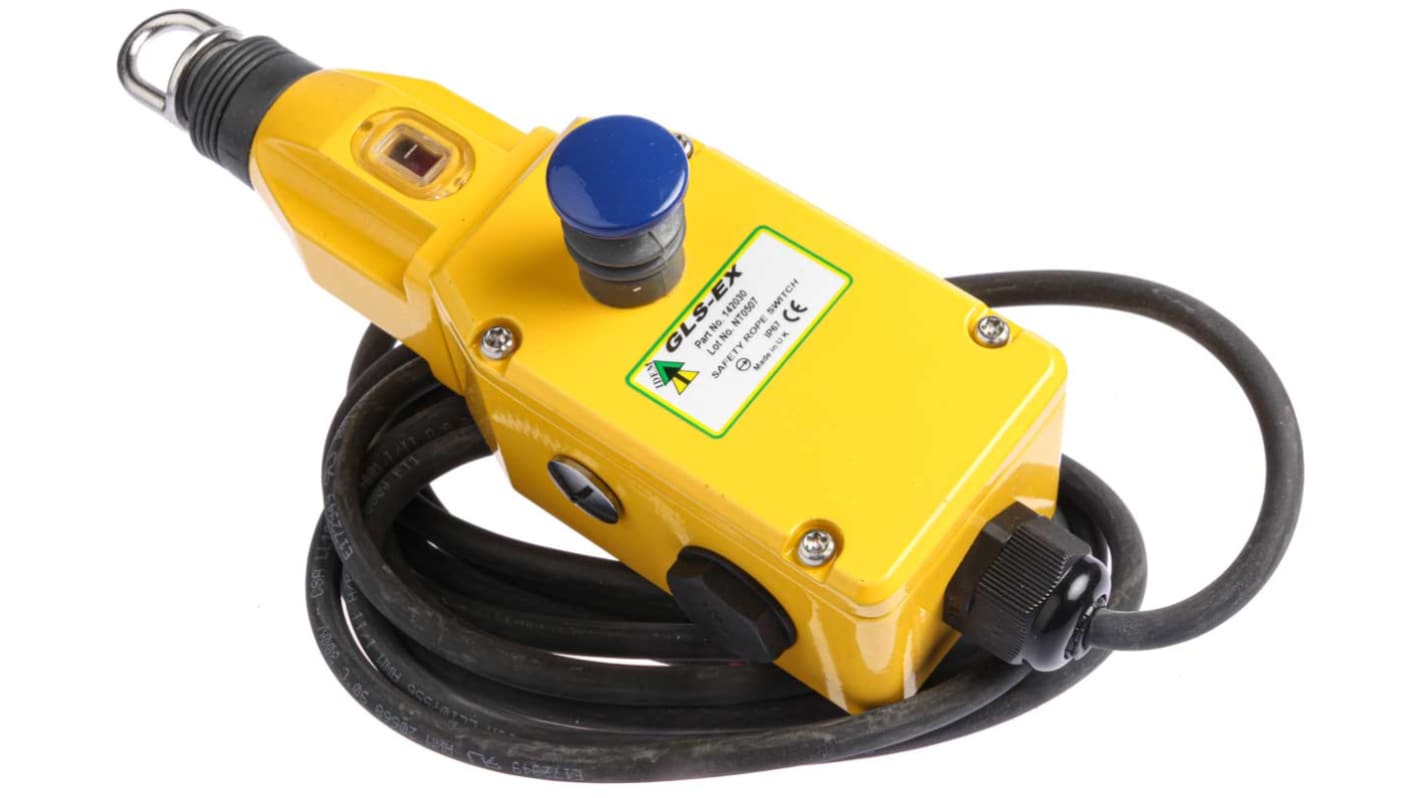

IDEM GLS-Ex Rope Pull Switch 239 mm, Straight

RS Stock No.:: 826-4132
Mfr. Part No.:: 142030
Manufacturer:: IDEM

IDEM GLS-Ex Rope Pull Switch 239 mm, Straight

Subtotal (1 unit)*

PHP34,552.90

(exc. VAT)

PHP38,699.25

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP34,552.90

*price indicative

RS Stock No.:: 826-4132
Mfr. Part No.:: 142030
Manufacturer:: IDEM

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	IDEM
	Product Type	Rope Pull Switch
	Mounting Orientation	Straight
	Indicator Type	Flashing Red, LED Green, LED Steady Green, Steady Red
	IP Rating	IP67
	Number of Cable Entries	4
	Series	GLS-Ex
	Contact DC Voltage	250V dc
	Contact AC Voltage	250V ac
	E-Stop Button	Yes
	Reset Button	Yes
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	80°C
	Width	63 mm
	Standards/Approvals	No
	Length	239mm
	Depth	54mm
	Housing Material	Die Cast Aluminium
	Hazardous Area Certification	ATEX
	Conduit Entry	M20
	Mechanical Life	1500000Operations

	Select all
	Brand IDEM
	Product Type Rope Pull Switch
	Mounting Orientation Straight
	Indicator Type Flashing Red, LED Green, LED Steady Green, Steady Red
	IP Rating IP67
	Number of Cable Entries 4
	Series GLS-Ex
	Contact DC Voltage 250V dc
	Contact AC Voltage 250V ac
	E-Stop Button Yes
	Reset Button Yes
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 80°C
	Width 63 mm
	Standards/Approvals No
	Length 239mm
	Depth 54mm
	Housing Material Die Cast Aluminium
	Hazardous Area Certification ATEX
	Conduit Entry M20
	Mechanical Life 1500000Operations

COO (Country of Origin):: GB

IDEM Rope Pull Switch

The IDEM GLS-Ex safety rope pull switch has 2NC/2NO contact configuration. It is designed to be mounted on machines and sections of conveyors which cannot be protected by guards and unlike emergency stop pushbuttons. This can be activated from any point along the length of the rope pull to provide robust emergency stop protection. In combination with a dual-channel safety-monitoring relay, this safety rope switch can be used as an emergency stop device and monitored. This product has a guardian line, which has a positive mechanical linkage between the switch contacts and the wire rope of 80m, as well as wire breakage monitoring. Once the rope is pulled, anywhere along its length, the safety contacts are positively opened and the auxiliary contacts are closed. This switches are mechanically latched and can only be returned to the operational condition by pressing the blue reset button. The switch has an electrical current rating of 2.5A at a voltage rating of 250VAC/VDC.

Features and Benefits

Explosion proof contact blocks

Contact blocks conform to European harmonized standard

Used in European Zone 1, 2, 21, 22 environments (Gas and dust)

Switch mechanism will latch the instant the safety contacts open

Yellow painted die cast aluminium housing

Size of cable entries is M20

Applications

Oil

Petrochemical

Pharmaceutical

Food processing

Packaging

Certifications

IEC 60947-5-1

IEC 60947-5-5

EN 954-1

EN 62061

UL 508

ISO 13850

ISO 13849-1

IP97 rated
