Siemens 3SE7 Cable Switch 171 mm, Straight, 1 NO/2 NC
- RS Stock No.:
- 153-398
- Mfr. Part No.:
- 3SE7150-1BH00
- Manufacturer:
- Siemens
Subtotal (1 unit)*
PHP21,479.13
(exc. VAT)
PHP24,056.63
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from May 04, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP21,479.13 |
*price indicative
- RS Stock No.:
- 153-398
- Mfr. Part No.:
- 3SE7150-1BH00
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Cable Switch | |
| Mounting Orientation | Straight | |
| Indicator Type | Status Display | |
| Contact Configuration | 1 NO/2 NC | |
| IP Rating | IP65 | |
| Number of Cable Entries | 2 | |
| Series | 3SE7 | |
| E-Stop Button | Yes | |
| Contact AC Voltage | 240V ac | |
| Contact Current | 3A | |
| Contact DC Voltage | 250V dc | |
| Reset Button | Yes | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EAC, CE, RoHS, UKCA, CCC, REACH, WEEE | |
| Width | 52mm | |
| Depth | 54mm | |
| Length | 171mm | |
| Housing Material | Metal | |
| Hazardous Area Certification | No | |
| Conduit Entry | 2 x (M20 x 1.5) | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Cable Switch | ||
Mounting Orientation Straight | ||
Indicator Type Status Display | ||
Contact Configuration 1 NO/2 NC | ||
IP Rating IP65 | ||
Number of Cable Entries 2 | ||
Series 3SE7 | ||
E-Stop Button Yes | ||
Contact AC Voltage 240V ac | ||
Contact Current 3A | ||
Contact DC Voltage 250V dc | ||
Reset Button Yes | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EAC, CE, RoHS, UKCA, CCC, REACH, WEEE | ||
Width 52mm | ||
Depth 54mm | ||
Length 171mm | ||
Housing Material Metal | ||
Hazardous Area Certification No | ||
Conduit Entry 2 x (M20 x 1.5) | ||
Mechanical Life 100000Cycles | ||
- COO (Country of Origin):
- DE

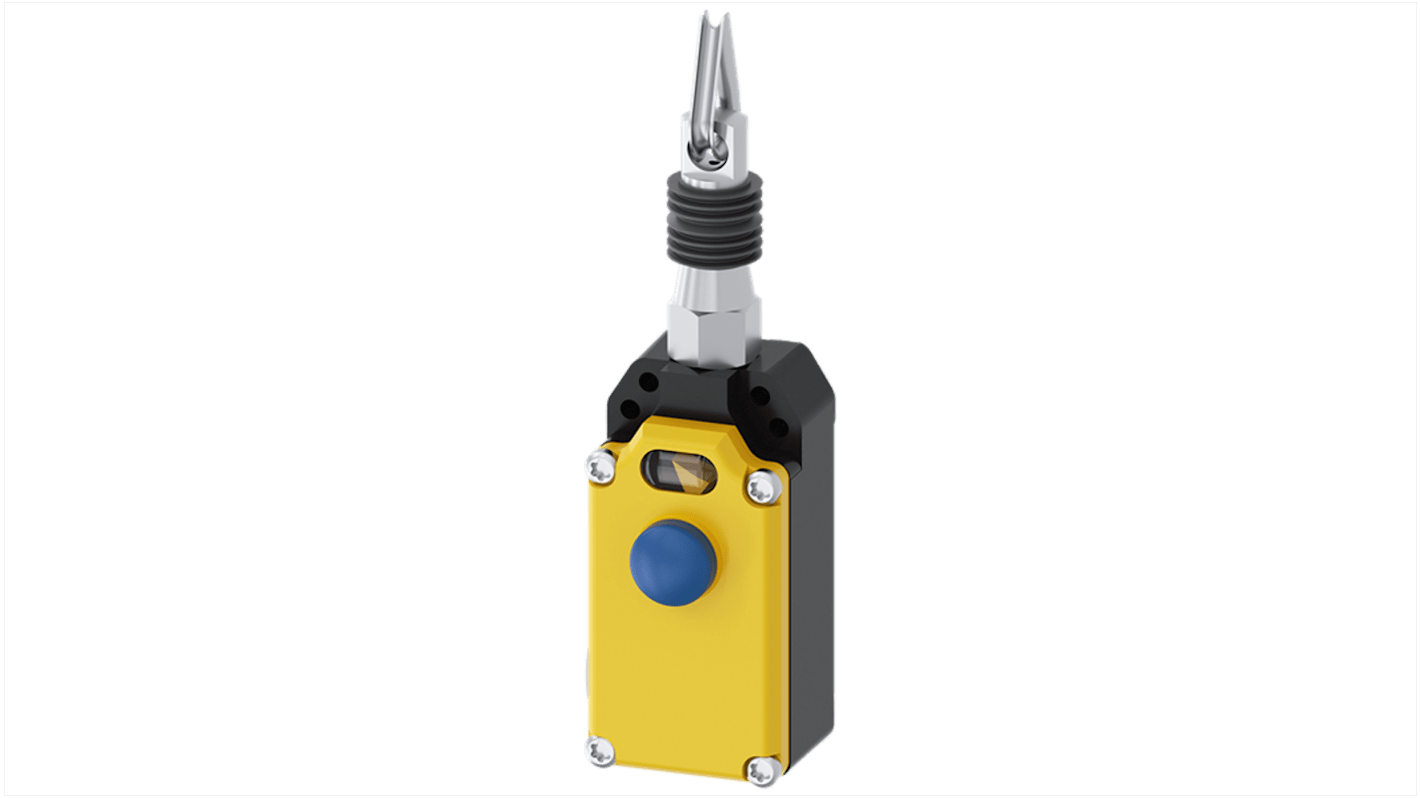

The Siemens cable operated switch, housed in a robust metal enclosure with a striking yellow cover, is designed for safety and usability in demanding environments. Engineered to offer an emergency stop function, it guarantees peace of mind during operation, accommodating cable lengths of up to 20 metres. The switch's high mechanical service life ensures reliable performance across extensive usage, while its exceptional insulation and surge voltage ratings provide enhanced durability. With an IP65 protection class, this device is well suited for industrial applications, making it a vital component for ensuring safety standards. Versatile in function and design, it's an ideal choice for systems requiring quick and effective shutoff mechanisms.
Operates effectively across a broad ambient temperature range
Screw terminal connections simplify installation and maintenance
Compatibility with various conductor cross sections enhances versatility
Status display function provides clear operational feedback
B10 value underlines reliability for high demand applications
