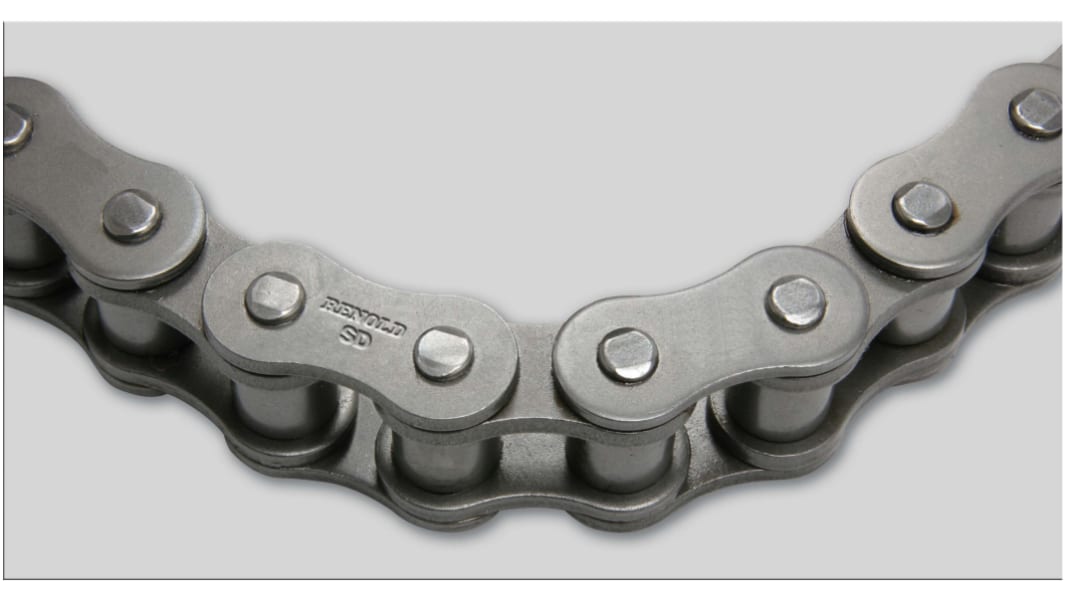

Renold 06B-1 1 Roller Chain, 5 m, 13.2 mm, Renold SD, BS

View all Roller Chains
Bulk discount available

Subtotal (1 unit)*

PHP3,040.49

(exc. VAT)

PHP3,405.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 62 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 4PHP3,040.49
5 - 24PHP2,949.26
25 +PHP2,860.79

*price indicative

RS Stock No.:
146-3746
Mfr. Part No.:
SD06B1X5M
Manufacturer:
Renold
Find similar products by selecting one or more attributes.
Select all

Brand

Renold

Product Type

Roller Chain

Chain Type

06B-1

Pitch

9.525mm

Number of Strands

1

Material

Steel

Series

Renold SD

Chain Standard

BS

Length

5m

Pin Length

13.2mm

Plate Height

8.2mm

Roller Diameter

6.35mm

Chain Weight

0.4kg/m

Width Between Roller Link Plates

5.72mm

Standards/Approvals

British/European

RoHS Status: Not Applicable

European (BS) Standard/ISO 606


Range of Renold SD economy Simplex roller chain, for standard duty applications. Conforms to European (BS) standards

Chain Standards


European standard chains are covered by DIN8187 and ISO606 standards. There are 3 versions:

• Simplex;• Duplex;• Triplex

Pitch size varies between 4 mm to 114.3 mm, with the chain links having a large pin diameter. The chains therefore have better wear resistance due to the bearing area being of a greater size.

The ISO standard has a simple numbering system:

• The first two digits are the pitch size and are measured in 1/16 s of an inch, for example 08 = 8/16;• “B” indicates European Standard;• The suffix indicates the number of strands in a chain
