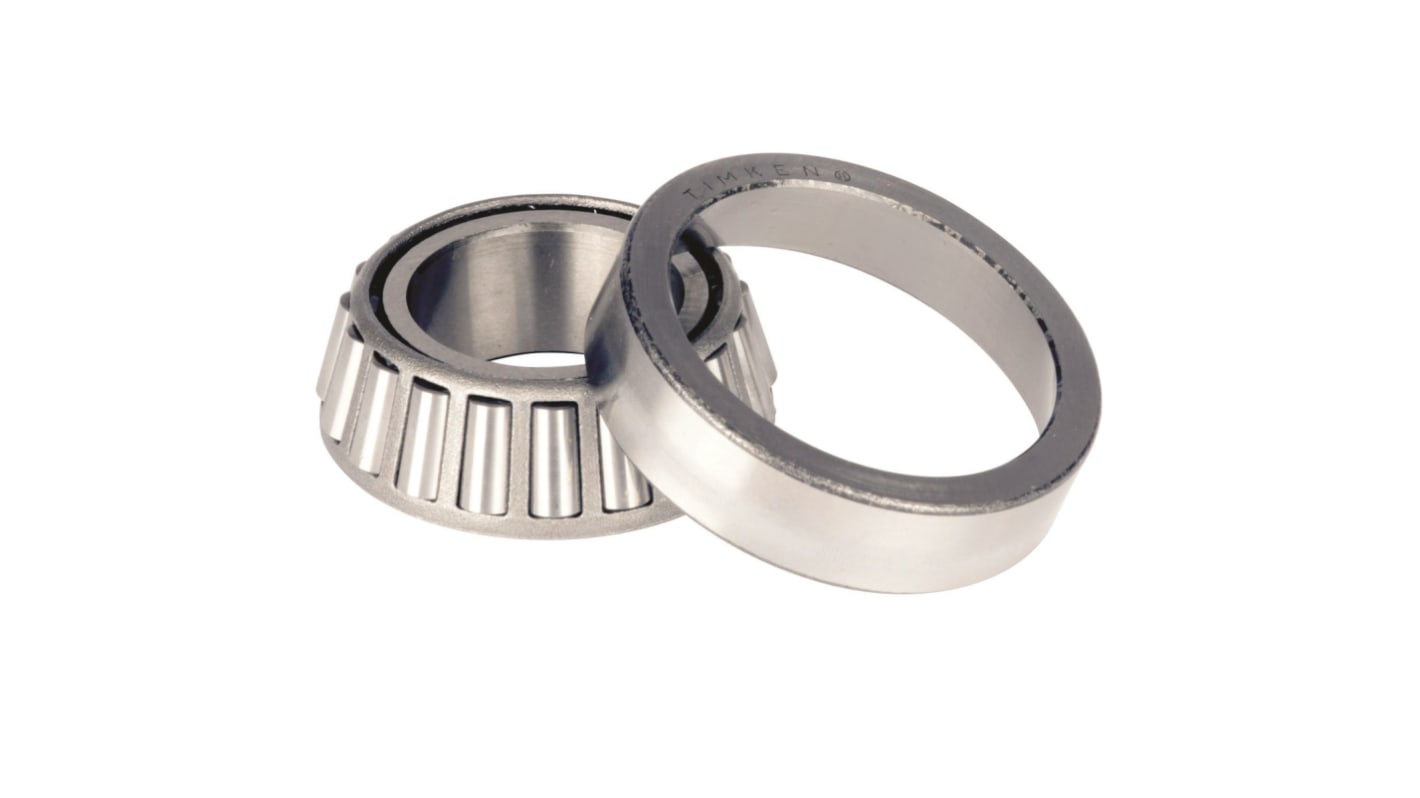

Timken 32306 Taper 30 mm ID Metric Roller Bearing, 72 mm OD
- RS Stock No.:
- 193-1033
- Mfr. Part No.:
- 32306
- Manufacturer:
- Timken
Bulk discount available
Subtotal (1 unit)*
PHP3,334.08
(exc. VAT)
PHP3,734.17
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 12 | PHP3,334.08 |
| 13 - 24 | PHP3,234.05 |
| 25 + | PHP3,137.04 |
*price indicative
- RS Stock No.:
- 193-1033
- Mfr. Part No.:
- 32306
- Manufacturer:
- Timken
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Timken | |
| Product Type | Metric Roller Bearing | |
| Inside Diameter | 30 mm | |
| Bore Type | Tapered | |
| Cone Width | 28.75mm | |
| Number of Rows | 1 | |
| Cup Width | 23mm | |
| Static Load Rating | 89.8kN | |
| Standards/Approvals | No | |
| Limiting Speed | 10000rpm | |
| End Type | Shielded | |
| Bearing Dynamic Load Rating | 104 kN | |
| Outside Diameter | 72 mm | |
| Bearing Type | Taper | |
| Select all | ||
|---|---|---|
Brand Timken | ||
Product Type Metric Roller Bearing | ||
Inside Diameter 30 mm | ||
Bore Type Tapered | ||
Cone Width 28.75mm | ||
Number of Rows 1 | ||
Cup Width 23mm | ||
Static Load Rating 89.8kN | ||
Standards/Approvals No | ||
Limiting Speed 10000rpm | ||
End Type Shielded | ||
Bearing Dynamic Load Rating 104 kN | ||
Outside Diameter 72 mm | ||
Bearing Type Taper | ||
- COO (Country of Origin):
- FR
Timken tapered roller bearing components are precisely designed to manage both axial and radial loads.
Metric tapered roller bearing matched assemblies consist of two single-row bearings (type TS) with individually matched spacers that are set at the factory to pre-determined dimensions and tolerances.
The standard outer ring spacer is designed with lubricationholes to allow for lubricant flow into both bearing rows.
Matched bearing assemblies are supplied ready-to-fit into customer applications, with a unique serial number marked on spacers and bearing components for easy identification.
• Pre-set clearance simplifies mounting
• Higher productivity and greater uptime through precise setting
• High axial and radial load carrying capacity
• Axial loads accommodated in both directions
