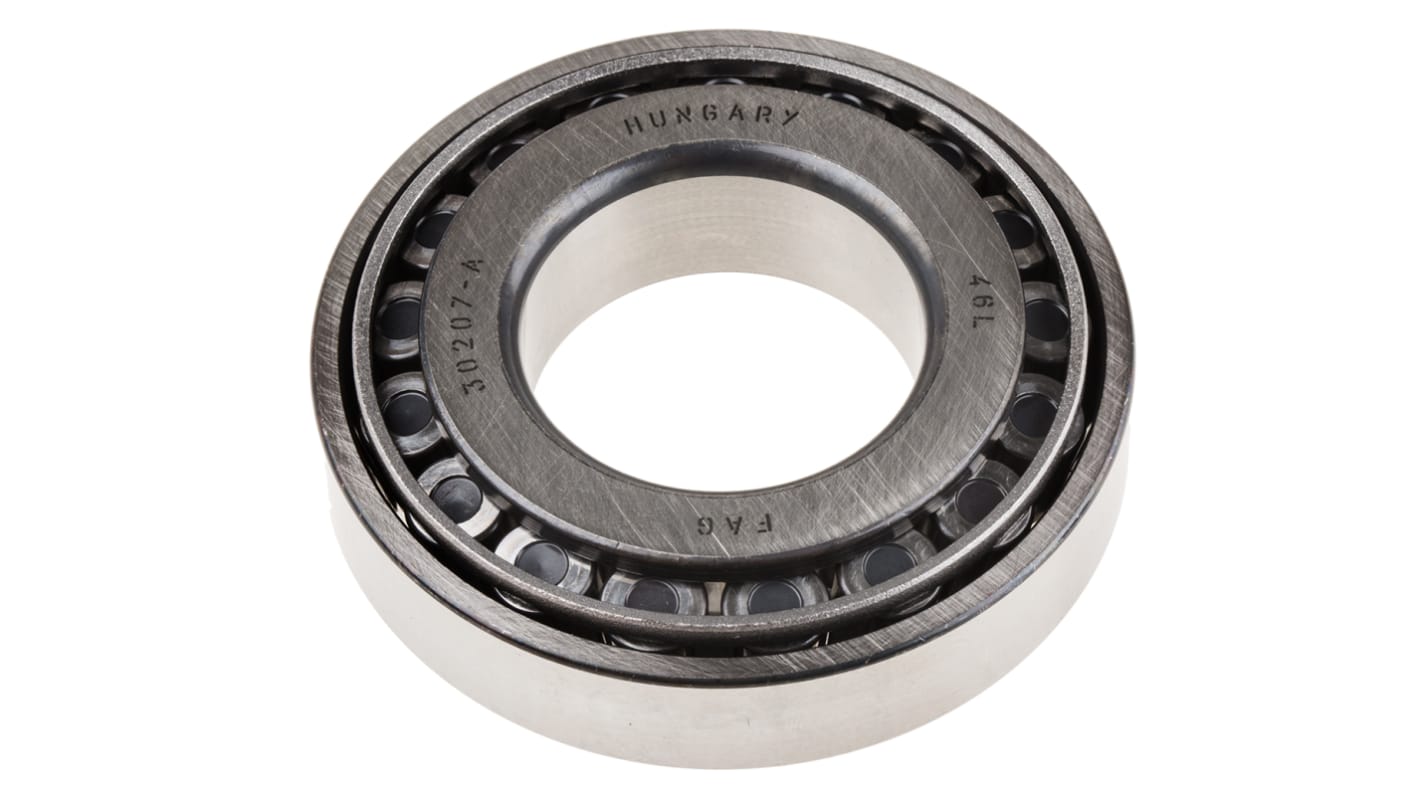

FAG 30207-XL Taper 35 mm ID Roller Bearing, 72 mm OD
- RS Stock No.:
- 137-1485
- Mfr. Part No.:
- 30207-XL
- Manufacturer:
- FAG
Bulk discount available
Subtotal (1 unit)*
PHP1,913.84
(exc. VAT)
PHP2,143.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 12 | PHP1,913.84 |
| 13 - 24 | PHP1,856.41 |
| 25 + | PHP1,800.72 |
*price indicative
- RS Stock No.:
- 137-1485
- Mfr. Part No.:
- 30207-XL
- Manufacturer:
- FAG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 35 mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Standards/Approvals | No | |
| Limiting Speed | 10700rpm | |
| Maximum Speed - Oil | 10700rpm | |
| Maximum Speed - Grease | 8000rpm | |
| End Type | Sealed | |
| Outside Diameter | 72 mm | |
| Cone Width | 18.25mm | |
| Number of Rows | 1 | |
| Bearing Dynamic Load Rating | 54 KN | |
| Static Load Rating | 59000N | |
| Bearing Type | Taper | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 35 mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Standards/Approvals No | ||
Limiting Speed 10700rpm | ||
Maximum Speed - Oil 10700rpm | ||
Maximum Speed - Grease 8000rpm | ||
End Type Sealed | ||
Outside Diameter 72 mm | ||
Cone Width 18.25mm | ||
Number of Rows 1 | ||
Bearing Dynamic Load Rating 54 KN | ||
Static Load Rating 59000N | ||
Bearing Type Taper | ||
Tapered Roller Bearings
FAG by Schaeffler tapered roller bearings feature a high radial and axial load carrying capacity and a large usable speed range. They are efficient at supporting forces and ensure a precise and rigid shaft guidance system due to the large effective distance between the bearings. They are adjustable, can be dismantled, and are therefore easy to fit.
Features and Benefits
• Increase in dynamic load ratings of up to 20%;• Lower operating costs;• Reduced maintenance due to improved lubrication;• Lower heat generation;• Less noise;• Operating temperature: -30 °C to +120 °C
Product Application Information
Tapered roller bearings can support axial loads from one direction and high radial loads. They are normally axially adjusted against another bearing fitted in a mirror image arrangement.
Suffixes
A - Modified internal construction;X - External dimensions matched to international standards
