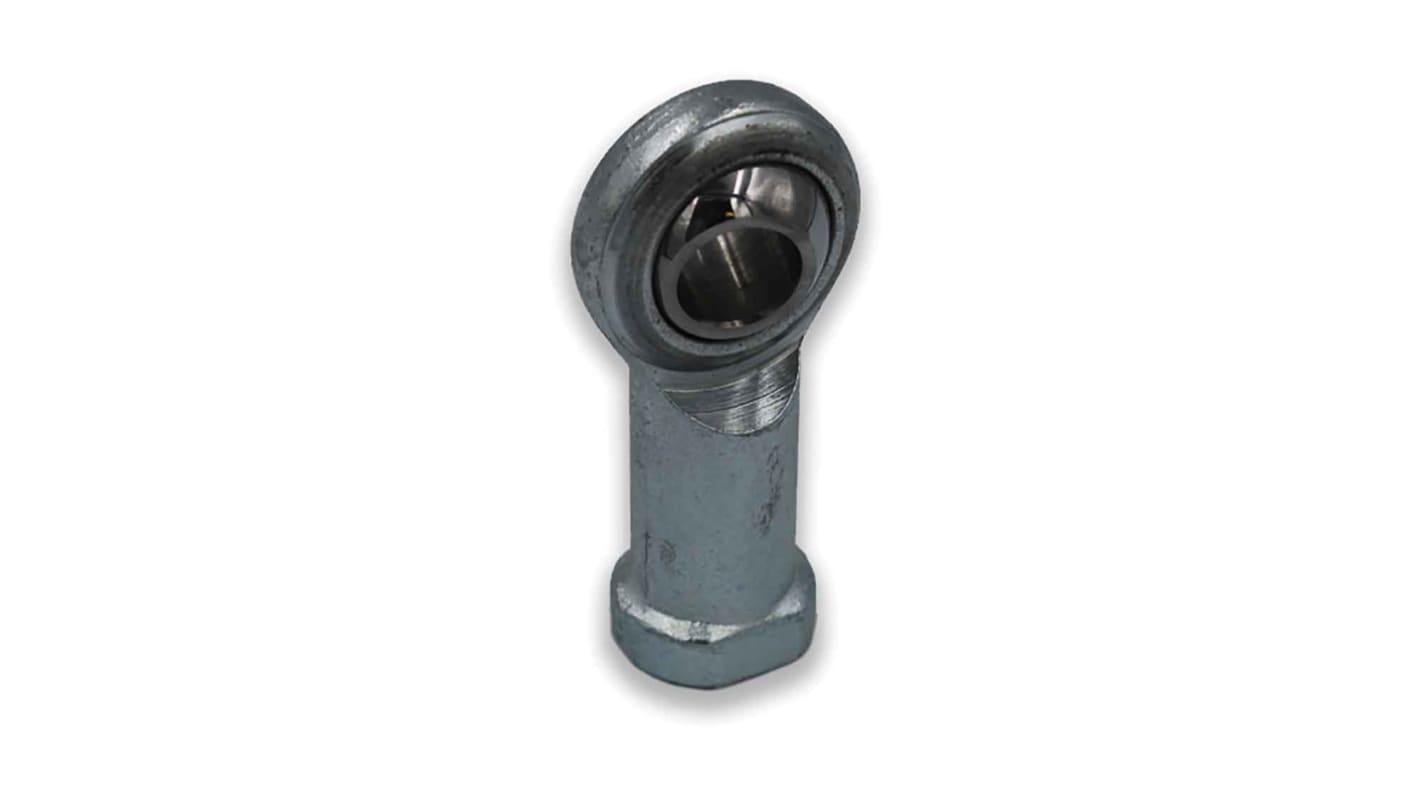

LDK M5 Female Carbon Steel Rod End, 5 mm Bore Metric
- RS Stock No.:
- 185-2500
- Mfr. Part No.:
- PHS 5EC
- Manufacturer:
- LDK
Bulk discount available
Subtotal (1 unit)*
PHP1,125.86
(exc. VAT)
PHP1,260.96
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 22 unit(s) shipping from February 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP1,125.86 |
| 5 - 9 | PHP1,094.30 |
| 10 + | PHP1,077.76 |
*price indicative
- RS Stock No.:
- 185-2500
- Mfr. Part No.:
- PHS 5EC
- Manufacturer:
- LDK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LDK | |
| Product Type | Rod End | |
| Connection Size | M5 Female | |
| Bore Size | 5 mm | |
| Material | Carbon Steel | |
| Dynamic Load Rating | 3.3kN | |
| Static Load Rating | 6.2kN | |
| Thread Standard | Metric | |
| Outside Diameter | 16 mm | |
| Overall Width | 35mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand LDK | ||
Product Type Rod End | ||
Connection Size M5 Female | ||
Bore Size 5 mm | ||
Material Carbon Steel | ||
Dynamic Load Rating 3.3kN | ||
Static Load Rating 6.2kN | ||
Thread Standard Metric | ||
Outside Diameter 16 mm | ||
Overall Width 35mm | ||
Standards/Approvals No | ||
Non Compliant
- COO (Country of Origin):
- CN
Ball: AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished
Body: Carbon steel,clear Zinc plated.
Race: PTFE composite
Sliding contact surfaces: Steel/PTFE composite
