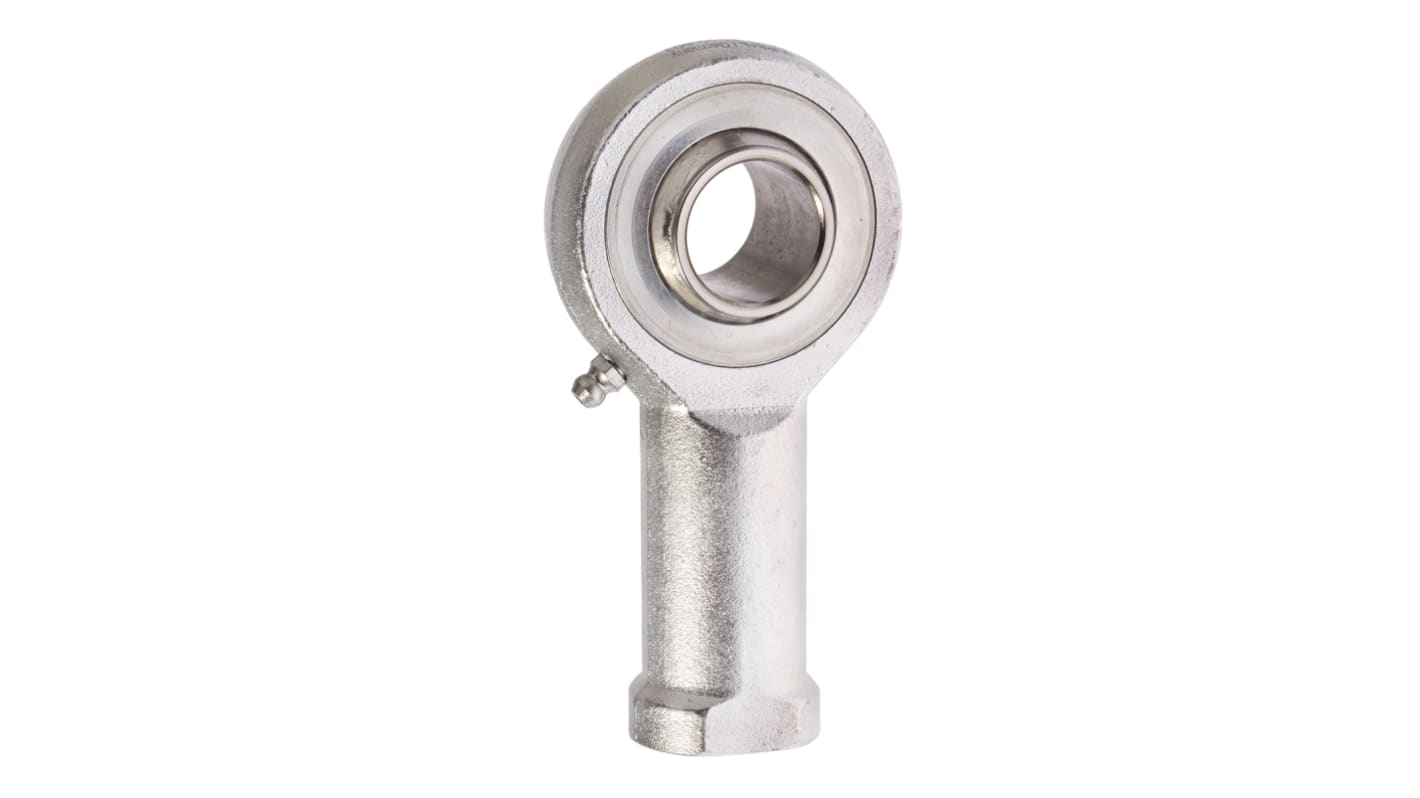

Durbal M22 x 1.5 Female Forged Steel Rod End, 22 mm Bore Metric
- RS Stock No.:
- 185-0135
- Mfr. Part No.:
- BRF 22-00-501
- Manufacturer:
- Durbal
Bulk discount available
Subtotal (1 unit)*
PHP19,260.45
(exc. VAT)
PHP21,571.70
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 2 unit(s) shipping from February 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP19,260.45 |
| 5 + | PHP18,682.63 |
*price indicative
- RS Stock No.:
- 185-0135
- Mfr. Part No.:
- BRF 22-00-501
- Manufacturer:
- Durbal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Durbal | |
| Product Type | Rod End | |
| Connection Size | M22 x 1.5 Female | |
| Bore Size | 22 mm | |
| Material | Forged Steel | |
| Dynamic Load Rating | 14.2kN | |
| Static Load Rating | 7.5kN | |
| Thread Standard | Metric | |
| Minimum Operating Temperature | 20°C | |
| Maximum Operating Temperature | 120°C | |
| Outside Diameter | 54 mm | |
| Thread Direction | Right Hand | |
| Standards/Approvals | No | |
| Overall Width | 111mm | |
| Select all | ||
|---|---|---|
Brand Durbal | ||
Product Type Rod End | ||
Connection Size M22 x 1.5 Female | ||
Bore Size 22 mm | ||
Material Forged Steel | ||
Dynamic Load Rating 14.2kN | ||
Static Load Rating 7.5kN | ||
Thread Standard Metric | ||
Minimum Operating Temperature 20°C | ||
Maximum Operating Temperature 120°C | ||
Outside Diameter 54 mm | ||
Thread Direction Right Hand | ||
Standards/Approvals No | ||
Overall Width 111mm | ||
- COO (Country of Origin):
- DE
Premium Line Rod Ends low maintenance, lubrication possible rod ends with integral self-aligning roller or ball bearing.
Female thread greasable, low maintenance, shields adapter.
Rod end housing: forged steel, tempered, case hardened bearing race, ground and lapped, surface galvanized
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 40 μm radial
