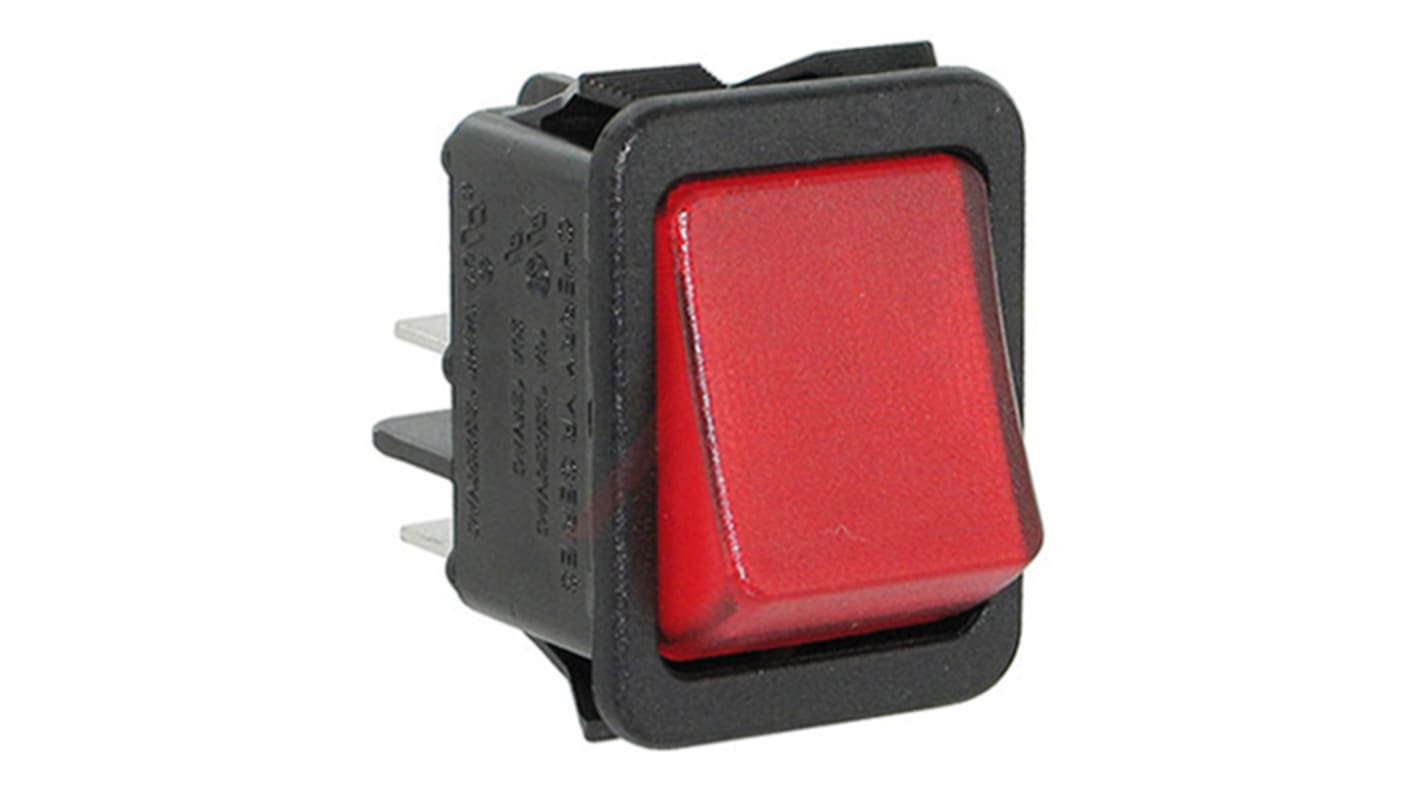

ZF Illuminated DPST, On-Off On-Off Rocker Switch Panel
- RS Stock No.:
- 868-1648
- Mfr. Part No.:
- YRM32F2BBRLN
- Manufacturer:
- ZF
Subtotal (1 pack of 10 units)*
PHP1,592.00
(exc. VAT)
PHP1,783.00
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Temporarily out of stock
- Shipping from May 13, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | PHP159.20 | PHP1,592.00 |
*price indicative
- RS Stock No.:
- 868-1648
- Mfr. Part No.:
- YRM32F2BBRLN
- Manufacturer:
- ZF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Contact Configuration | DPST | |
| Product Type | Rocker Switch | |
| Switch Operation | On-Off | |
| Housing Material | Nylon | |
| Panel Cutout Size | 22 x 30.5 mm | |
| Switch Contact Current | 16A | |
| Illuminated | Yes | |
| Actuator Colour | Red | |
| Series | WR | |
| Mount Type | Panel | |
| Terminal Type | Quick Connect | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -20°C | |
| Contact DC Voltage | 32V dc | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Rectangular | |
| Maximum Operating Temperature | 105°C | |
| Switch Configuration | On-Off | |
| Standards/Approvals | VDE, UL, RoHS, IEC | |
| Mechanical Life | 50000Operations | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Contact Configuration DPST | ||
Product Type Rocker Switch | ||
Switch Operation On-Off | ||
Housing Material Nylon | ||
Panel Cutout Size 22 x 30.5 mm | ||
Switch Contact Current 16A | ||
Illuminated Yes | ||
Actuator Colour Red | ||
Series WR | ||
Mount Type Panel | ||
Terminal Type Quick Connect | ||
IP Rating IP67 | ||
Minimum Operating Temperature -20°C | ||
Contact DC Voltage 32V dc | ||
Contact AC Voltage 250V ac | ||
Actuator Style Rectangular | ||
Maximum Operating Temperature 105°C | ||
Switch Configuration On-Off | ||
Standards/Approvals VDE, UL, RoHS, IEC | ||
Mechanical Life 50000Operations | ||
- COO (Country of Origin):
- CN
YR Series Rocker Switches
YR series double pole rocker switches offer a high switching current in a compact design. The YR series is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
High current rating to 20 amps
Maintained action and momentary
Mechanical life: min. 50,000 operations
