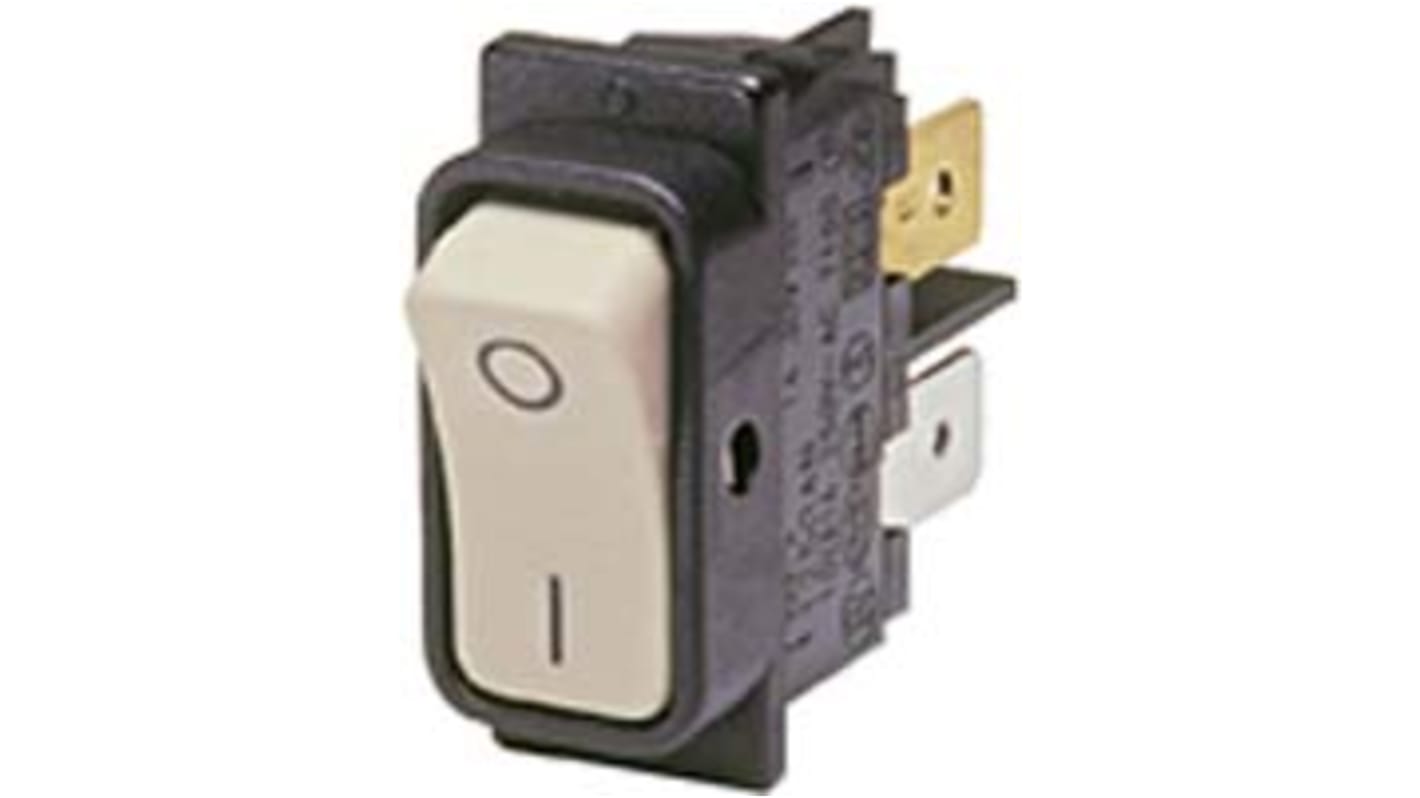

Arcolectric (Bulgin) Ltd DPST, On-Off On-Off Rocker Switch Panel
- RS Stock No.:
- 861-0260
- Distrelec Article No.:
- 303-90-499
- Mfr. Part No.:
- C1250ANTAA
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Subtotal (1 unit)*
PHP432.80
(exc. VAT)
PHP484.74
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 591 unit(s) shipping from September 14, 2026
- Plus 150 unit(s) shipping from September 21, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP432.80 |
*price indicative
- RS Stock No.:
- 861-0260
- Distrelec Article No.:
- 303-90-499
- Mfr. Part No.:
- C1250ANTAA
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcolectric (Bulgin) Ltd | |
| Contact Configuration | DPST | |
| Product Type | Rocker Switch | |
| Switch Operation | On-Off | |
| Legend | Off (Symbol), On (Symbol) | |
| Housing Material | Aluminium | |
| Panel Cutout Size | 26.3 x 12.4 mm | |
| Switch Contact Current | 10A | |
| Illuminated | No | |
| Terminal Type | Quick Connect | |
| Mount Type | Panel | |
| IP Rating | IP54, IP67 | |
| Contact DC Voltage | 30V dc | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Rectangular | |
| Contact AC Voltage | 250V ac | |
| Maximum Operating Temperature | 100°C | |
| Switch Configuration | On-Off | |
| Standards/Approvals | BS, CE, CSA, RoHS, UL, VDE | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand Arcolectric (Bulgin) Ltd | ||
Contact Configuration DPST | ||
Product Type Rocker Switch | ||
Switch Operation On-Off | ||
Legend Off (Symbol), On (Symbol) | ||
Housing Material Aluminium | ||
Panel Cutout Size 26.3 x 12.4 mm | ||
Switch Contact Current 10A | ||
Illuminated No | ||
Terminal Type Quick Connect | ||
Mount Type Panel | ||
IP Rating IP54, IP67 | ||
Contact DC Voltage 30V dc | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Rectangular | ||
Contact AC Voltage 250V ac | ||
Maximum Operating Temperature 100°C | ||
Switch Configuration On-Off | ||
Standards/Approvals BS, CE, CSA, RoHS, UL, VDE | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- TN
Mini Double Pole
A fully approved double pole rocker switch
Fits into the space traditionally required for a single pole switch
DPST silver contacts
Connection via 6·3mm faston connectors
>3mm contact gap
Nylon 66 94 V-2
Approvals
ENEC, VDE, SEV, SEMKO, IMQ, BEAB, UL recognised component, CSA certified
