NKK Switches DPST, On-On On-On Rocker Switch Panel

Subtotal (1 unit)*

PHP785.09

(exc. VAT)

PHP879.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 4 unit(s) shipping from November 23, 2026
  • Plus 25 unit(s) shipping from November 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP785.09

*price indicative

RS Stock No.:
195-9402
Mfr. Part No.:
JWM22RHA
Manufacturer:
NKK Switches
Find similar products by selecting one or more attributes.
Select all

Brand

NKK Switches

Product Type

Rocker Switch

Contact Configuration

DPST

Switch Operation

On-On

Legend

I/O

Housing Material

Polyamide

Panel Cutout Size

24 x 15.4 mm

Switch Contact Current

10A

Illuminated

No

Series

JWL

Actuator Colour

Grey

Mount Type

Panel

Terminal Type

Quick Connect

IP Rating

IP67

Contact DC Voltage

72V dc

Actuator Style

Rectangular

Contact AC Voltage

250V ac

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

70°C

Switch Configuration

On-On

Standards/Approvals

IEC, UL

Mechanical Life

25000Operations

Legend Text Colour

White

COO (Country of Origin):
CN

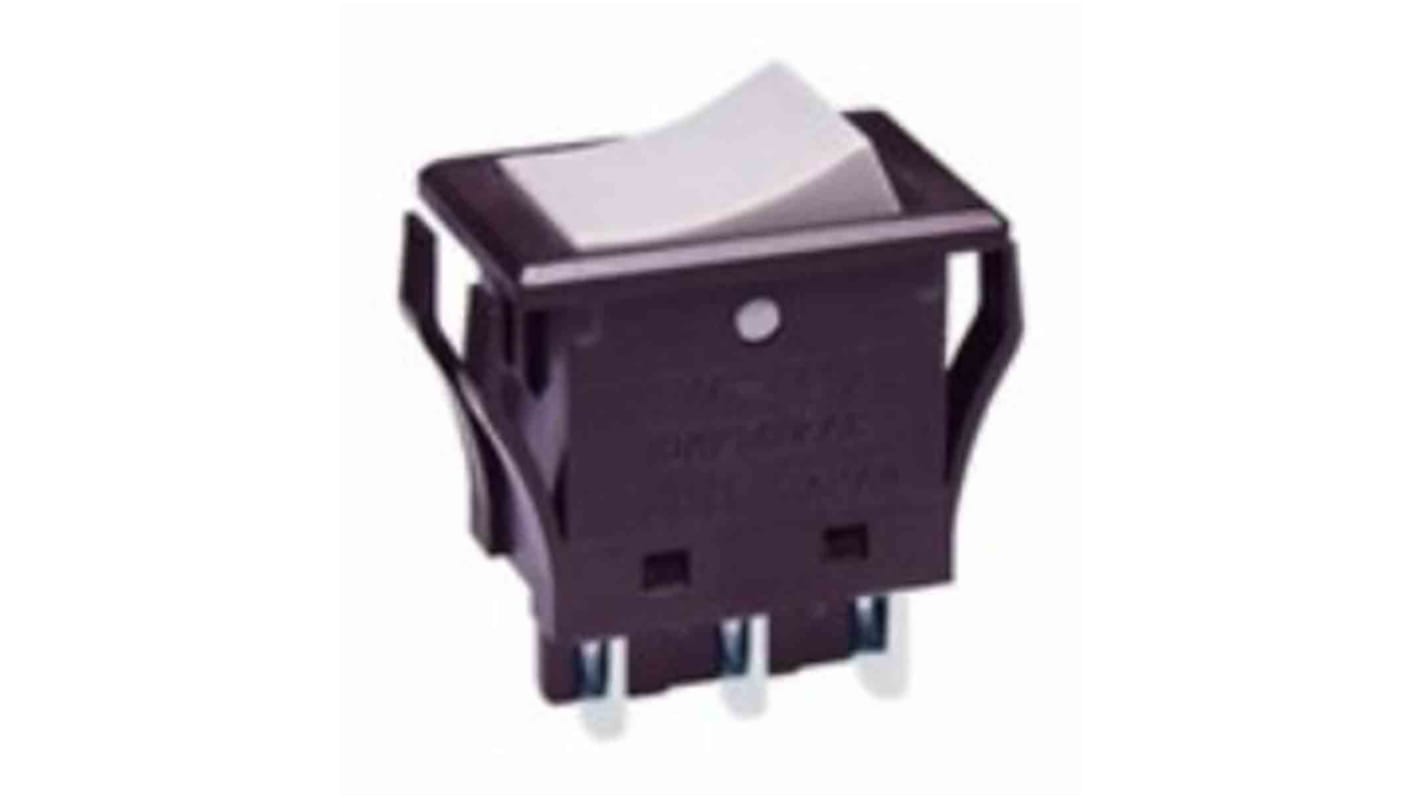

The NKK Switches rocker switch has DPST contacts, and On-On circuit configuration. Terminals are made up of brass with silver plating. Its operating temperature range is -25 to +70 °C. This product belongs to JW series.

Prominent external insulating barriers increase insulation resistance and dielectric strength

Uniquely constructed to break light contact welds

Increased electrical life with specially designed plate to minimize contact bounce

Constructed for dust resistance with interior cover between actuator and contact area
