Samtec TCSD Series Flat IDC Socket Cable Assembly, 40-Way, 2mm Pitch, 200mm Length, Tiger Eye IDC to Tiger Eye IDC

RS Stock No.:: 901-2396
Mfr. Part No.:: TCSD-20-D-08.00-01-N
Manufacturer:: Samtec

Samtec TCSD Series Flat IDC Socket Cable Assembly, 40-Way, 2mm Pitch, 200mm Length, Tiger Eye IDC to Tiger Eye IDC

Bulk discount available

Subtotal (1 unit)*

PHP1,087.53

(exc. VAT)

PHP1,218.03

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

12 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 49	PHP1,087.53
50 - 249	PHP1,054.90
250 +	PHP1,023.23

*price indicative

RS Stock No.:: 901-2396
Mfr. Part No.:: TCSD-20-D-08.00-01-N
Manufacturer:: Samtec

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Ribbon Cable Type	Flat
	Connector 1	Tiger Eye IDC
	Pitch	2mm
	Connector 2	Tiger Eye IDC
	Connector 1 Gender	Female
	Terminated/Unterminated	Terminated
	Connector 2 Gender	Female
	Number of Ways	40
	American Wire Gauge	28 AWG
	Series	TCSD
	Length	200mm
	Sheath Colour	Grey
	Maximum Operating Temperature	+105°C
	Minimum Operating Temperature	-40°C
	Conductor Strand Type	Stranded
	Operating Temperature Range	-40 → +105 °C
	Standards Met	RoHS Compliant, UL
	Size of Strands	7/36
	Current Rating	2.8 A
	Core Strands	7/36

	Select all
	Brand Samtec
	Ribbon Cable Type Flat
	Connector 1 Tiger Eye IDC
	Pitch 2mm
	Connector 2 Tiger Eye IDC
	Connector 1 Gender Female
	Terminated/Unterminated Terminated
	Connector 2 Gender Female
	Number of Ways 40
	American Wire Gauge 28 AWG
	Series TCSD
	Length 200mm
	Sheath Colour Grey
	Maximum Operating Temperature +105°C
	Minimum Operating Temperature -40°C
	Conductor Strand Type Stranded
	Operating Temperature Range -40 → +105 °C
	Standards Met RoHS Compliant, UL
	Size of Strands 7/36
	Current Rating 2.8 A
	Core Strands 7/36

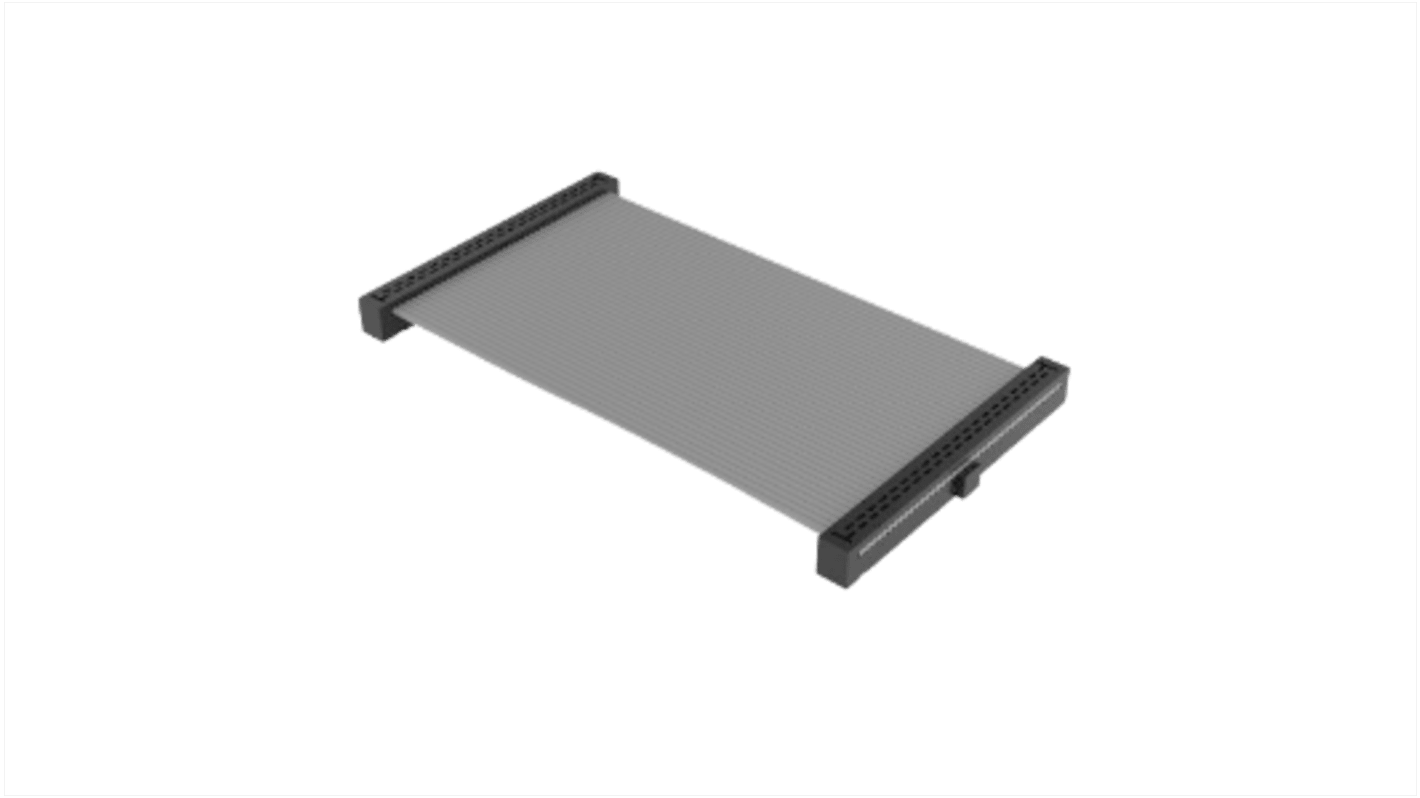

Samtec IDC Socket Cable Assembly, 2.8A Current Rating, Terminated - TCSD Series - TCSD-20-D-08.00-01-N

Transfer signals in your circuit from A to B with this IDC socket cable assembly from Samtec. It's a double-ended piece comprising numerous cables arranged in a parallel structure. The contacts are made of highly conductive tinned copper for reliable performance. As the accessory has a current rating of 2.8A, it's suitable for low-power electrical systems. A built-in polarising notch ensures the cable fits properly to prevent damage to the conductors. Thanks to its flat design, it slots neatly into slim enclosures.

Features & Benefits

• 40-way layout accommodates multiple signal transmissions
• Wide operating temperature range of -40°C to +105°C means it's tough enough for most applications
• Compact pitch of 2mm to fit small conductors
• Gold-plated contacts provide resistance to corrosion
• Dual Tiger Eye IDC termination for convenient socket mounting

Applications

• Audio-visual equipment
• Household appliances
• Lighting fixtures
• Robotics and automation
• Security systems

How long is this cable assembly?

It's just 200mm long, making it ideal for any setup where space is at a premium and a short-range connection is needed.

Is this unit insulated?

Yes. For a high degree of electrical safety, this IDC socket cable assembly is insulated with a robust PVC jacket.
