Eaton 2 A Resettable Fuse, 6 V

RS Stock No.:: 225-8248
Mfr. Part No.:: PTSLR12066V200
Manufacturer:: Eaton

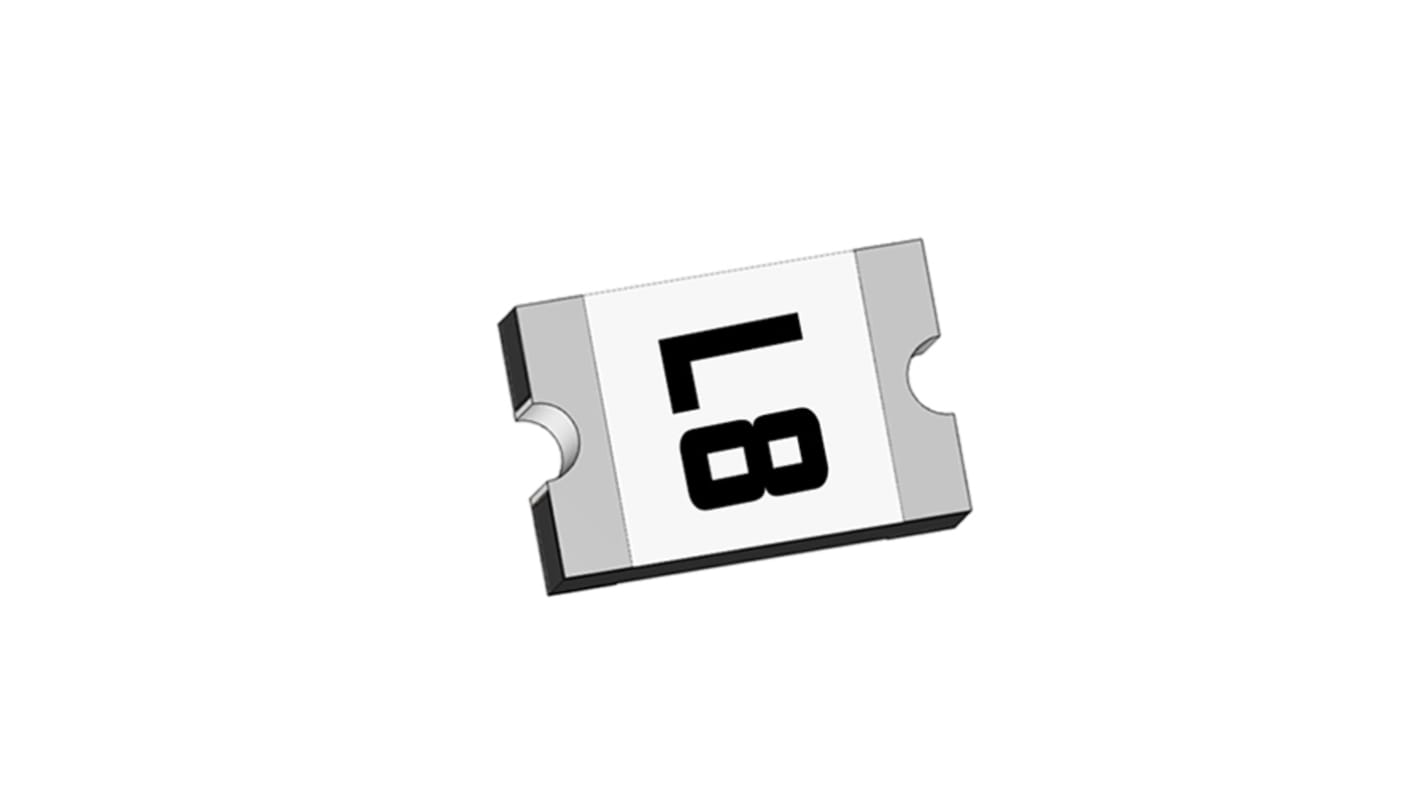

This image is representative of the product range

Subtotal (1 reel of 2500 units)*

PHP48,599.92

(exc. VAT)

PHP54,431.91

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

Shipping from October 01, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Unit*
1 +	PHP48,599.92	PHP19.44

*price indicative

RS Stock No.:: 225-8248
Mfr. Part No.:: PTSLR12066V200
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Trip Current	4A
	Product Type	Resettable Fuse
	Voltage	6 V
	Current Rating	50 A
	Time to Trip	0.5s
	Hold Current	2A
	Length	3.5mm
	Height	1.2mm
	Width	1.8 mm
	Minimum Resistance	0.01Ω
	Minimum Operating Temperature	-40°C
	Maximum Resistance	0.04Ω
	Power Dissipation	0.8W
	Maximum Operating Temperature	85°C
	Standards/Approvals	cURus, RoHS, UL
	Series	Bussmann
	Package Type	Reel

	Select all
	Brand Eaton
	Trip Current 4A
	Product Type Resettable Fuse
	Voltage 6 V
	Current Rating 50 A
	Time to Trip 0.5s
	Hold Current 2A
	Length 3.5mm
	Height 1.2mm
	Width 1.8 mm
	Minimum Resistance 0.01Ω
	Minimum Operating Temperature -40°C
	Maximum Resistance 0.04Ω
	Power Dissipation 0.8W
	Maximum Operating Temperature 85°C
	Standards/Approvals cURus, RoHS, UL
	Series Bussmann
	Package Type Reel

Datasheet - PTSLR12066V200

COO (Country of Origin):: CN

The Eaton PTSLR1206 series low resistance SMD PTC fuse has hold current of 2 A. It is used in data ports, micromotors and fans, USB protection and battery charging & charging connections.

Compact 1206 footprint

Fast time-to-trip

Low voltage hand held equipment

PC-based medical equipment

Note

Eaton formerly known as Bussmann
