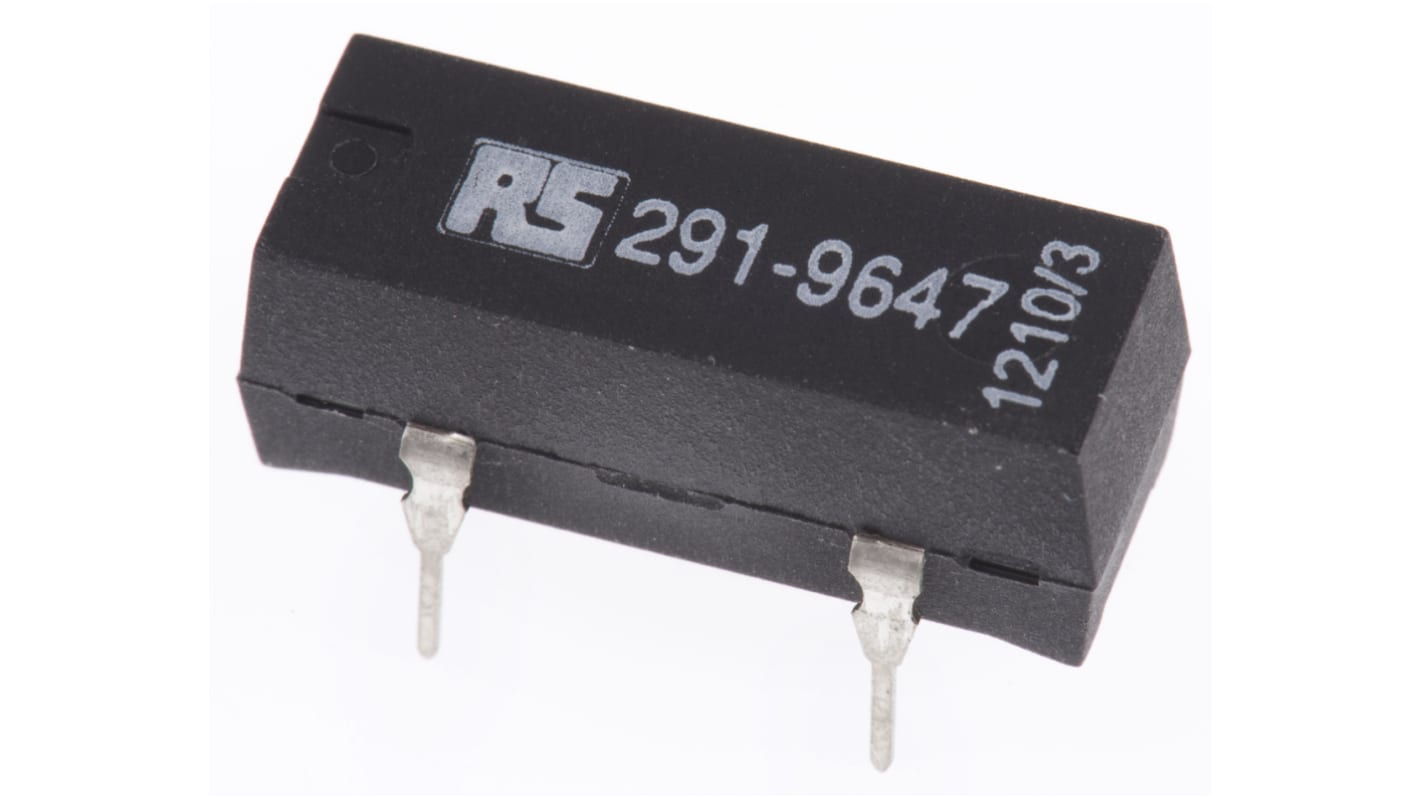

RS PRO PCB Reed Relay, 24V dc Coil, SPNO, 300V dc Max, 500mA Max, 2150 Ω
- RS Stock No.:
- 291-9647
- Manufacturer:
- RS PRO
Get a bulk buy discount
Add 100 more to save 3%
View bulk pricing optionsSubtotal (1 unit)*
PHP1,028.67
(exc. VAT)
PHP1,152.11
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 111 unit(s) ready to ship from another location
- Plus 150 unit(s) shipping from November 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Saving |
|---|---|---|
| 1 - 99 | PHP1,028.67 | - |
| 100 - 249 | PHP997.79 | 3% |
| 250 - 499 | PHP967.84 | 5% |
| 500 + | PHP938.81 | 8% |
*price indicative
- RS Stock No.:
- 291-9647
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | SPNO | |
| Product Type | Reed Relay | |
| Mount Type | PCB | |
| Switching Current | 500mA | |
| Coil Power | 290mW | |
| Coil Resistance | 2150Ω | |
| Terminal Type | Solder Pin | |
| Operating Time | 2ms | |
| Minimum Operating Temperature | -20°C | |
| Switching Power | 15W | |
| Maximum Operating Temperature | 70°C | |
| Height | 7.5mm | |
| Standards/Approvals | No | |
| Series | RS PRO | |
| Length | 19.3mm | |
| Isolation Coil To Contact | 2.5kV | |
| Contact Resistance | 200mΩ | |
| Latching | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration SPNO | ||
Product Type Reed Relay | ||
Mount Type PCB | ||
Switching Current 500mA | ||
Coil Power 290mW | ||
Coil Resistance 2150Ω | ||
Terminal Type Solder Pin | ||
Operating Time 2ms | ||
Minimum Operating Temperature -20°C | ||
Switching Power 15W | ||
Maximum Operating Temperature 70°C | ||
Height 7.5mm | ||
Standards/Approvals No | ||
Series RS PRO | ||
Length 19.3mm | ||
Isolation Coil To Contact 2.5kV | ||
Contact Resistance 200mΩ | ||
Latching No | ||
- COO (Country of Origin):
- DE
RS PRO SPNO Reed Relay, 0.5 A, 24 V DC
This RS PRO reed relay controls the electromagnet in a non-armature reed switch. It's a fast-acting relay with an operating time (including bounce time) of 2 ms. The lack of mechanical movement inside the relay and relatively uncomplicated design also prevents wear and tear on the device.
For easy installation, the relay has industry-standard pin configurations that will pair with most circuits. Once in place, the seal of the switch area is airtight, preventing any dust or debris from getting in.
Reed relays only need a low level of power to operate making them an eco-friendly option for busy workplaces. They're ideal for use with mains Triac trigger devices.
Features and Benefits
• Coil power of 290 mW
• Coil resistance of 2.15 kΩ
• Coil voltage of 24 V DC
• SPNO (single pole normally open) contact configuration
• Tin-plated copper alloy contact material
• Contact resistance of 200 mΩ
• Isolation coil to contact of 2.5 kV DC
• Height of 7.5 mm
• Length of 19.3 mm
• Depth of 7 mm
• Maximum switching current of 0.5 A AC/DC
• Maximum switching power of 10 W DC
• Maximum switching voltage of 300 V AC/DC
• PCB mounting type
• Operating temperature range of -20°C to +70°C
• Operating time (including bounce) of 2 ms
• RoHS (Restriction of Hazardous Substances) compliant
• Through-hole terminal type
Approvals
UL
