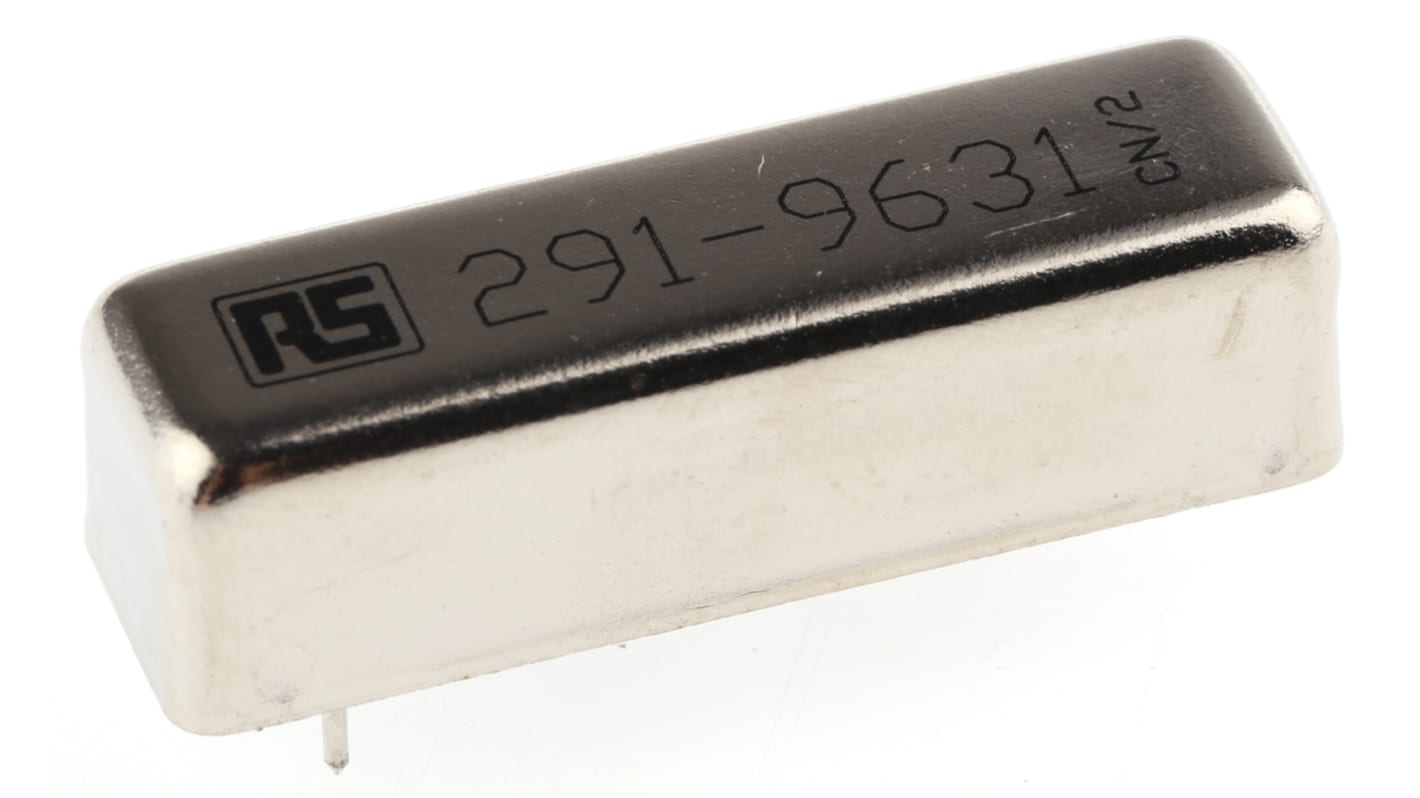

RS PRO PCB Reed Relay, 48V dc Coil, SPST, 200V dc Max, 1A Max, 12000 Ω
- RS Stock No.:
- 291-9631
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP2,248.80
(exc. VAT)
PHP2,518.66
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 34 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from August 25, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 99 | PHP2,248.80 |
| 100 - 249 | PHP2,181.33 |
| 250 - 499 | PHP2,115.86 |
| 500 + | PHP2,052.40 |
*price indicative
Sponsored
- RS Stock No.:
- 291-9631
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | SPST | |
| Product Type | Reed Relay | |
| Mount Type | PCB | |
| Coil Power | 192mW | |
| Terminal Type | Solder | |
| Coil Resistance | 12000Ω | |
| Operating Time | 0.5ms | |
| Switching Power | 15W | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 8.9mm | |
| Standards/Approvals | No | |
| Length | 31.8mm | |
| Series | B48 | |
| Isolation Coil To Contact | 2kV dc | |
| Contact Resistance | 150mΩ | |
| Latching | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration SPST | ||
Product Type Reed Relay | ||
Mount Type PCB | ||
Coil Power 192mW | ||
Terminal Type Solder | ||
Coil Resistance 12000Ω | ||
Operating Time 0.5ms | ||
Switching Power 15W | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Height 8.9mm | ||
Standards/Approvals No | ||
Length 31.8mm | ||
Series B48 | ||
Isolation Coil To Contact 2kV dc | ||
Contact Resistance 150mΩ | ||
Latching No | ||
- COO (Country of Origin):
- DE
SPNO Reed Relay B Series
Encapsulated in a nickel-plated steel case for magnetic screening
Mechanical Life : 108 Operations
Maximum switching current 1A
