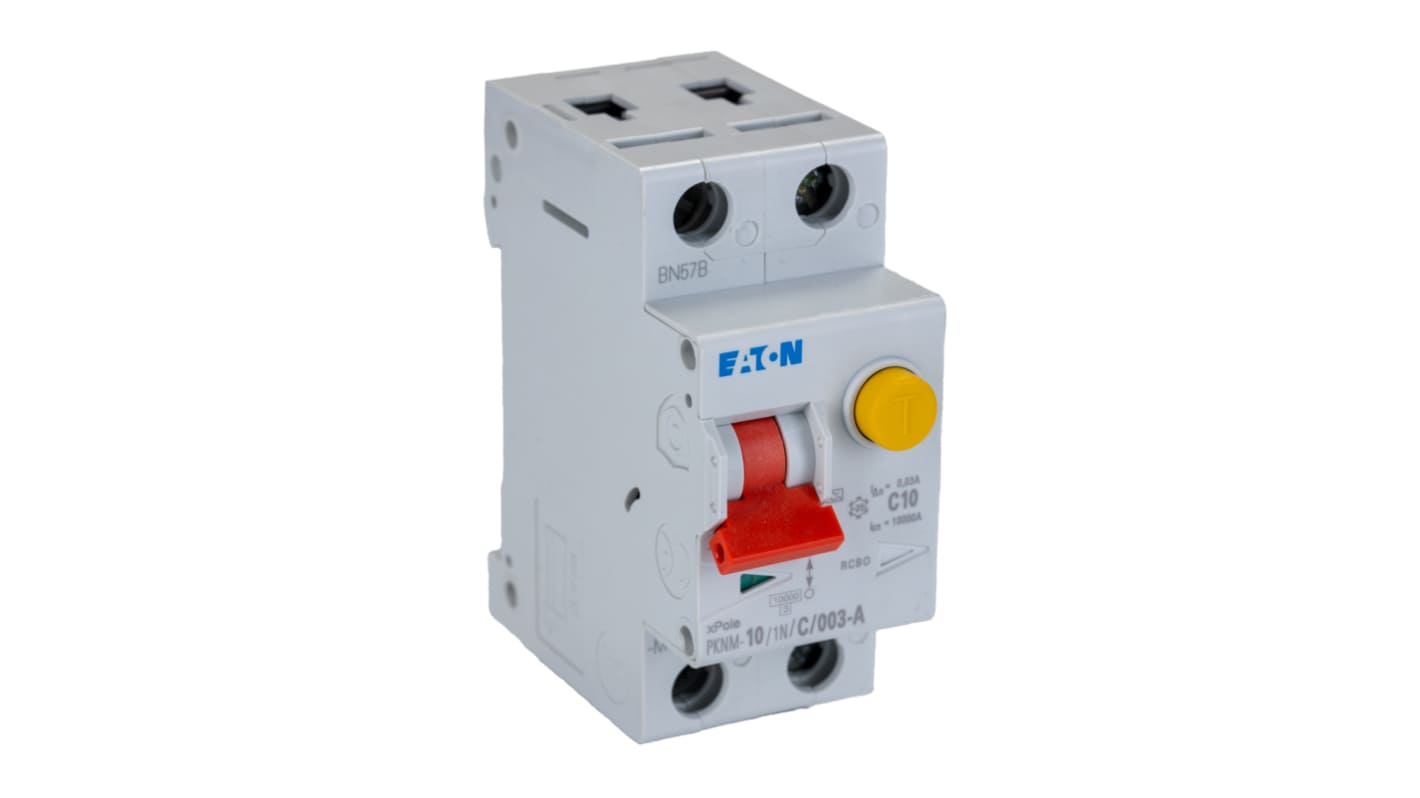

Eaton RCD, 10A, 2 Pole, 30mA, Type C, 230V
- RS Stock No.:
- 922-8715
- Mfr. Part No.:
- 236082 PKNM-10/1N/C/003-A-MW
- Manufacturer:
- Eaton
Subtotal (1 unit)*
PHP9,697.86
(exc. VAT)
PHP10,861.60
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 6 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from January 20, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP9,697.86 |
*price indicative
- RS Stock No.:
- 922-8715
- Mfr. Part No.:
- 236082 PKNM-10/1N/C/003-A-MW
- Manufacturer:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Circuit Breaker Type | RCD | |
| Current Rating | 10A | |
| Number of Poles | 2 | |
| Range | PKNM | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Voltage Rating | 230V | |
| Standards Met | CE | |
| Overall Width | 65.5mm | |
| Overall Depth | 80mm | |
| Terminal Contact Type | Screw | |
| Mounting Style | DIN Rail Mount | |
| Reset Actuator Type | Toggle Switch | |
| Overall Dimensions | 35 x 65.5 x 80mm | |
| Overall Length | 35mm | |
| Rated AC Voltage | 230V | |
| Earth Leakage Protection Type | A | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Break Time | Instantaneous | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Circuit Breaker Type RCD | ||
Current Rating 10A | ||
Number of Poles 2 | ||
Range PKNM | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Voltage Rating 230V | ||
Standards Met CE | ||
Overall Width 65.5mm | ||
Overall Depth 80mm | ||
Terminal Contact Type Screw | ||
Mounting Style DIN Rail Mount | ||
Reset Actuator Type Toggle Switch | ||
Overall Dimensions 35 x 65.5 x 80mm | ||
Overall Length 35mm | ||
Rated AC Voltage 230V | ||
Earth Leakage Protection Type A | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Break Time Instantaneous | ||
- COO (Country of Origin):
- RO
Eaton RCD, Screw Terminals, Front Toggle Switch - PKNM Series - 236082 PKNM-10/1N/C/003-A-MW
Keep your people safe from electric shocks with this RCD from Eaton. Its type-C tripping characteristics make it suitable for protecting more powerful motors. If the current exceeds two to five times the rated load, the unit will trip and shut off the power before any damage can be done. Once you've found and rectified the fault, simply flick the toggle switch to reset the RCD and get up and running again.
Features & Benefits
• Screw terminals help you quickly make secure electrical connections
• Red and green contact position indicators let you check the status at a glance
• Single-pole plus neutral configuration means it protects both the phase and neutral conductors in single-phase loads such as lighting
• 10A current rating to protect circuits with the same input
• Red and green contact position indicators let you check the status at a glance
• Single-pole plus neutral configuration means it protects both the phase and neutral conductors in single-phase loads such as lighting
• 10A current rating to protect circuits with the same input
What's the difference between an RCD and an MCB?
An RCD (residual current device) is a safety device that detects and disconnects power when it senses a leakage of current. An MCB (miniature circuit breaker) is designed to protect circuits from overcurrents and short circuits by interrupting the flow of current. While both enhance electrical safety, an RCD focuses on keeping people safe rather than protecting the circuit.
Note
Eaton formerly known as Moeller
