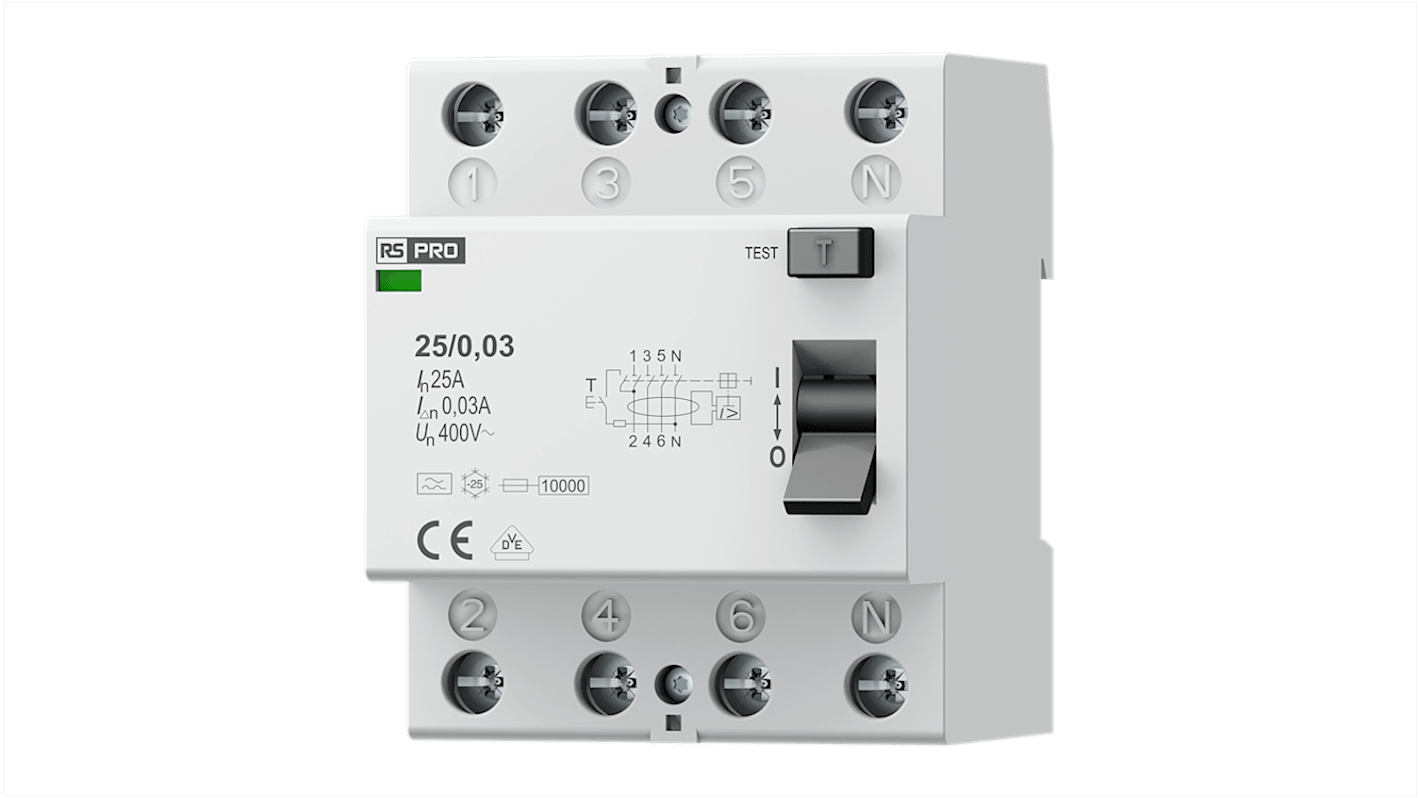

RS PRO NF14 Series Residual Current Circuit Breaker, 25A, 4-Pole, 30 mA, Type A 400V ac

RS Stock No.:: 284-2372
Manufacturer:: RS PRO

RS PRO NF14 Series Residual Current Circuit Breaker, 25A, 4-Pole, 30 mA, Type A 400V ac

Subtotal (1 unit)*

PHP4,640.62

(exc. VAT)

PHP5,197.49

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

Shipping from May 21, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP4,640.62

*price indicative

RS Stock No.:: 284-2372
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Residual Current Circuit Breaker
	Current Rating	25A
	Number of Poles	4
	Series	NF14
	Trip Sensitivity	30mA
	Mount Type	DIN Rail
	Tripping Characteristics	Type A
	Standards/Approvals	CE, IEC/EN 61008, VDE
	Depth	68mm
	Height	85mm
	Width	70mm
	Earth Leakage Protection Type	Type A
	Rated AC Voltage	400V ac

	Select all
	Brand RS PRO
	Product Type Residual Current Circuit Breaker
	Current Rating 25A
	Number of Poles 4
	Series NF14
	Trip Sensitivity 30mA
	Mount Type DIN Rail
	Tripping Characteristics Type A
	Standards/Approvals CE, IEC/EN 61008, VDE
	Depth 68mm
	Height 85mm
	Width 70mm
	Earth Leakage Protection Type Type A
	Rated AC Voltage 400V ac

RoHS Status: Exempt

COO (Country of Origin):: SI

RS PRO Residential RCCBs

These RS PRO residual current circuit breakers serve multiple protective functions, including fault protection, fire protection, and additional protection against direct contact. Also facilitating isolation and offer an optional operation position.

Type A RCCBs – sensitive to alternating and pulsating direct residual operating currents. Additionally, their terminal shape prevents the connection of conductors outside the designated connection area, which ensures safe and proper installation.

Features and Benefits

Suitable for isolation

Assembly to a 35 mm wide mounting rail

Optional operation position

Degree of protection IP20

A terminal shape prevents connection of a conductor outside the connection area

Applications

Environments with sensitive electronic equipment

Environments which require fire protection
