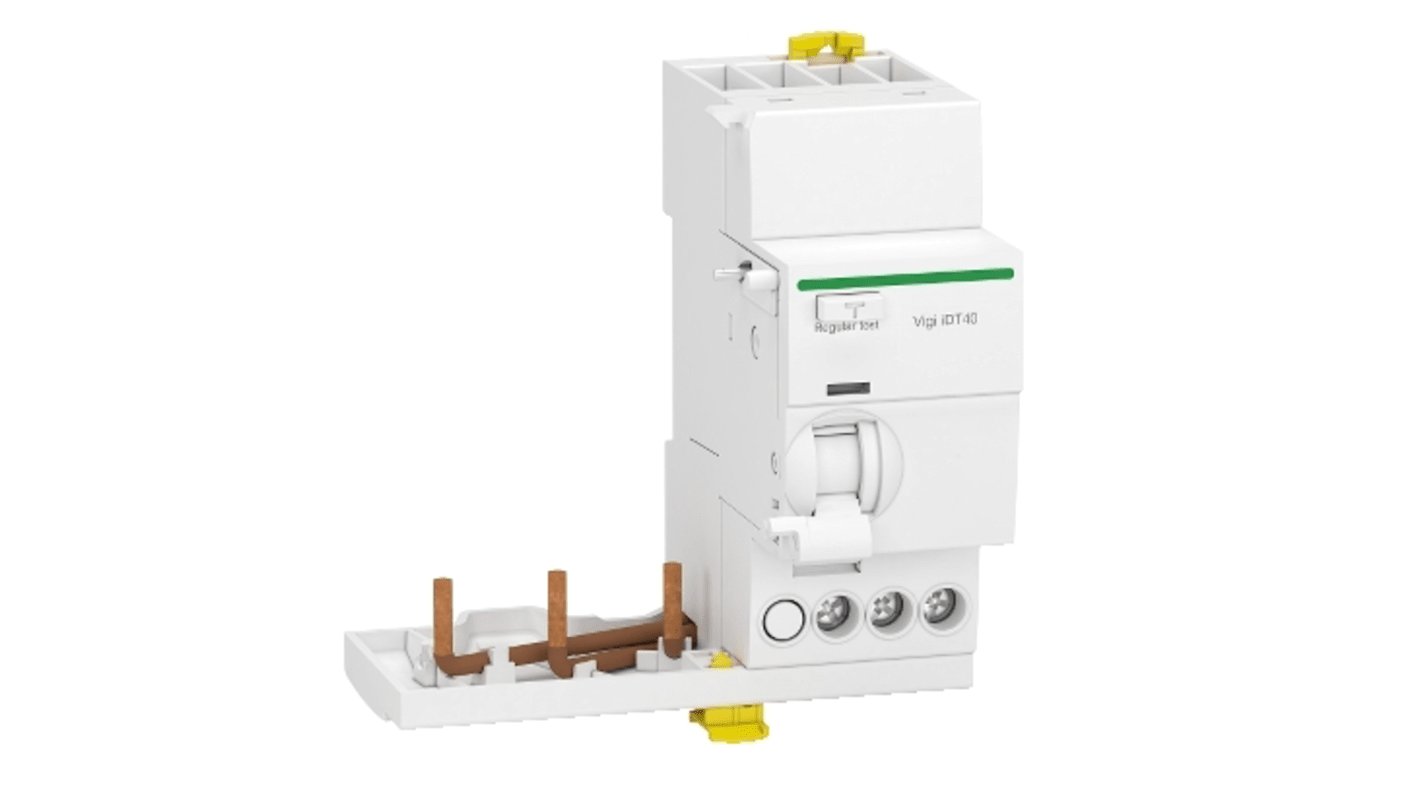

Schneider Electric Acti9 iDT40 Series Residual Current Circuit Breaker, 25 A, 3-Pole, 300 mA, Type A
- RS Stock No.:
- 238-3511
- Mfr. Part No.:
- A9Y65325
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP24,944.89
(exc. VAT)
PHP27,938.28
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP24,944.89 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 238-3511
- Mfr. Part No.:
- A9Y65325
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 25 A | |
| Number of Poles | 3 | |
| Series | Acti9 iDT40 | |
| Range | Acti9 | |
| Trip Sensitivity | 300mA | |
| Tripping Characteristics | Type A | |
| Mount Type | DIN Rail | |
| Standards/Approvals | EN/IEC 61009-2-1 | |
| Terminal Type | Tunnel | |
| Height | 99.5mm | |
| Width | 93 mm | |
| Depth | 74mm | |
| Better World Product | Yes | |
| Break Time | Instantaneous | |
| Application | Residential, Industrial | |
| Reset Actuator Type | Toggle Switch | |
| Earth Leakage Protection Type | A-SI | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 25 A | ||
Number of Poles 3 | ||
Series Acti9 iDT40 | ||
Range Acti9 | ||
Trip Sensitivity 300mA | ||
Tripping Characteristics Type A | ||
Mount Type DIN Rail | ||
Standards/Approvals EN/IEC 61009-2-1 | ||
Terminal Type Tunnel | ||
Height 99.5mm | ||
Width 93 mm | ||
Depth 74mm | ||
Better World Product Yes | ||
Break Time Instantaneous | ||
Application Residential, Industrial | ||
Reset Actuator Type Toggle Switch | ||
Earth Leakage Protection Type A-SI | ||
- COO (Country of Origin):
- ES
The Schneider Electric Acti9 series residual current circuit breaker has instantaneous earth-leakage protection time delay with sensitivity of 300 mA. It is toggle control type with ON/OFF & trip indicator. Relative humidity of this type of circuit breaker is 95 % at 55 °C. These RCCBs are compliant with standards such as EN/IEC 61008-1.
Impulse withstand voltage is 4 kV
Clip-on mounting mode
Electrical durability of 20000 cycles
Ambient air temperature for operation is around -25 to 70 °C
Padlockable, providing extra protection
Schneider Green premium classed product
