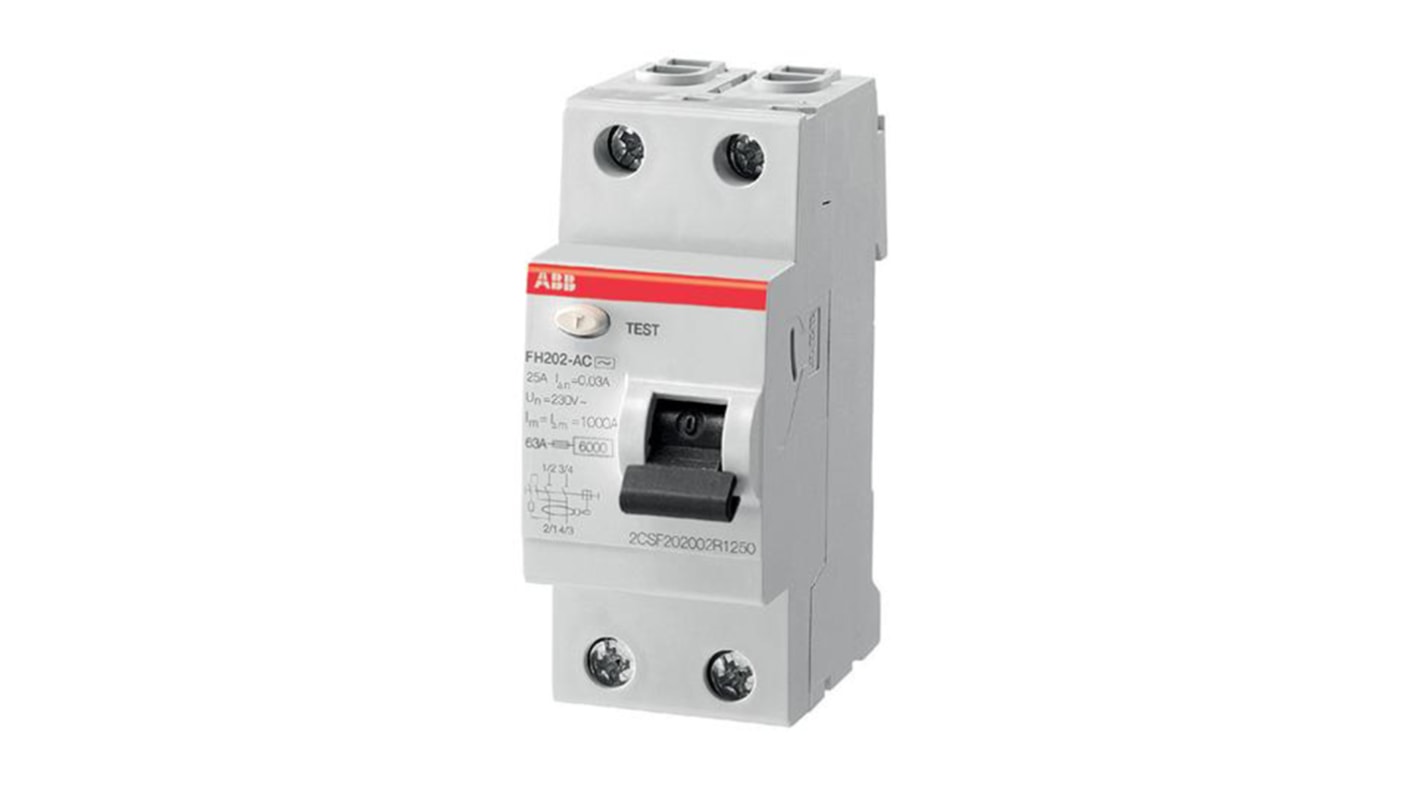

ABB FH200 Series Residual Current Circuit Breaker, 63 A, 2-Pole, 30 mA, Type AC, 1 kA 230 V ac

View all RCCBs

Subtotal (1 unit)*

PHP7,135.30

(exc. VAT)

PHP7,991.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP7,135.30

*price indicative

Bag the Deal of the Season
RS Stock No.:
186-3465
Mfr. Part No.:
2CSF202024R1630
Manufacturer:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Product Type

Residual Current Circuit Breaker

Current Rating

63 A

Number of Poles

2

Series

FH200

Trip Sensitivity

30mA

Mount Type

DIN Rail

Tripping Characteristics

Type AC

Terminal Type

Screw

Standards/Approvals

RoHS, IEC/EN 61008

Depth

69mm

Height

85mm

Width

35 mm

Breaking Capacity

1kA

Tripping Mechanism

Electromagnetic

Reset Actuator Type

Toggle Switch

Earth Leakage Protection Type

AC

Application

Residential, Industrial

Rated AC Voltage

230 V ac

Break Time

Instantaneous

ABB FH200 Series Residual Current Circuit Breaker, 63A Current Rating, 30 mA Trip Sensitivity - 2CSF202024R1630


This residual current circuit breaker (RCCB) is designed to provide essential protection against earth faults, ensuring safety for both people and installations. Part of the FH200 series, this compact device measures 69 x 35 x 85mm, making it ideal for domestic applications. The 63A rated current and 30 mA trip sensitivity offer robust performance in various home environments.

Features & Benefits


• Provides instantaneous tripping to protect against electrical hazards

• Achieves compliance with IEC standards for reliability

• Screwless terminal design simplifies installation and maintenance

• Delivers 30 mA earth leakage protection for safety

• Designed for DIN rail mounting, ensuring compatibility with standard systems

• Suitable for use in domestic circuits, enhancing household safety

Applications


• Used in residential electrical systems for enhanced safety

• Employed in domestic installations to prevent earth faults

• Ideal for requiring rapid earth fault interruption

• Used in conjunction with other protective devices for comprehensive circuit safety

What is the breaking capacity of the device?


The RCCB has a breaking capacity of 1 kA at the maximum voltage rating, ensuring it can handle fault conditions effectively.

How is the earth leakage protection type significant for my installation?


The AC type of earth leakage protection specifically addresses alternating current faults, which are common in domestic environments, increasing overall safety.

What are the implications of the 30 mA trip sensitivity?


A trip sensitivity of 30 mA is designed to protect against electric shock, providing sufficient sensitivity for residential applications while maintaining stability during normal operations.

What maintenance requirements should be followed for optimal performance?


Regular checks should be carried out to ensure the toggle switch operates smoothly, while also inspecting the terminals for any signs of wear or damage to maintain functionality.

Can this device be used in systems with different voltage ratings?


This RCCB is rated for a maximum voltage of 230V, and using it in systems with different voltage ratings could compromise its safety and performance.
