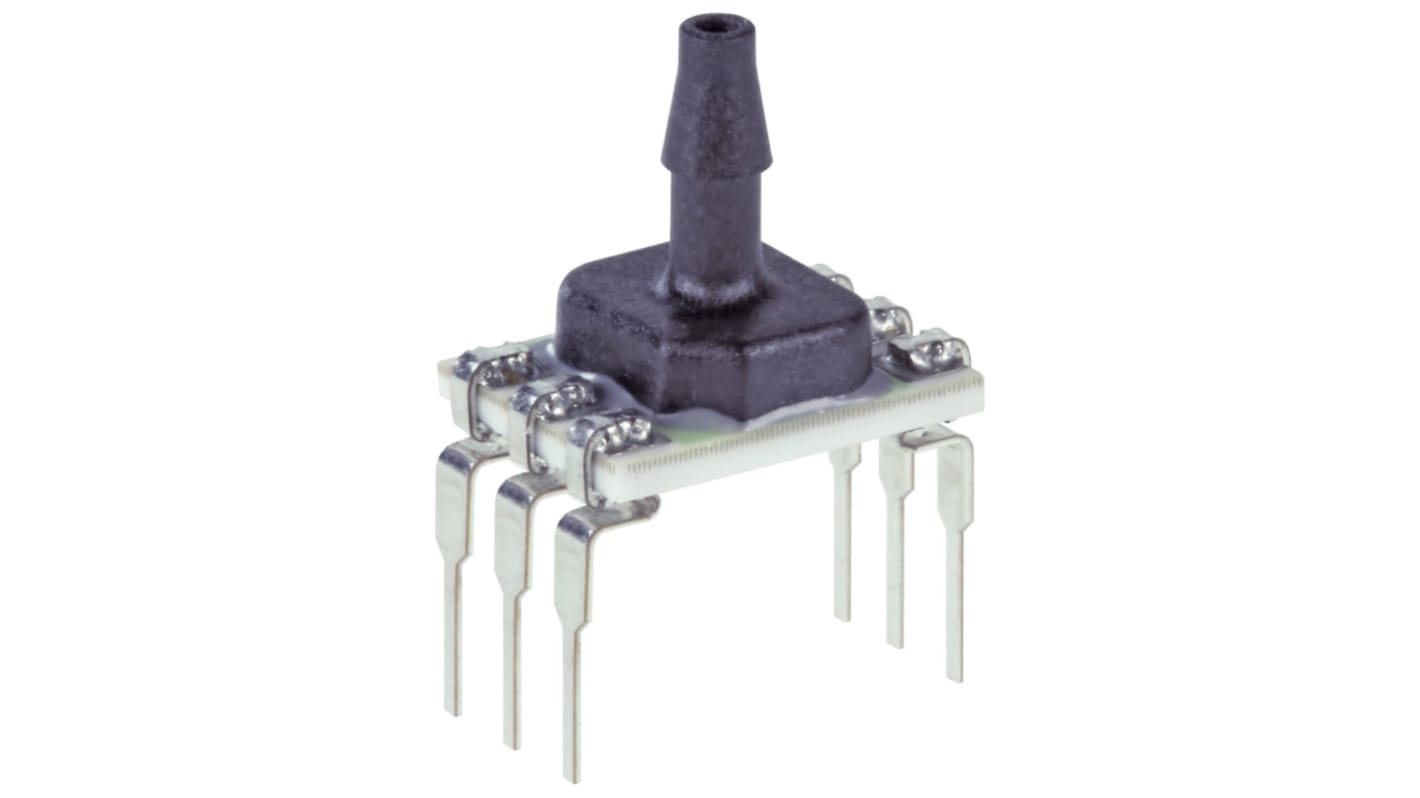

Honeywell Gauge Pressure SensorSurface 6 DIP
- RS Stock No.:
- 211-9886
- Mfr. Part No.:
- ABPDANN010BG2A3
- Manufacturer:
- Honeywell
Subtotal (1 box of 50 units)*
PHP112,622.10
(exc. VAT)
PHP126,136.75
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 100 unit(s) shipping from February 02, 2026
- Plus 100 unit(s) shipping from April 13, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 50 + | PHP2,252.442 | PHP112,622.10 |
*price indicative
- RS Stock No.:
- 211-9886
- Mfr. Part No.:
- ABPDANN010BG2A3
- Manufacturer:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Sensor Type | Gauge Pressure Sensor | |
| Product Type | Gauge Pressure Sensor | |
| Maximum Overload Pressure | 1700kPa | |
| Mount Type | Surface | |
| Package Type | DIP | |
| Pin Count | 6 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 1000 kPa | |
| Port Type | Single Axial Barbed | |
| Accuracy | ±0.25 % | |
| Maximum Supply Voltage | 5V | |
| Maximum Operating Temperature | 85°C | |
| Height | 3.63mm | |
| Length | 7.3mm | |
| Standards/Approvals | No | |
| Series | ABP | |
| Width | 6.3 mm | |
| Minimum Operating Pressure | 0psi | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Sensor Type Gauge Pressure Sensor | ||
Product Type Gauge Pressure Sensor | ||
Maximum Overload Pressure 1700kPa | ||
Mount Type Surface | ||
Package Type DIP | ||
Pin Count 6 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 1000 kPa | ||
Port Type Single Axial Barbed | ||
Accuracy ±0.25 % | ||
Maximum Supply Voltage 5V | ||
Maximum Operating Temperature 85°C | ||
Height 3.63mm | ||
Length 7.3mm | ||
Standards/Approvals No | ||
Series ABP | ||
Width 6.3 mm | ||
Minimum Operating Pressure 0psi | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
The Honeywell ABP Series are piezo resistive silicon pressure sensors offering a ratio metric analogue or digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include nonlinearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analogue and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards
Measures gage and differential pressures
Total Error Band (see Figure 1): ±1.5 %FSS
Liquid media option: Allows for wet/wet operation on dual ported devices
Industry-leading long-term stability: ±0.25 %FSS
Industry-leading accuracy: ±0.25 %FSS BFSL
As small as 8 mm x 7 mm
