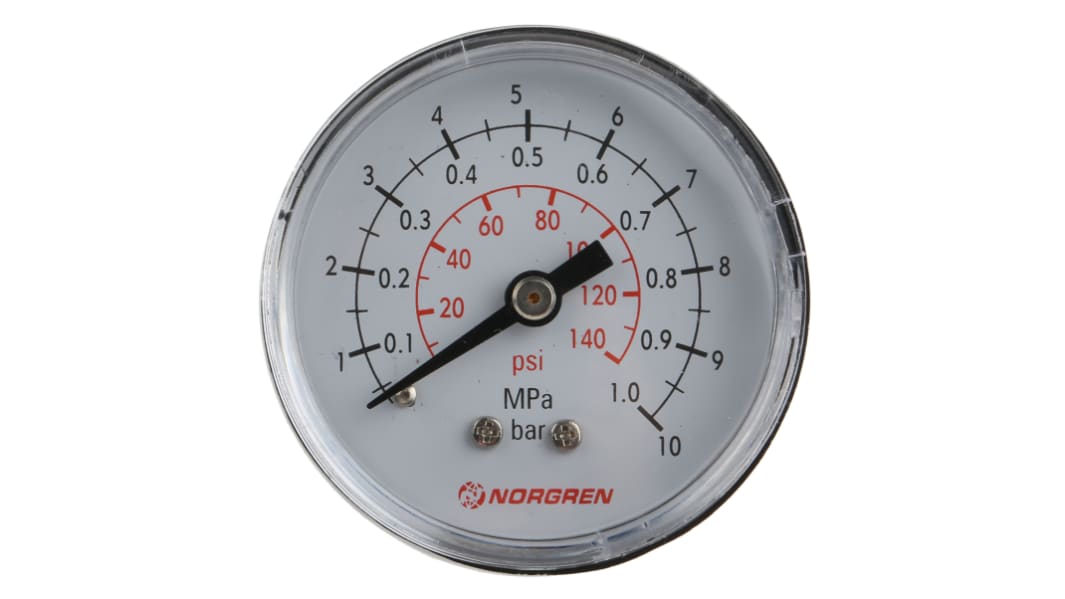

Norgren R 1/8 Analogue Pressure Gauge 10bar Back Entry 50mm Outside Diameter

RS Stock No.:: 822-4015
Mfr. Part No.:: 18-013-013
Manufacturer:: Norgren

Norgren R 1/8 Analogue Pressure Gauge 10bar Back Entry 50mm Outside Diameter

Subtotal (1 unit)*

PHP1,366.17

(exc. VAT)

PHP1,530.11

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

Plus 63 unit(s) shipping from March 02, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP1,366.17

*price indicative

RS Stock No.:: 822-4015
Mfr. Part No.:: 18-013-013
Manufacturer:: Norgren

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Norgren
	Maximum Pressure Measurement	10bar
	Minimum Pressure Measurement	0bar
	Mounting Type	Back Entry
	Display Type	Analogue
	Connection Size	R 1/8
	Gauge Outside Diameter	50mm
	Best Accuracy	± 2.5%
	Case Material	ABS, Stainless Steel, Steel
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+65°C

	Select all
	Brand Norgren
	Maximum Pressure Measurement 10bar
	Minimum Pressure Measurement 0bar
	Mounting Type Back Entry
	Display Type Analogue
	Connection Size R 1/8
	Gauge Outside Diameter 50mm
	Best Accuracy ± 2.5%
	Case Material ABS, Stainless Steel, Steel
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +65°C

Datasheet

COO (Country of Origin):: CN

IMI Norgren Analogue Pressure Gauge, 0 to 10 Bar, ± 2.5 % Best Accuracy - 18-013-013

Take precise pressure readings with this analogue pressure gauge from IMI Norgren. It uses a Bourdon tube to accurately measure the flow of compressed air, oil, gases and liquids, making it a versatile choice. The analogue display features black and red digits against a white background for clarity. The device doesn't need power to operate, so it's simple to use and there's no risk of electrical faults affecting the readings.

Features & Benefits

• Wide pressure measuring range of 0 to 10 bar for use in low-pressure and high-pressure systems
• Best accuracy of +2.5% for precise control of your compressed air system
• Compact outer diameter of 50mm for use in smaller pneumatic circuits and constricted areas
• Broad operating temperature range of -40°C to +65°C for use in demanding environments

Applications

• Heating and cooling systems
• Small compressors
• Robotic equipment
• Automated industrial manufacturing

What pressure units does this gauge display?

This versatile pressure gauge displays readings in both bar and psi (pounds per square inch). Bar units are printed in black and psi units are in red, so you can easily differentiate between them.
