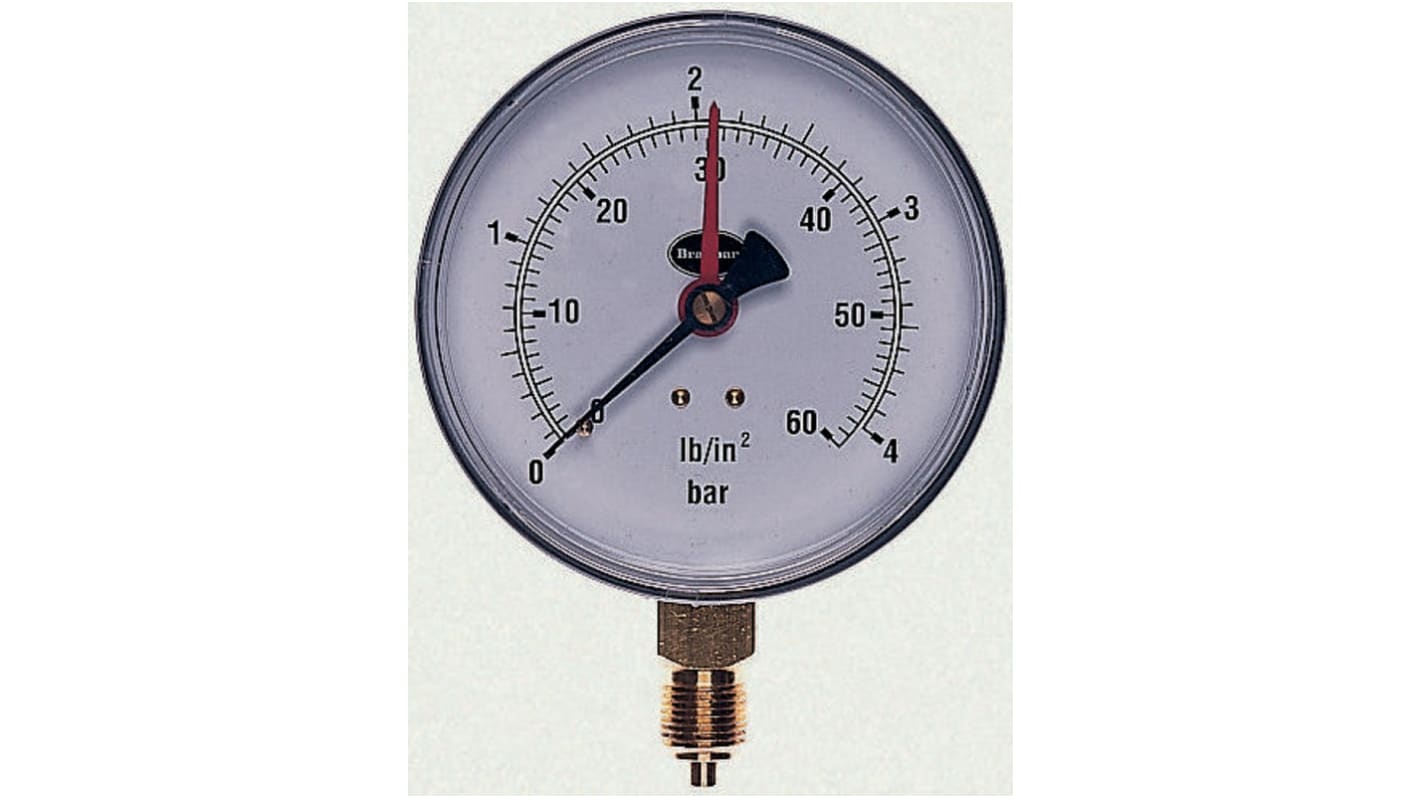

Brannan G 3/8 Type G Pressure Gauge, 100 mm, 2.5 bar

Name: Brannan G 3/8 Type G Pressure Gauge, 100 mm, 2.5 bar
Brand: Brannan
SKU: 324-8485
Price: 756.93 PHP
Availability: InStock

Subtotal (1 unit)*

PHP675.83

(exc. VAT)

PHP756.93

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP675.83

*price indicative

Specifications

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Brannan
	Maximum Pressure Measurement	2.5bar
	Product Type	Pressure Gauge
	Minimum Pressure Measurement	0bar
	Pressure Connection	Brass
	Connection Size	G 3/8
	Connection Type	Type G
	Case Material	Steel
	Dial Size	100mm
	Connection Location	Bottom Entry
	Maximum Operating Temperature	60°C
	Standards/Approvals	No

	Select all
	Brand Brannan
	Maximum Pressure Measurement 2.5bar
	Product Type Pressure Gauge
	Minimum Pressure Measurement 0bar
	Pressure Connection Brass
	Connection Size G 3/8
	Connection Type Type G
	Case Material Steel
	Dial Size 100mm
	Connection Location Bottom Entry
	Maximum Operating Temperature 60°C
	Standards/Approvals No

RoHS Status: Exempt

Bourdon tube pressure gauges for use on sealed (pumped) systems

Phosphor Bronze Element and Brass Movement

Dual scale bar & psi

Steel Case with Acrylic Window

Loose red pointer which can be set at normal operating pressure

Complete with safety blow out disc.

3/8 in BSP Bottom Entry connection

To BS EN837 -1:1998

Calibrated versions available where stated

BS EN837 -1:1998
