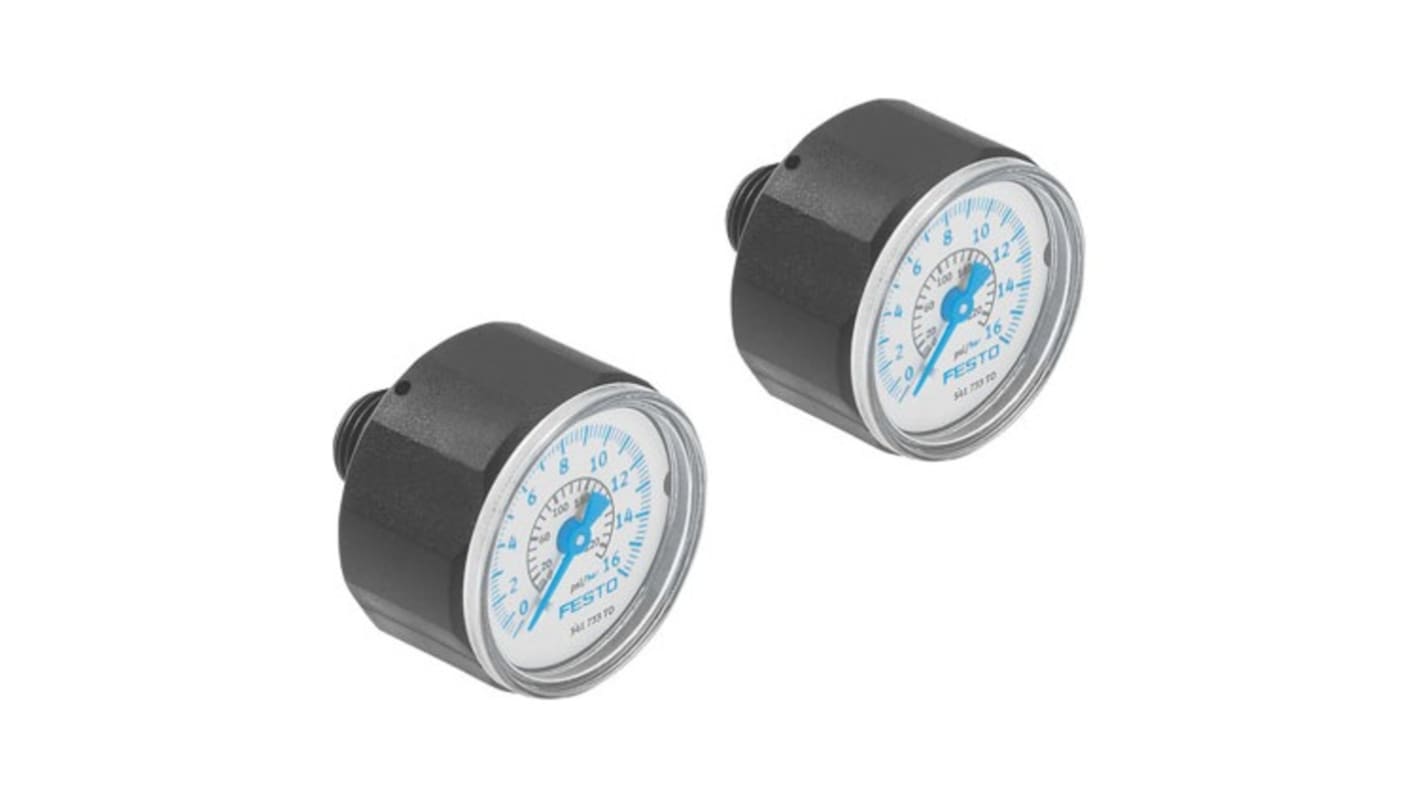

Festo R 1/8 in Male Bourdon tube pressure gauge, 27 mm, 10 bar
- RS Stock No.:
- 288-2481
- Mfr. Part No.:
- DPA-40-10-MA-SET
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP3,101.74
(exc. VAT)
PHP3,473.95
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from June 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP3,101.74 |
*price indicative
- RS Stock No.:
- 288-2481
- Mfr. Part No.:
- DPA-40-10-MA-SET
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Maximum Pressure Measurement | 10bar | |
| Product Type | Bourdon tube pressure gauge | |
| Pressure Connection | R 1/8 inch | |
| Connection Size | R 1/8 in | |
| Connection Type | Male | |
| Series | DPA-40-10-MA-SET | |
| Dial Size | 27mm | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN 837-1 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Maximum Pressure Measurement 10bar | ||
Product Type Bourdon tube pressure gauge | ||
Pressure Connection R 1/8 inch | ||
Connection Size R 1/8 in | ||
Connection Type Male | ||
Series DPA-40-10-MA-SET | ||
Dial Size 27mm | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN 837-1 | ||
- COO (Country of Origin):
- PL
The Festo Pressure Gauge Kit is a high-quality Bourdon tube pressure gauge designed for accurate measurements in various applications. With a nominal size of 27 and a male thread mounting type, this pressure gauge is suitable for operating pressures up to
Conforms to standard EN 837-1 for reliability and accuracy
Suitable for ambient temperatures ranging from 5°C to 60°C
Weighs only 16g for easy installation and portability
VDMA24364-B1/B2-L conformity for LABS (PWIS) applications
Optional mounting position for flexibility in installation
R1/8 pneumatic connection for compatibility with various systems
