WIKA DN 51 Screw Pressure Gauge, 63 mm, 25 bar
- RS Stock No.:
- 268-5708
- Mfr. Part No.:
- 48802123
- Manufacturer:
- WIKA
Subtotal (1 unit)*
PHP38,213.43
(exc. VAT)
PHP42,799.04
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from May 04, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP38,213.43 |
*price indicative
- RS Stock No.:
- 268-5708
- Mfr. Part No.:
- 48802123
- Manufacturer:
- WIKA
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Product Type | Pressure Gauge | |
| Maximum Pressure Measurement | 25bar | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Connection | Diaphragm Seal | |
| Connection Size | DN 51 | |
| Connection Type | Screw | |
| Series | DSS1 | |
| Case Material | 304 Stainless Steel | |
| Dial Size | 63 mm | |
| Connection Location | Rear | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | EP, USP, FDA | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Product Type Pressure Gauge | ||
Maximum Pressure Measurement 25bar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Connection Diaphragm Seal | ||
Connection Size DN 51 | ||
Connection Type Screw | ||
Series DSS1 | ||
Case Material 304 Stainless Steel | ||
Dial Size 63 mm | ||
Connection Location Rear | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals EP, USP, FDA | ||
- COO (Country of Origin):
- DE

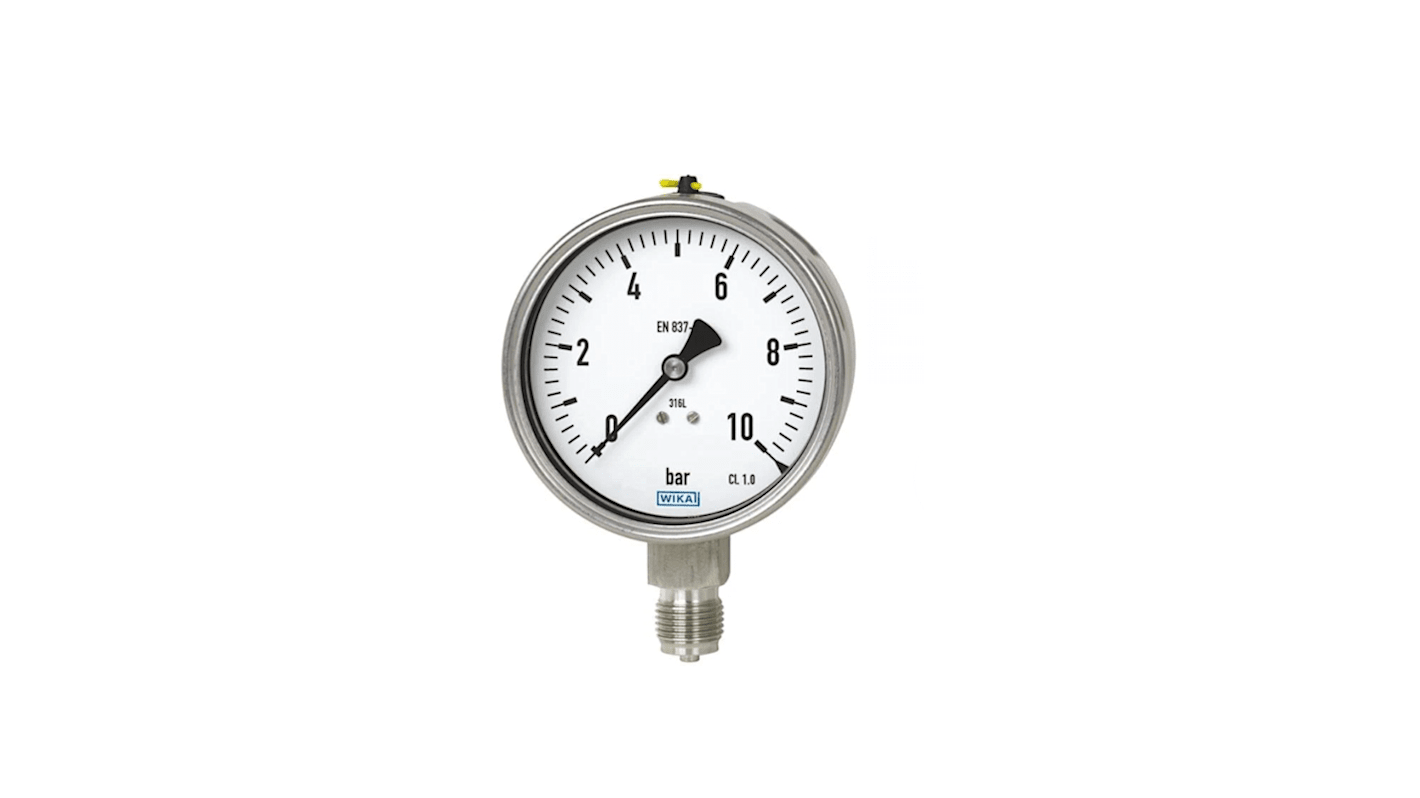

The WIKA Bourdon tube pressure gauge with liquid-filled case is suitable for high dynamic pressure loads and vibrations. With use of high-quality stainless steel material the instrument is suitable for process industry, liquid and gaseous media that are not highly viscous or crystallising and also in aggressive environments and harsh operations.
Shock resistance
Robust design
