WIKA G 3/8 Process Pressure Gauge, 100 mm, 1 bar
- RS Stock No.:
- 265-6700
- Mfr. Part No.:
- 48774550
- Manufacturer:
- WIKA

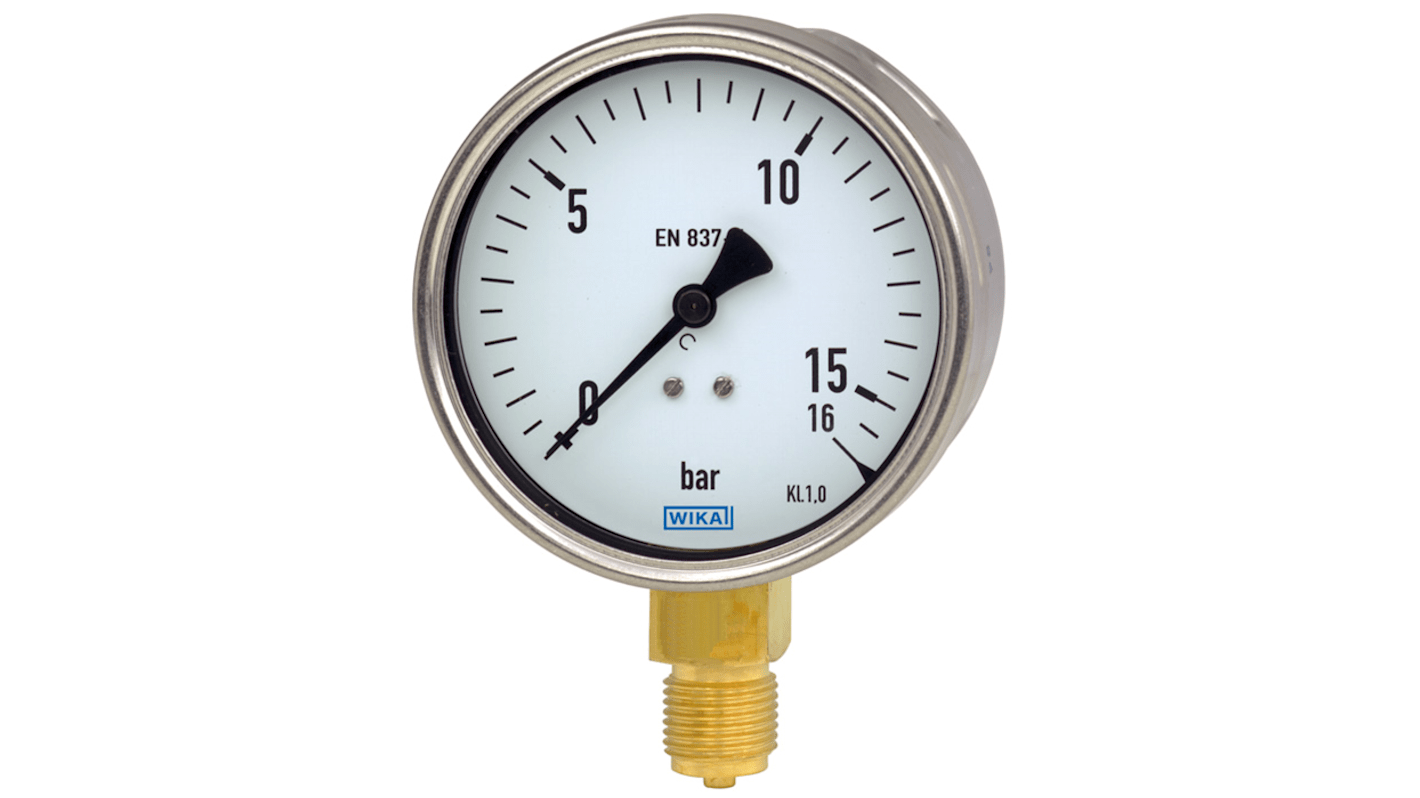

This image is representative of the product range
Subtotal (1 unit)*
PHP7,007.75
(exc. VAT)
PHP7,848.68
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 1 unit(s) shipping from July 27, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP7,007.75 |
*price indicative
- RS Stock No.:
- 265-6700
- Mfr. Part No.:
- 48774550
- Manufacturer:
- WIKA
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Product Type | Pressure Gauge | |
| Maximum Pressure Measurement | 1bar | |
| Minimum Pressure Measurement | -1bar | |
| Pressure Connection | G 3/8 B | |
| Connection Size | G 3/8 | |
| Connection Type | Process | |
| Series | 212.20 | |
| Case Material | Steel, Chromium, Nickel | |
| Dial Size | 100mm | |
| Dial Colour | White | |
| Connection Location | Bottom Entry | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN 837-1 | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Product Type Pressure Gauge | ||
Maximum Pressure Measurement 1bar | ||
Minimum Pressure Measurement -1bar | ||
Pressure Connection G 3/8 B | ||
Connection Size G 3/8 | ||
Connection Type Process | ||
Series 212.20 | ||
Case Material Steel, Chromium, Nickel | ||
Dial Size 100mm | ||
Dial Colour White | ||
Connection Location Bottom Entry | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN 837-1 | ||
- COO (Country of Origin):
- PL
The WIKA mechanical Bourdon tube pressure gauge is constructed with a case from stainless steel and wetted parts from copper alloy. With an accuracy class of 1.0, this pressure gauge is suitable for the process industry. The modular design enables a multitude of combinations of process connections, nominal sizes and scale ranges. This high variance enables universal use of the instrument in the industrial sector.
Long service life, robust
Cost effective and reliable
