Bourdon G 1/4 Threaded Pressure Gauge, 63 mm, 0.6 bar
- RS Stock No.:
- 253-0476
- Mfr. Part No.:
- MEX3-F21.B72
- Manufacturer:
- Bourdon
Subtotal (1 unit)*
PHP8,620.04
(exc. VAT)
PHP9,654.44
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 06, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP8,620.04 |
*price indicative
- RS Stock No.:
- 253-0476
- Mfr. Part No.:
- MEX3-F21.B72
- Manufacturer:
- Bourdon
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourdon | |
| Product Type | Pressure Gauge | |
| Maximum Pressure Measurement | 0.6bar | |
| Minimum Pressure Measurement | -1bar | |
| Connection Size | G 1/4 | |
| Connection Type | Threaded | |
| Series | MEX3 | |
| Dial Colour | White | |
| Connection Location | Rear | |
| Dial Size | 63 mm | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | EN 60529, EN 837-1, ATEX Ex II 2 GDc-IM2c | |
| Select all | ||
|---|---|---|
Brand Bourdon | ||
Product Type Pressure Gauge | ||
Maximum Pressure Measurement 0.6bar | ||
Minimum Pressure Measurement -1bar | ||
Connection Size G 1/4 | ||
Connection Type Threaded | ||
Series MEX3 | ||
Dial Colour White | ||
Connection Location Rear | ||
Dial Size 63 mm | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals EN 60529, EN 837-1, ATEX Ex II 2 GDc-IM2c | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

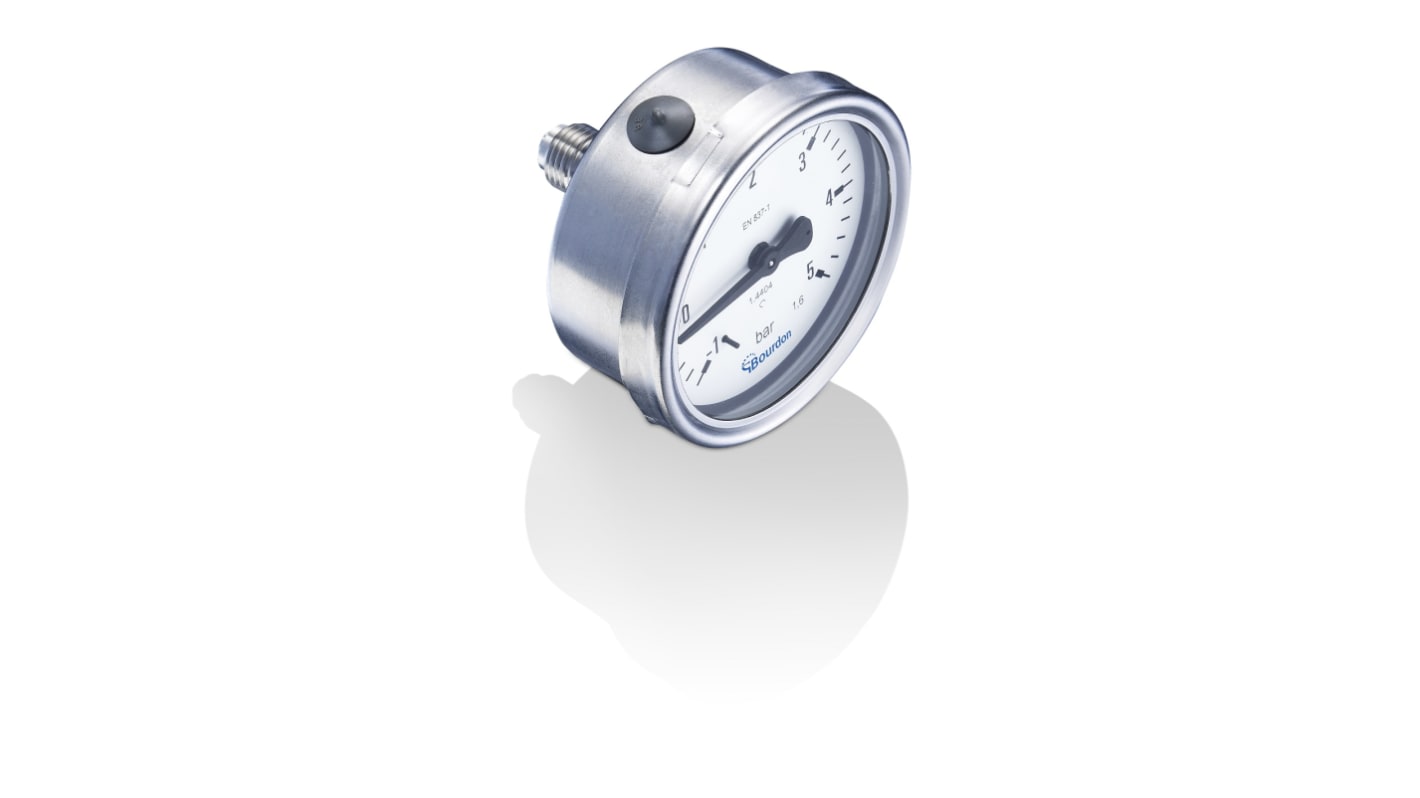

The Bourdon MEX3 is stainless steel pressure gauge has nominal size of Ø 63 with G1/4 connection and protected with IP65 rating.
Class 1.6 according to EN 837-1
Wetted parts Stainless steel
Case with crimped bezel ring
Lloyds Register Approval
Option Liquid-filled for applications with pulsations or vibrations
Option Case material 1.4404 (316L) for aggressive atmosphere Technical
