Bourdon G 1/4 Analogue Pressure Gauge 160bar Bottom Entry 63mm Outside Diameter

View all Pressure Gauges

Subtotal (1 unit)*

PHP7,265.21

(exc. VAT)

PHP8,137.04

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from February 05, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP7,265.21

*price indicative

RS Stock No.:
253-0360
Mfr. Part No.:
MEX3-D20.B33
Manufacturer:
Bourdon
Find similar products by selecting one or more attributes.
Select all

Brand

Bourdon

Maximum Pressure Measurement

160bar

Minimum Pressure Measurement

0bar

Mounting Type

Bottom Entry

Display Type

Analogue

Connection Size

G 1/4

Gauge Outside Diameter

63mm

RoHS Status: Exempt

COO (Country of Origin):
FR

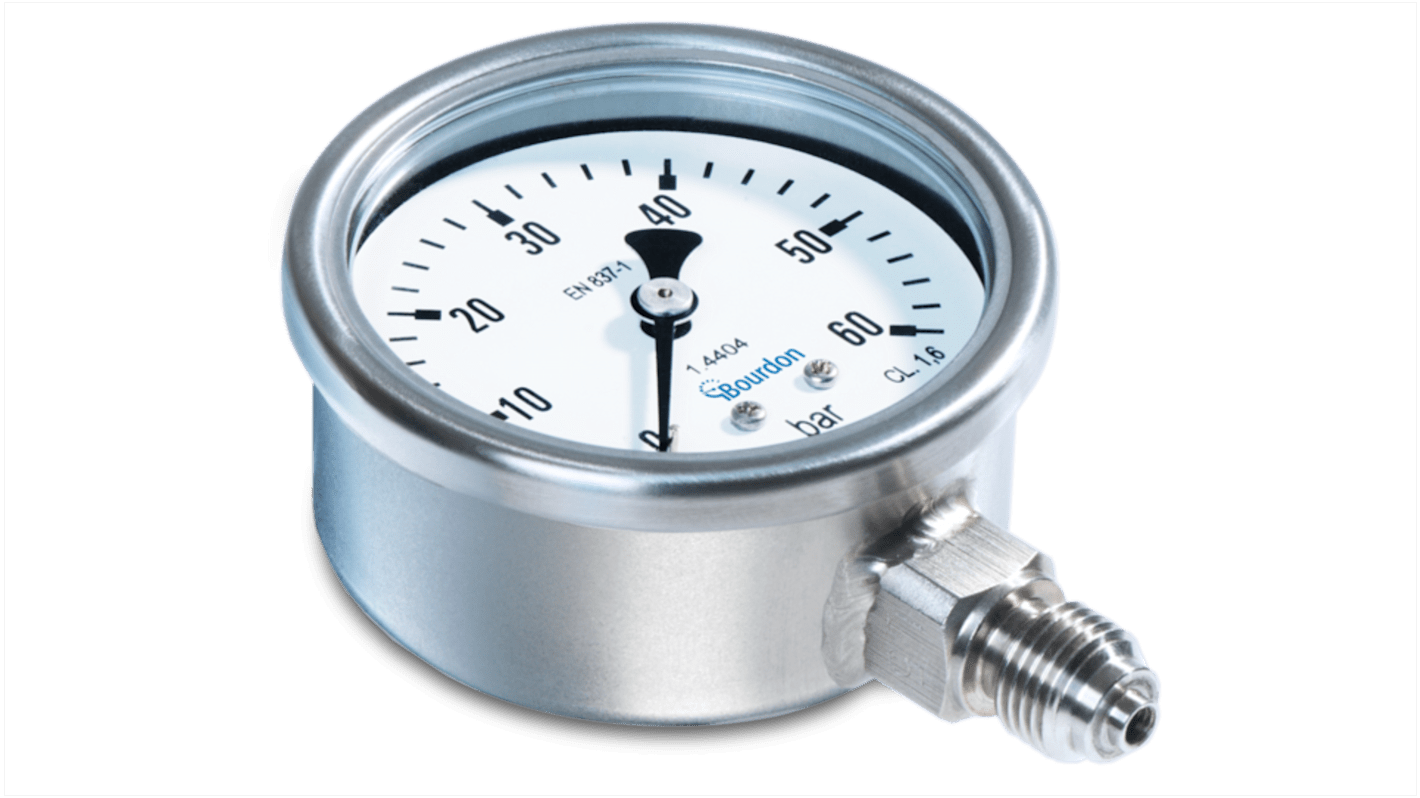

The Bourdon MEX3 is stainless steel pressure gauge has nominal size of Ø 63 with G1/4 connection and protected with IP65 rating.

Class 1.6 according to EN 837-1
Wetted parts Stainless steel
Case with crimped bezel ring
Lloyds Register Approval
Option Liquid-filled for applications with pulsations or vibrations
Option Case material 1.4404 (316L) for aggressive atmosphere Technical
