WIKA G 1/4 MNPT Pressure Gauge, 100 mm, 10 bar

View all Pressure Gauges

Subtotal (1 unit)*

PHP1,441.36

(exc. VAT)

PHP1,614.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 35 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP1,441.36

*price indicative

RS Stock No.:
222-7892
Mfr. Part No.:
9070478
Manufacturer:
WIKA
Find similar products by selecting one or more attributes.
Select all

Brand

WIKA

Product Type

Pressure Gauge

Maximum Pressure Measurement

10bar

Minimum Pressure Measurement

0bar

Pressure Connection

Copper Alloy

Connection Size

G 1/4

Connection Type

MNPT

Series

111.XX

Case Material

Plastic

Connection Location

Back Entry

Dial Size

100mm

Dial Colour

White

Maximum Operating Temperature

60°C

Standards/Approvals

CE, EAC

RoHS Status: Exempt

COO (Country of Origin):
PL

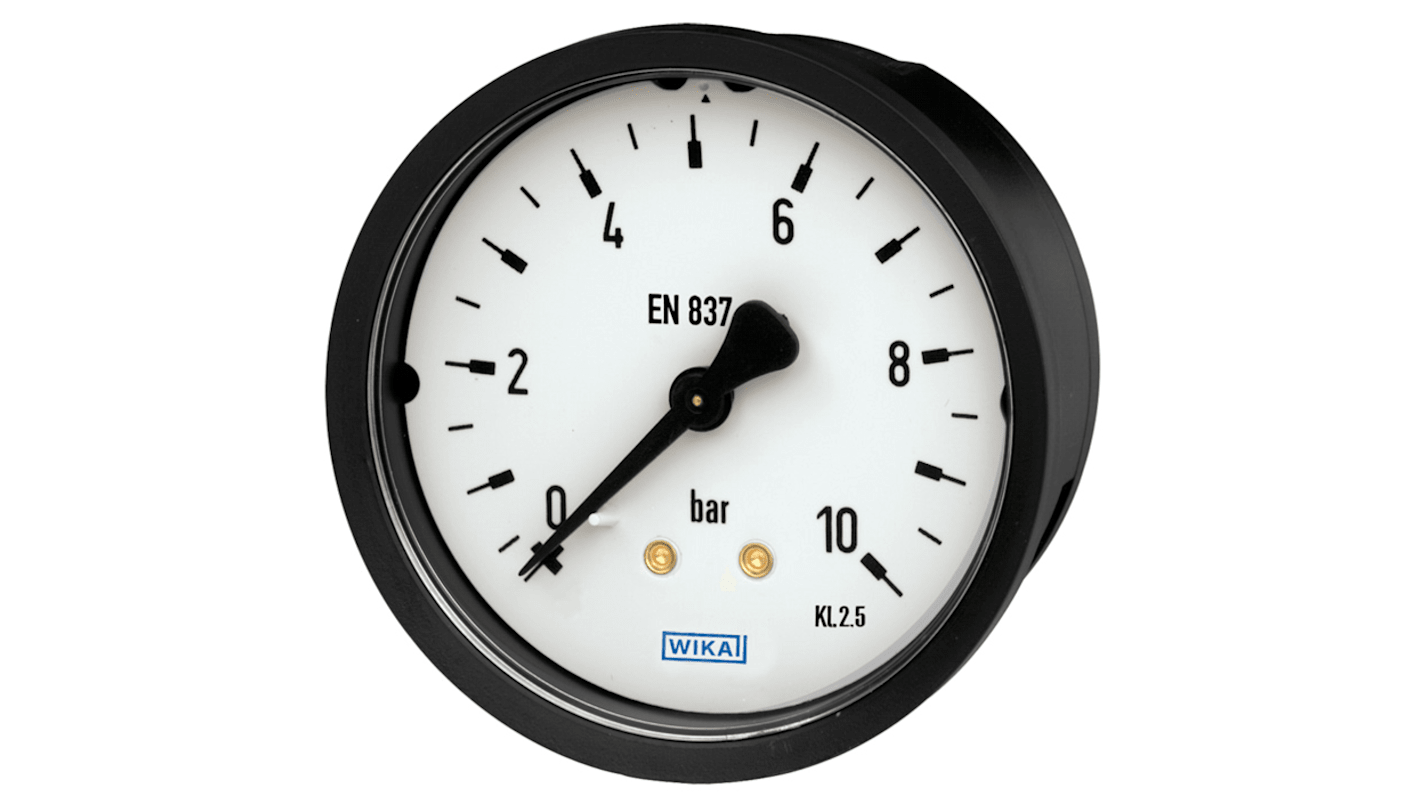

The Wika model 111 pressure gauge are based on the proven bourdon tube measuring system. The modular design enables a multitude of combinations of case materials, process connections, nominal sizes and scale range. The scale range of gauge is 0 to 10 bar.

Reliable and cost effective

Nominal size is 100 mm

Design per EN 837-1
