Festo G 1/4 Threaded Pressure Gauge, 50 mm, 10 bar
- RS Stock No.:
- 202-3030
- Mfr. Part No.:
- MA-50-10-1/4-EN
- Manufacturer:
- Festo
Bulk discount available
Subtotal (1 unit)*
PHP1,529.66
(exc. VAT)
PHP1,713.22
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 107 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP1,529.66 |
| 5 + | PHP1,491.42 |
*price indicative
- RS Stock No.:
- 202-3030
- Mfr. Part No.:
- MA-50-10-1/4-EN
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Maximum Pressure Measurement | 10bar | |
| Product Type | Pressure Gauge | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Connection | Brass | |
| Connection Size | G 1/4 | |
| Connection Type | Threaded | |
| Series | MA | |
| Case Material | ABS | |
| Dial Size | 50 mm | |
| Connection Location | Dial | |
| Dial Colour | Black | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Maximum Pressure Measurement 10bar | ||
Product Type Pressure Gauge | ||
Minimum Pressure Measurement 0bar | ||
Pressure Connection Brass | ||
Connection Size G 1/4 | ||
Connection Type Threaded | ||
Series MA | ||
Case Material ABS | ||
Dial Size 50 mm | ||
Connection Location Dial | ||
Dial Colour Black | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- PL

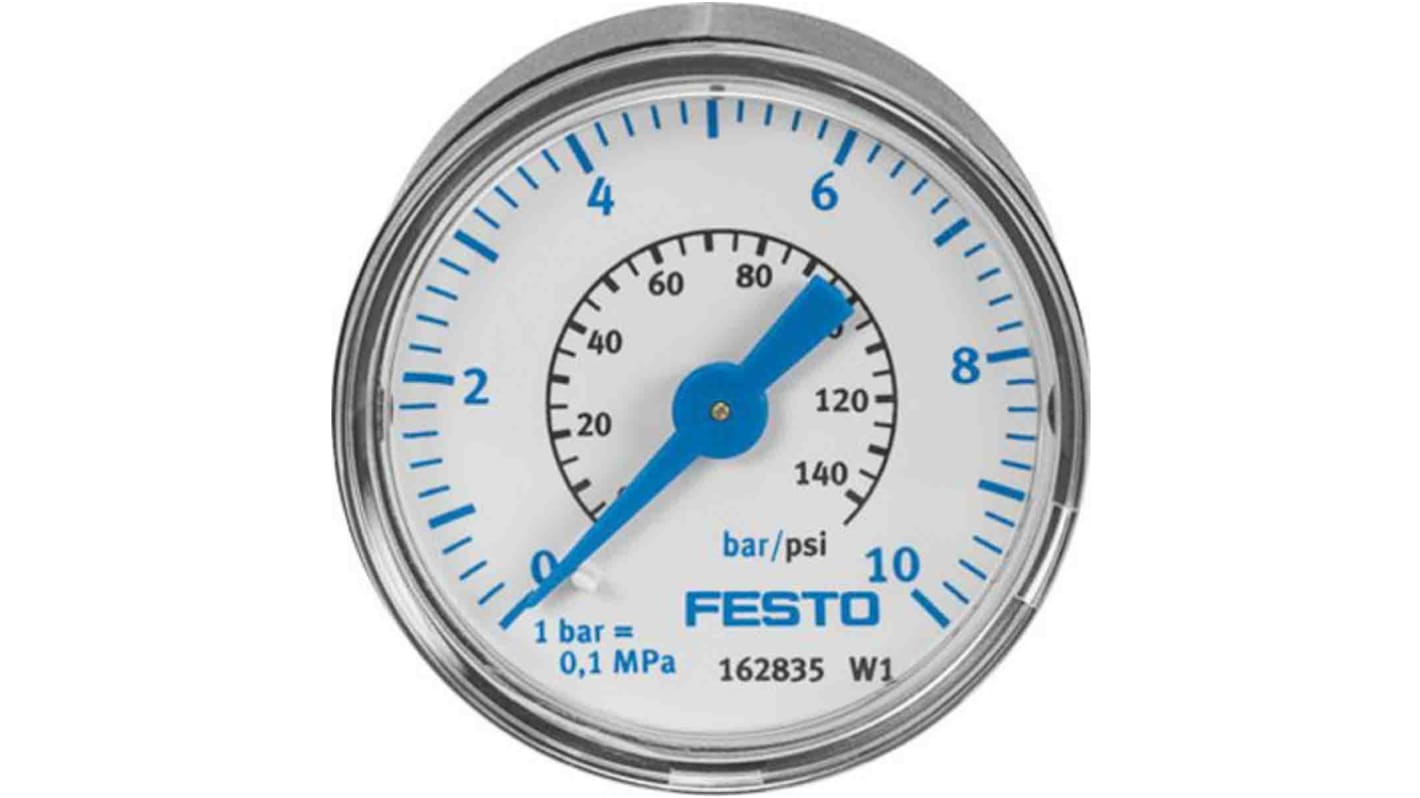

Festo Pneumatic Pressure Gauge, G 1/4, 10 Bar - MA-50-10-1/4-EN
Monitor the positive pressure in your pneumatic system with this analogue pressure gauge from Festo. It can help you measure levels accurately to help prevent damage or downtime caused by spikes in pressure. The gauge measures pressures from zero up to 10 bar or 145 psi and is built to the classic bourdon-tube design for simple and reliable operation. The thread is made from corrosion-resistant brass, with a tough ABS (acrylonitrile butadiene styrene) housing and a durable PS (polystyrene) screen. The unit is fitted with a standard G 1/4 connection.
• Operating temperature range of -20°C to +60°C, makes it suitable for a wide range of environments
• Rear-side central connection for space-efficient installation and high visibility
• IP (ingress protection) rating of 43, means it's protected against tools, small wires greater than 1 mm and light water sprays
Application Information
• Air-conditioning systems
• Heating systems
• Compressors
• Medical engineering
Do I need to calibrate my pressure gauge?
Calibrating your pressure gauge will ensure it operates correctly and within the manufacturer's specifications. RS offers an in-house calibration service.
