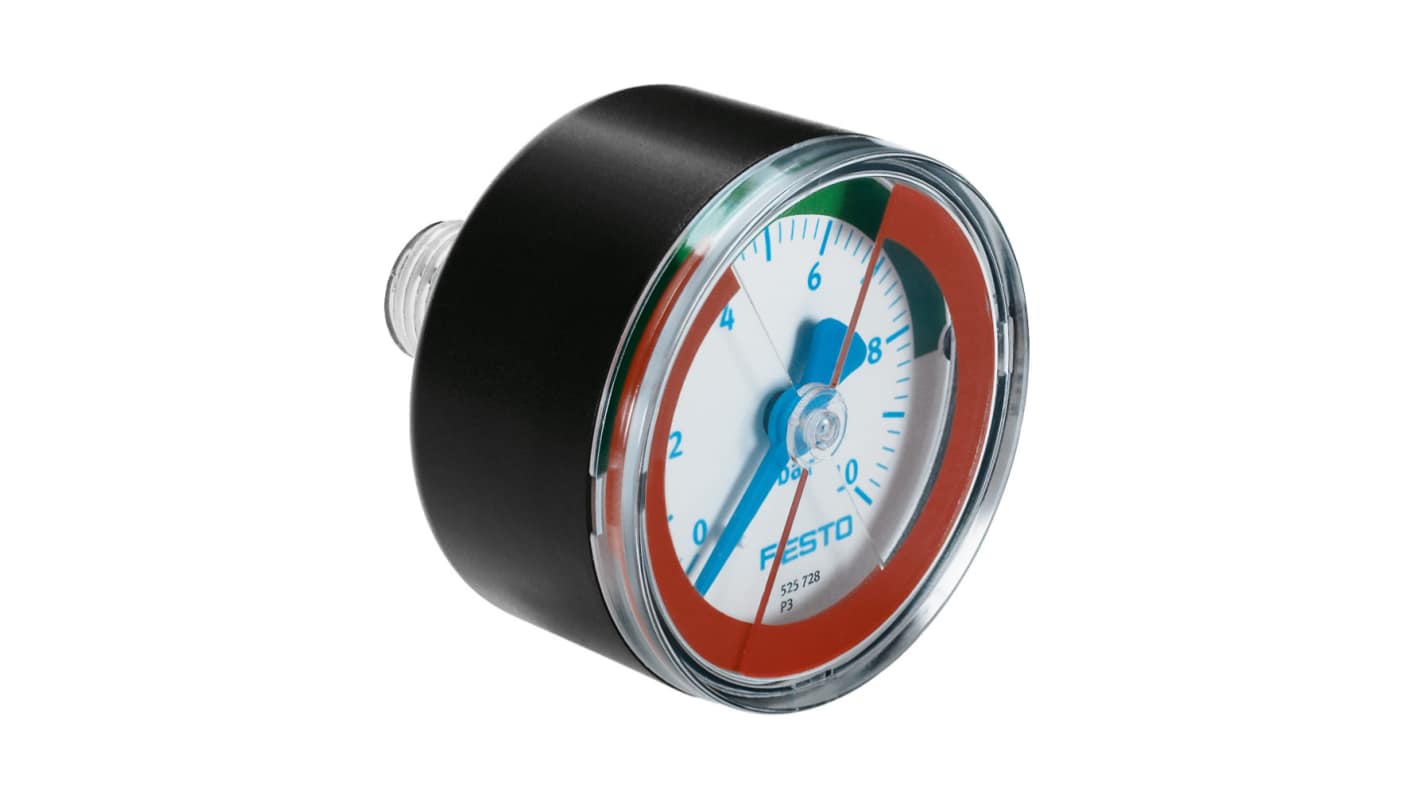

Festo R 1/8 Threaded Pressure Gauge, 40 mm, 10 bar
- RS Stock No.:
- 175-4649
- Mfr. Part No.:
- MA-40-10-R1/8-E-RG
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP1,912.94
(exc. VAT)
PHP2,142.49
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP1,912.94 |
*price indicative
- RS Stock No.:
- 175-4649
- Mfr. Part No.:
- MA-40-10-R1/8-E-RG
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Maximum Pressure Measurement | 10bar | |
| Product Type | Pressure Gauge | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Connection | Brass | |
| Connection Size | R 1/8 | |
| Connection Type | Threaded | |
| Accuracy | 2.5 % | |
| Series | MA | |
| Case Material | ABS | |
| Dial Size | 40mm | |
| Dial Colour | Black | |
| Connection Location | Back Entry | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Maximum Pressure Measurement 10bar | ||
Product Type Pressure Gauge | ||
Minimum Pressure Measurement 0bar | ||
Pressure Connection Brass | ||
Connection Size R 1/8 | ||
Connection Type Threaded | ||
Accuracy 2.5 % | ||
Series MA | ||
Case Material ABS | ||
Dial Size 40mm | ||
Dial Colour Black | ||
Connection Location Back Entry | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL
Festo Series MA Pressure Gauge, 10 Bar Maximum Pressure Measurement, ABS Case - MA-40-10-R1/8-E-RG, Numeric Part Number: 525725
The Festo MA pressure gauge is designed for accurate industrial pressure measurement. Featuring an analogue display, it enables easy reading of pressure levels from 0 to 10 Bar. With a compact 40mm diameter, it is suitable for a range of applications, housed in a robust ABS case ensuring durability in demanding environments.
Features & Benefits
• High accuracy with a measurement class of 2.5
• Compact design with a 40mm diameter for versatile use
• Back entry design simplifies installation
• Compatible with inert gases and neutral fluids
• Operating temperature range of -20 to +60°C
Applications
• Suitable for pneumatic systems
• Ideal for laboratory equipment
• Applicable in general industrial environments
• Utilised in HVAC systems
• Effective in fluid handling processes
What standards does this pressure gauge conform to?
It conforms to the EN 837-1 standard for pressure gauges.
