onsemi High Side 1, Adjustable Power Switch IC 32-Pin, QFNW-32

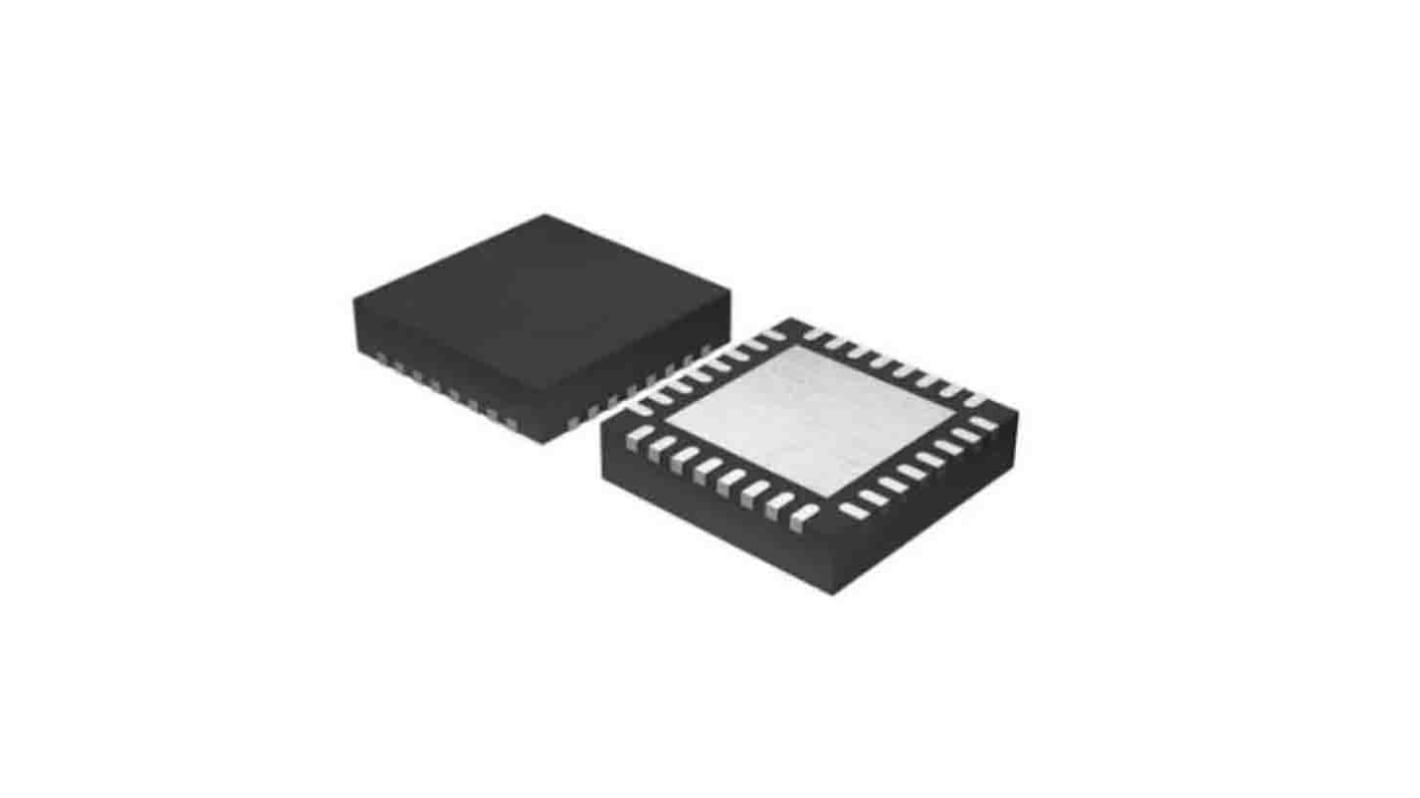

This image is representative of the product range

View all Power Switch ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
205-2422
Mfr. Part No.:
NCV81599MWTXG
Manufacturer:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Product Type

Power Switch IC

Power Switch Type

Adjustable

Power Switch Topology

High Side

Number of Outputs

2

Number of Inputs

1

Mount Type

Surface

Minimum Supply Voltage

4.5V

Package Type

QFNW-32

Maximum Supply Voltage

28V

Pin Count

32

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Standards/Approvals

RoHS

Automotive Standard

No

Series

NCV81599

The ON Semiconductor USB Power Delivery (PD) Controller synchronous buck-boost that is optimized for converting battery voltage or adapter voltage into power supply rails required in desktop, docking station, hubs, and car charging accessory applications. It is capable of delivering power to meet USB-PD standard for type C applications. The buck-boost operates in a seamless manner when transitioning between buck to boost or boost to buck operation. This is capable of operating at a 100% duty cycle.

Wide input voltage range is from 4.5V to 32V for NCV81599

Wide operating range for various applications

Dynamically programmed frequency from 150kHz to 1.2MHz

Allows for uC to interface with device to meet USB-PD power requirements

I2C interface

Package is 5mm x 5mm QFN32

Over-Voltage and Over-Current Protection
