RS PRO, YB12 8 A 250V ac 50Hz, 60 Hz, Chassis Mount EMI Filter, Fast-On 1 Phase

RS Stock No.:: 273-4900
Manufacturer:: RS PRO

RS PRO, YB12 8 A 250V ac 50Hz, 60 Hz, Chassis Mount EMI Filter, Fast-On 1 Phase

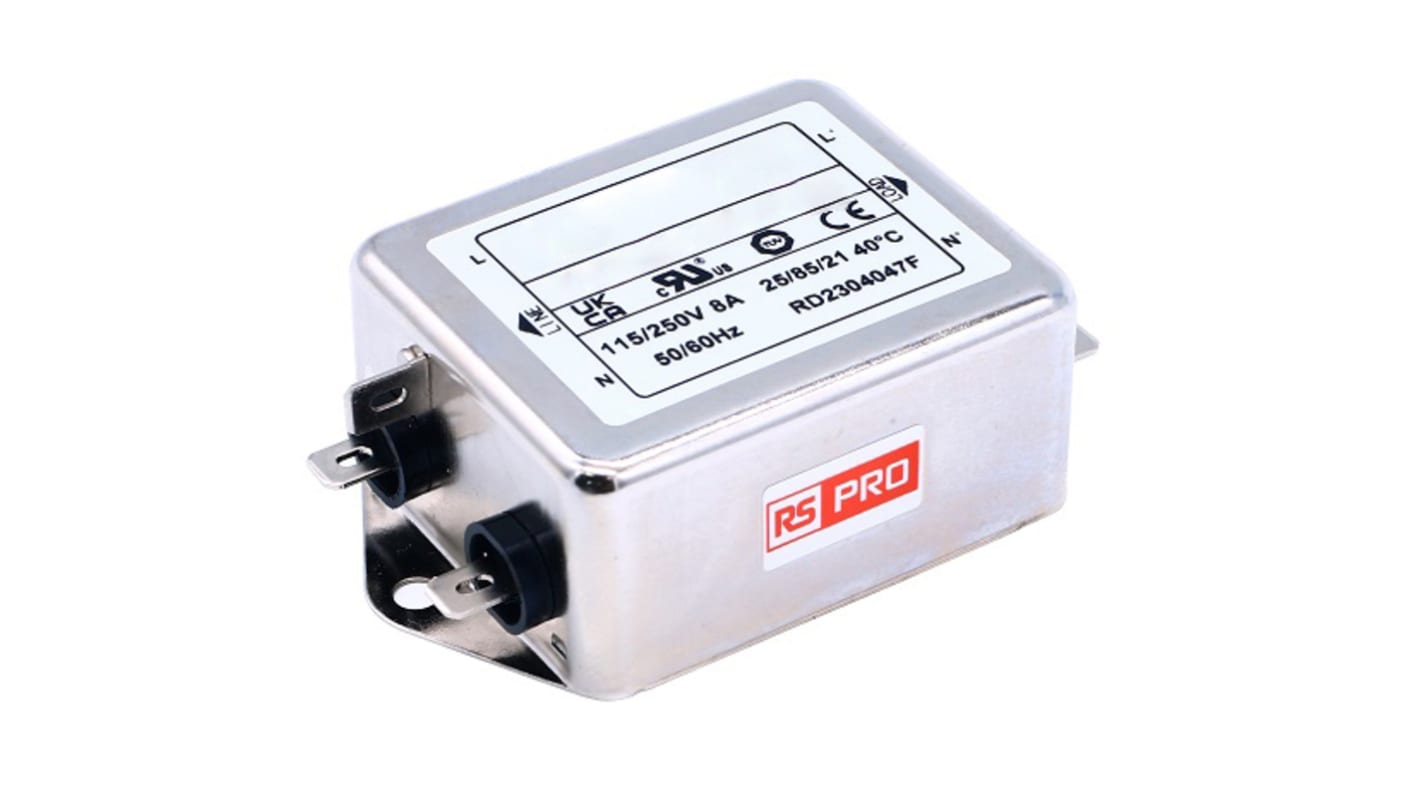

This image is representative of the product range

Subtotal (1 box of 50 units)*

PHP75,421.85

(exc. VAT)

PHP84,472.45

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

Shipping from December 16, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Box*
50 +	PHP1,508.437	PHP75,421.85

*price indicative

RS Stock No.:: 273-4900
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Maximum Current	8A
	Product Type	EMI Filter
	Maximum Voltage	250V ac
	Mount Type	Chassis Mount
	Termination Style	Fast-On
	Number of Phases	1
	Series	YB12
	Operating Frequency	50, 60Hz
	Minimum Operating Temperature	-25°C
	Leakage Current	0.5mA
	Maximum Operating Temperature	85°C
	Length	63mm
	Depth	51mm
	Height	29mm
	Standards/Approvals	CQC GB 15288/GB 15287-2008, IEC/EN 60939, UL 1283, CSA C22.2 no. 8

	Select all
	Brand RS PRO
	Maximum Current 8A
	Product Type EMI Filter
	Maximum Voltage 250V ac
	Mount Type Chassis Mount
	Termination Style Fast-On
	Number of Phases 1
	Series YB12
	Operating Frequency 50, 60Hz
	Minimum Operating Temperature -25°C
	Leakage Current 0.5mA
	Maximum Operating Temperature 85°C
	Length 63mm
	Depth 51mm
	Height 29mm
	Standards/Approvals CQC GB 15288/GB 15287-2008, IEC/EN 60939, UL 1283, CSA C22.2 no. 8

COO (Country of Origin):: CN

RS PRO EMI Filter

This range of RS PRO Power Line Filters are Compact in size and can be applied to various situations and environments. Having been designed with the highest quality and versatility in mind these EMI filters can be connected to electrical devices to prevent external radio frequencies from impairing performance.

The RS PRO EMI Filters are a customized product according to customers’ requirements. This YB12 filters are also available as two stage filters in noisy environment. There are a variety of parts and combinations to meet different customers EMC tests.

Features and Benefits

High performance

IP40 degree protection

CE and UKCA approved

REACH and RoHS approved

General purpose filtering performance

Applications

These RS PRO EMI Filters prevent electromagnetic noise and interference even when exposed to unpredictable electromagnetic environments. This particular range of filters are recommended for electrical and electronic, medical, new energy, communication and office automation equipment.
