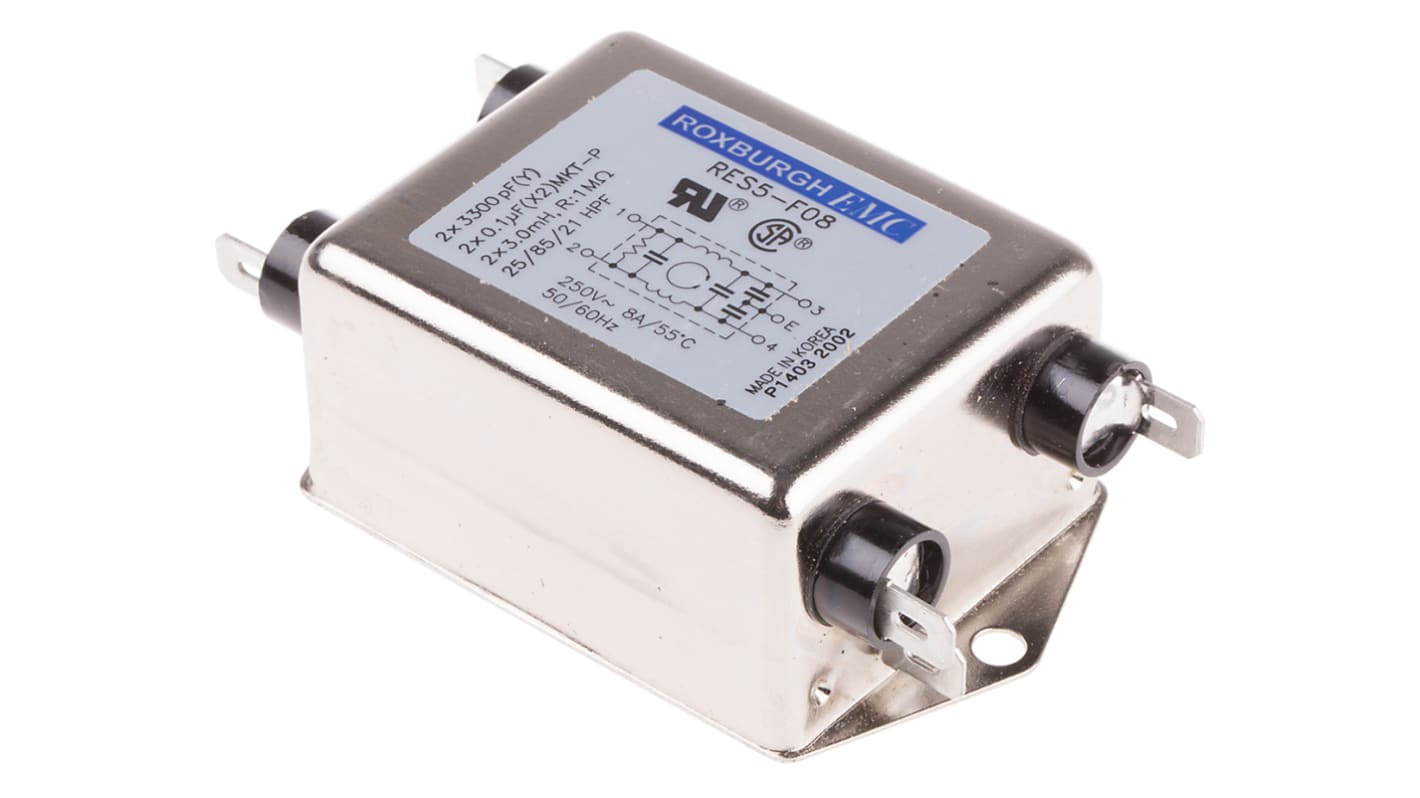

RS PRO 8A 250 V ac/dc 50/60Hz, Chassis Mount RFI Filter, Fast-On, Single Phase
- RS Stock No.:
- 386-4065
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
PHP2,076.42
(exc. VAT)
PHP2,325.59
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 48 unit(s) shipping from December 08, 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 19 | PHP2,076.42 |
| 20 - 24 | PHP2,014.15 |
| 25 - 49 | PHP1,953.72 |
| 50 + | PHP1,895.10 |
*price indicative
- RS Stock No.:
- 386-4065
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Current Rating | 8A | |
| Maximum Voltage Rating | 250 V ac/dc | |
| Mounting Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Series | RES5F | |
| Number of Stages | Single Stage | |
| Operating Frequency | 50/60Hz | |
| Length | 83.7mm | |
| Depth | 51.8mm | |
| Height | 32mm | |
| Capacitance | 3.3 nF, 100nF | |
| Dimensions | 83.7 x 51.8 x 32mm | |
| Inductance | 3 mH | |
| Leakage Current | 0.5 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 1MΩ | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Current Rating 8A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Series RES5F | ||
Number of Stages Single Stage | ||
Operating Frequency 50/60Hz | ||
Length 83.7mm | ||
Depth 51.8mm | ||
Height 32mm | ||
Capacitance 3.3 nF, 100nF | ||
Dimensions 83.7 x 51.8 x 32mm | ||
Inductance 3 mH | ||
Leakage Current 0.5 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Resistance 1MΩ | ||
RES5F Series
Available in 5 current ratings
Meets UL 1283 and overvoltage II category of IEC 664
250 Faston terminals
Meets UL 1283 and overvoltage II category of IEC 664
250 Faston terminals
Approvals
UL recognised component, CSA certified, TUV
Approvals
UL; CSA; TUV
