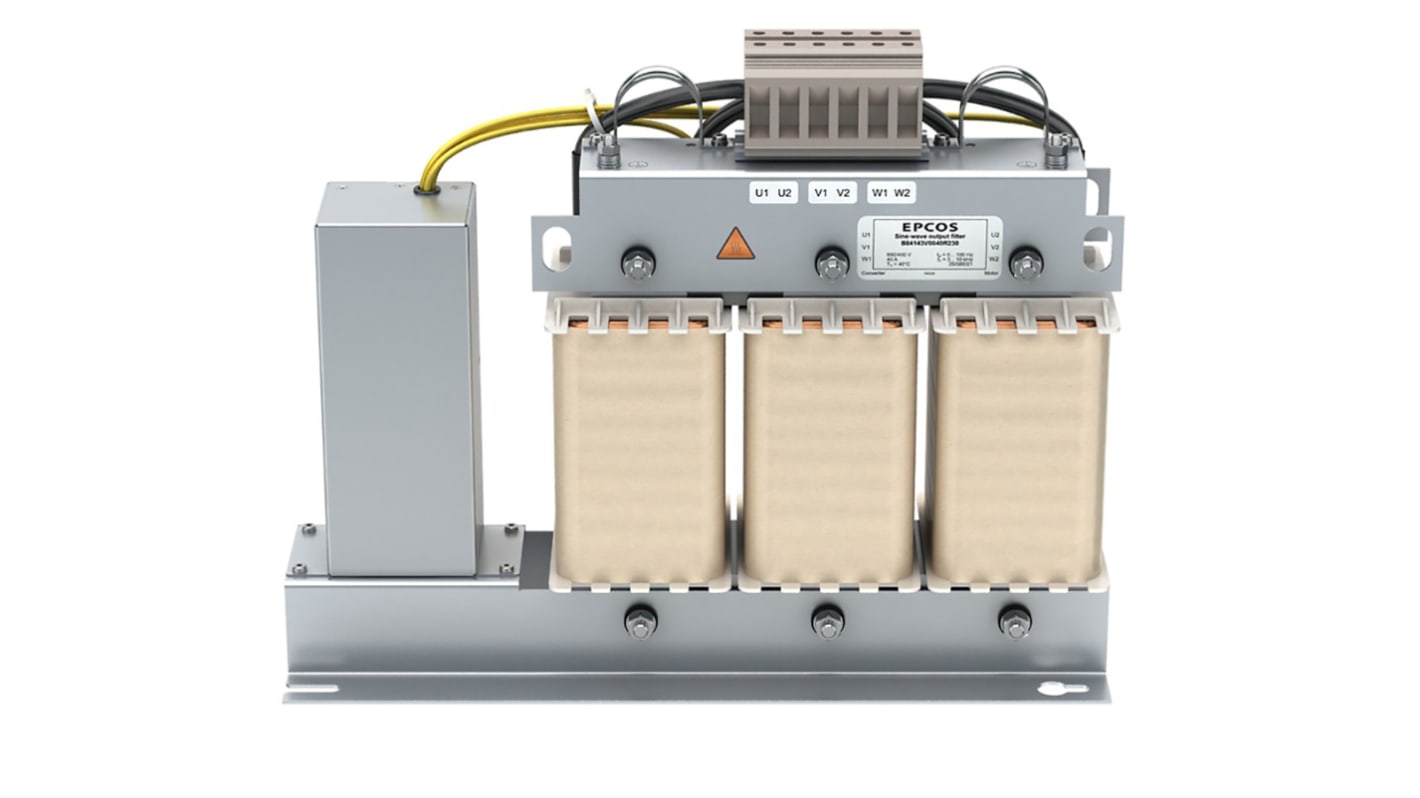

TDK, B84143V*R/S230 26 A 690V ac 50Hz, 60 Hz, Wall Mount EMC Filter, Terminal Block 3 Phase
- RS Stock No.:
- 191-9682
- Mfr. Part No.:
- B84143V0026R230
- Manufacturer:
- TDK
Get a bulk buy discount
Add 10 more to save PHP29,448.20
View bulk pricing optionsSubtotal (1 unit)*
PHP102,044.06
(exc. VAT)
PHP114,289.35
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Saving |
|---|---|---|
| 1 - 9 | PHP102,044.06 | - |
| 10 + | PHP99,099.24 | PHP29,448.20 |
*price indicative
- RS Stock No.:
- 191-9682
- Mfr. Part No.:
- B84143V0026R230
- Manufacturer:
- TDK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | EMC Filter | |
| Maximum Current | 26A | |
| Maximum Voltage | 690V ac | |
| Mount Type | Wall Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 3 | |
| Series | B84143V*R/S230 | |
| Operating Frequency | 50Hz, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 380mm | |
| Depth | 141mm | |
| Height | 285mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type EMC Filter | ||
Maximum Current 26A | ||
Maximum Voltage 690V ac | ||
Mount Type Wall Mount | ||
Termination Style Terminal Block | ||
Number of Phases 3 | ||
Series B84143V*R/S230 | ||
Operating Frequency 50Hz, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Length 380mm | ||
Depth 141mm | ||
Height 285mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- HU
Reduction of motor noise and eddy current losses
Generation of sinusoidal phase-to-phase voltage with low ripple
Dv/dt reduction
Easy to install
Optimized for long motor cables and operation under full load
Natural cooling
Wiring between inverter and filter must be shorter than 10 meters!
Applications
Frequency converters for motor drives, e.g
Elevators
Pumps
Conveyer systems
HVAC systems (heating, ventilation and air conditioning)
