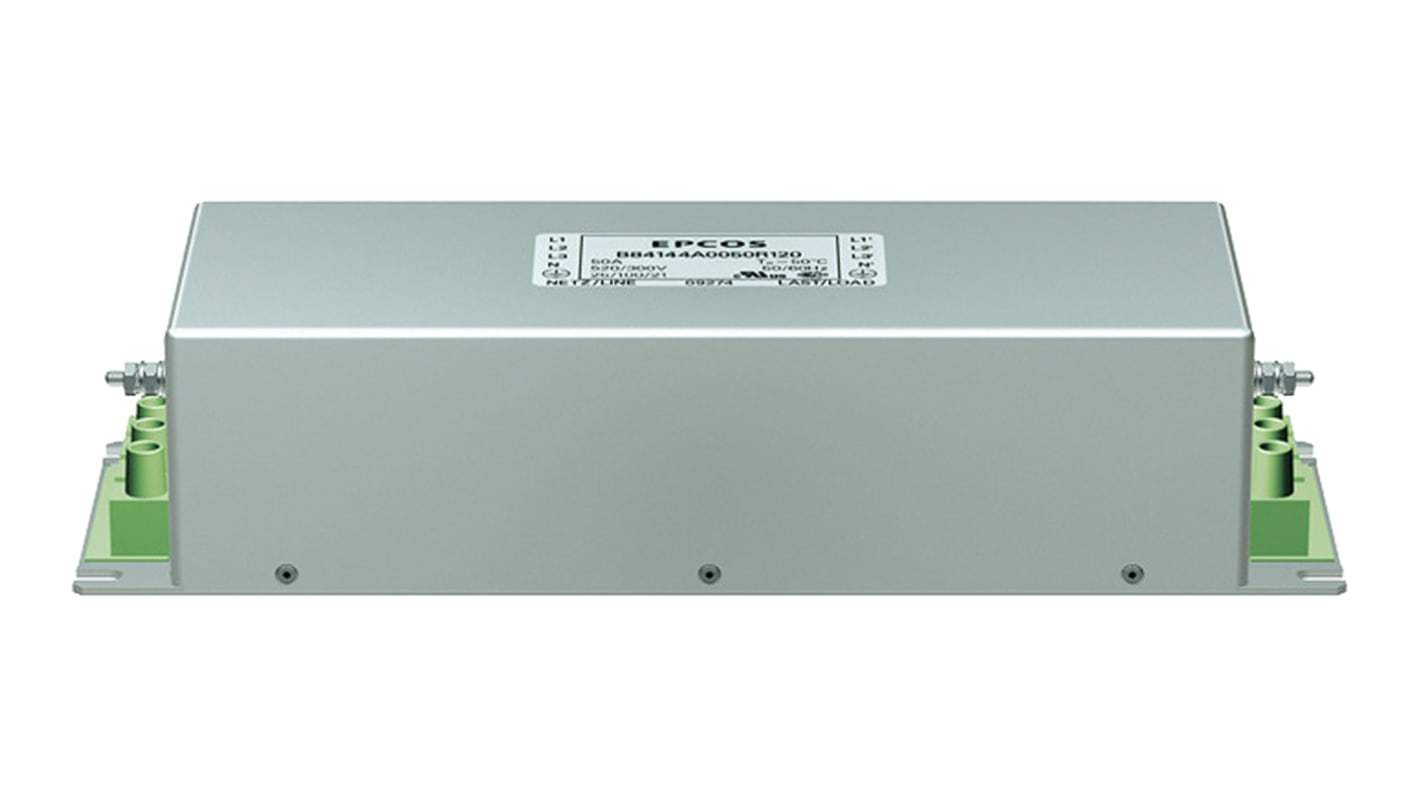

TDK, B84144A*R120 36 A 520V ac 50Hz, 60 Hz, Flange EMC Filter, Screw 3 Phase
- RS Stock No.:
- 167-8286
- Mfr. Part No.:
- B84144A0036R120
- Manufacturer:
- TDK
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 167-8286
- Mfr. Part No.:
- B84144A0036R120
- Manufacturer:
- TDK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | EMC Filter | |
| Maximum Current | 36A | |
| Maximum Voltage | 520V ac | |
| Mount Type | Flange | |
| Packaging | Box | |
| Termination Style | Screw | |
| Number of Phases | 3 | |
| Series | B84144A*R120 | |
| Number of Stages | 1 | |
| Operating Frequency | 50Hz, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 13mA | |
| Maximum Operating Temperature | 100°C | |
| Length | 90mm | |
| Depth | 272mm | |
| Height | 60mm | |
| Resistance | 2.7mΩ | |
| Standards/Approvals | UL1283 | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type EMC Filter | ||
Maximum Current 36A | ||
Maximum Voltage 520V ac | ||
Mount Type Flange | ||
Packaging Box | ||
Termination Style Screw | ||
Number of Phases 3 | ||
Series B84144A*R120 | ||
Number of Stages 1 | ||
Operating Frequency 50Hz, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 13mA | ||
Maximum Operating Temperature 100°C | ||
Length 90mm | ||
Depth 272mm | ||
Height 60mm | ||
Resistance 2.7mΩ | ||
Standards/Approvals UL1283 | ||
- COO (Country of Origin):
- CN
B84144A*R120 Series
Easy to install 4-line filter in a Metal case and potted in Polyurethane (UL 94 V-0)
Optimised for long motor cables and operation under full load
Applications include: Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies and Industrial applications
Approvals
UL and cUL pending
Standards
EN 133200, UL 1283, CSA C22.2 No.8
