EPCOS, B84144A 50 A 520V ac 60 Hz, Flange EMC Filter, Screw 3 Phase
- RS Stock No.:
- 467-917
- Mfr. Part No.:
- B84144A0050R120
- Manufacturer:
- EPCOS

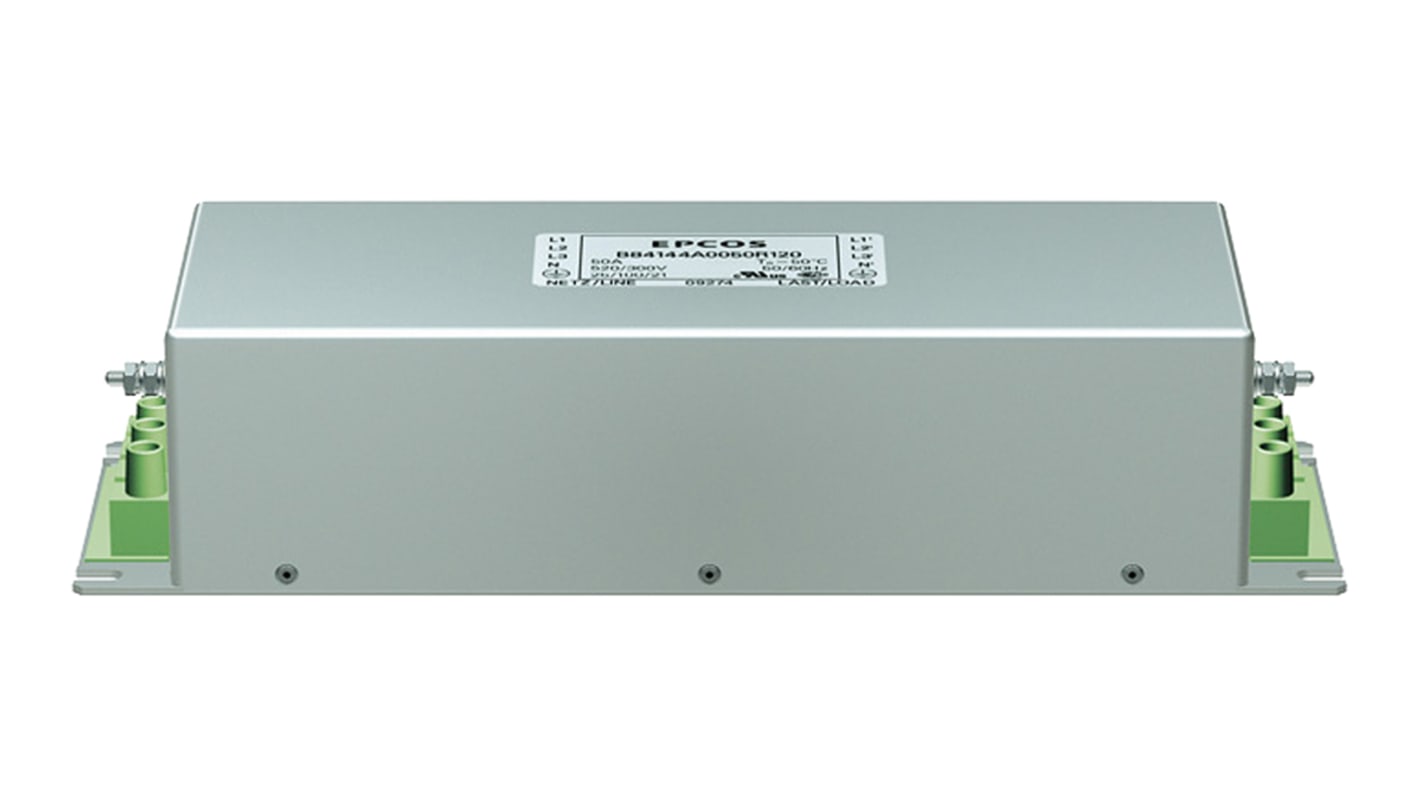

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP18,141.54
(exc. VAT)
PHP20,318.52
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 20 unit(s) shipping from March 19, 2026
- Plus 2 unit(s) shipping from May 12, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP18,141.54 |
| 5 - 9 | PHP17,778.71 |
| 10 - 24 | PHP17,423.13 |
| 25 - 49 | PHP17,074.67 |
| 50 + | PHP16,733.18 |
*price indicative
- RS Stock No.:
- 467-917
- Mfr. Part No.:
- B84144A0050R120
- Manufacturer:
- EPCOS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | EMC Filter | |
| Maximum Current | 50A | |
| Maximum Voltage | 520V ac | |
| Mount Type | Flange | |
| Termination Style | Screw | |
| Number of Phases | 3 | |
| Number of Stages | 1 | |
| Series | B84144A | |
| Operating Frequency | 60 Hz | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 100°C | |
| Leakage Current | 9.4mA | |
| Depth | 272mm | |
| Height | 60mm | |
| Length | 90mm | |
| Resistance | 1.3mΩ | |
| Standards/Approvals | UL 1283 | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type EMC Filter | ||
Maximum Current 50A | ||
Maximum Voltage 520V ac | ||
Mount Type Flange | ||
Termination Style Screw | ||
Number of Phases 3 | ||
Number of Stages 1 | ||
Series B84144A | ||
Operating Frequency 60 Hz | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 100°C | ||
Leakage Current 9.4mA | ||
Depth 272mm | ||
Height 60mm | ||
Length 90mm | ||
Resistance 1.3mΩ | ||
Standards/Approvals UL 1283 | ||
- COO (Country of Origin):
- HU
B84144A*R120 Series
Easy to install 4-line filter in a Metal case and potted in Polyurethane (UL 94 V-0)
Optimised for long motor cables and operation under full load
Applications include: Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies and Industrial applications
Approvals
UL and cUL pending
Standards
EN 133200, UL 1283, CSA C22.2 No.8
