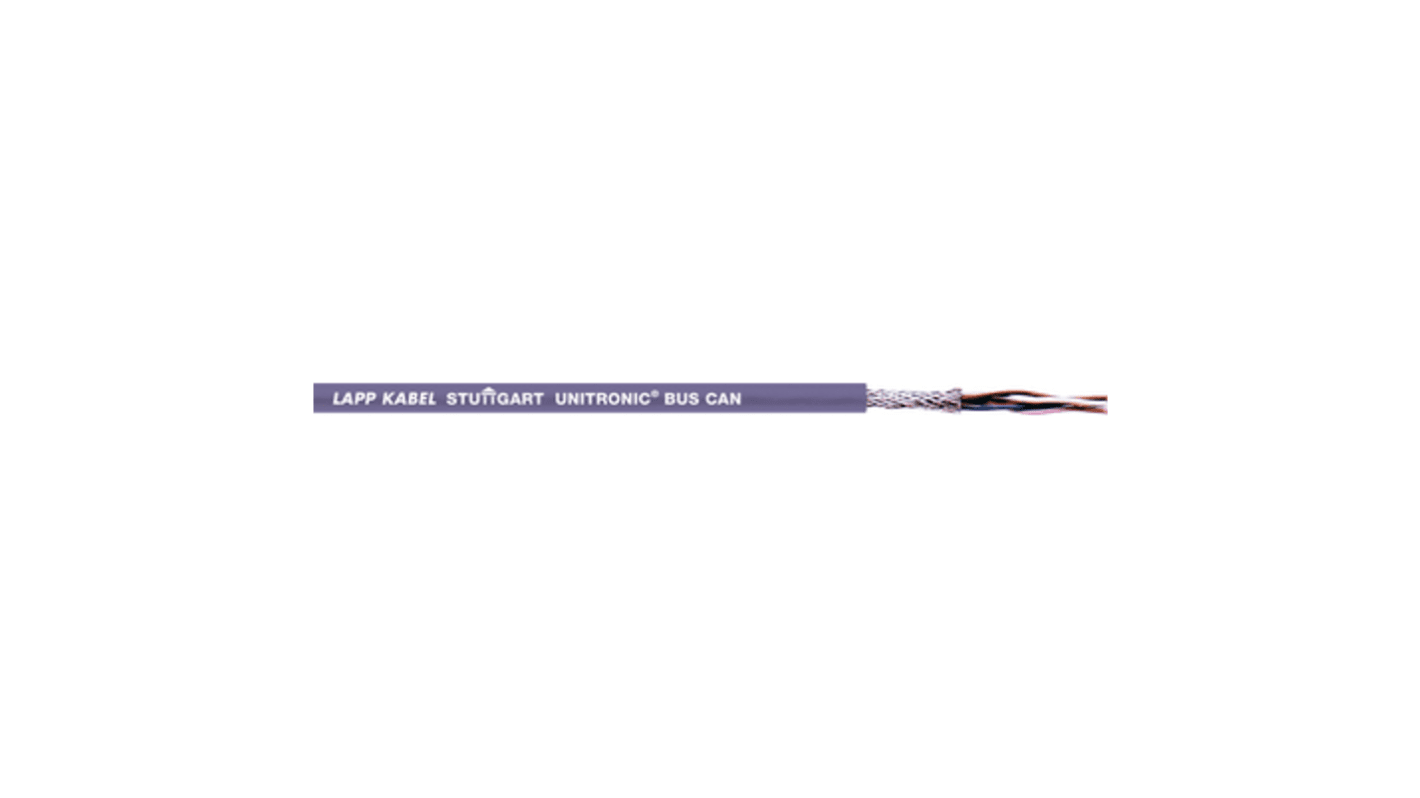

Lapp UNITRONIC BUS CAN 2 Core, Purple Bus Cable 80 °C, 100 m PVC
- RS Stock No.:
- 277-8364
- Mfr. Part No.:
- 2170261
- Manufacturer:
- Lapp
Subtotal (1 reel of 100 metres)*
PHP27,887.23
(exc. VAT)
PHP31,233.70
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 1 unit(s) shipping from November 23, 2026
- Plus 2 unit(s) shipping from November 27, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP27,887.23 | PHP278.872 |
*price indicative
- RS Stock No.:
- 277-8364
- Mfr. Part No.:
- 2170261
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Bus Cable | |
| Number of Cores | 2 | |
| Jacket Colour | Purple | |
| Cable Length | 100m | |
| Jacket Material | PVC | |
| Conductor Type | Stranded | |
| Standards/Approvals | ISO 11898, CSA, UL | |
| Cable CSA | 0.22mm² | |
| Conductor Material | Bare Copper | |
| Series | UNITRONIC BUS CAN | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Bus Cable | ||
Number of Cores 2 | ||
Jacket Colour Purple | ||
Cable Length 100m | ||
Jacket Material PVC | ||
Conductor Type Stranded | ||
Standards/Approvals ISO 11898, CSA, UL | ||
Cable CSA 0.22mm² | ||
Conductor Material Bare Copper | ||
Series UNITRONIC BUS CAN | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- AT
The Lapp CAN Bus cables for CAN based communication systems like CANopen and it used for fixed installation. Larger conductor cross section is necessary with increasing length.
Segment length
Maximum bit rate 1 Mbit/s for 40 meter
