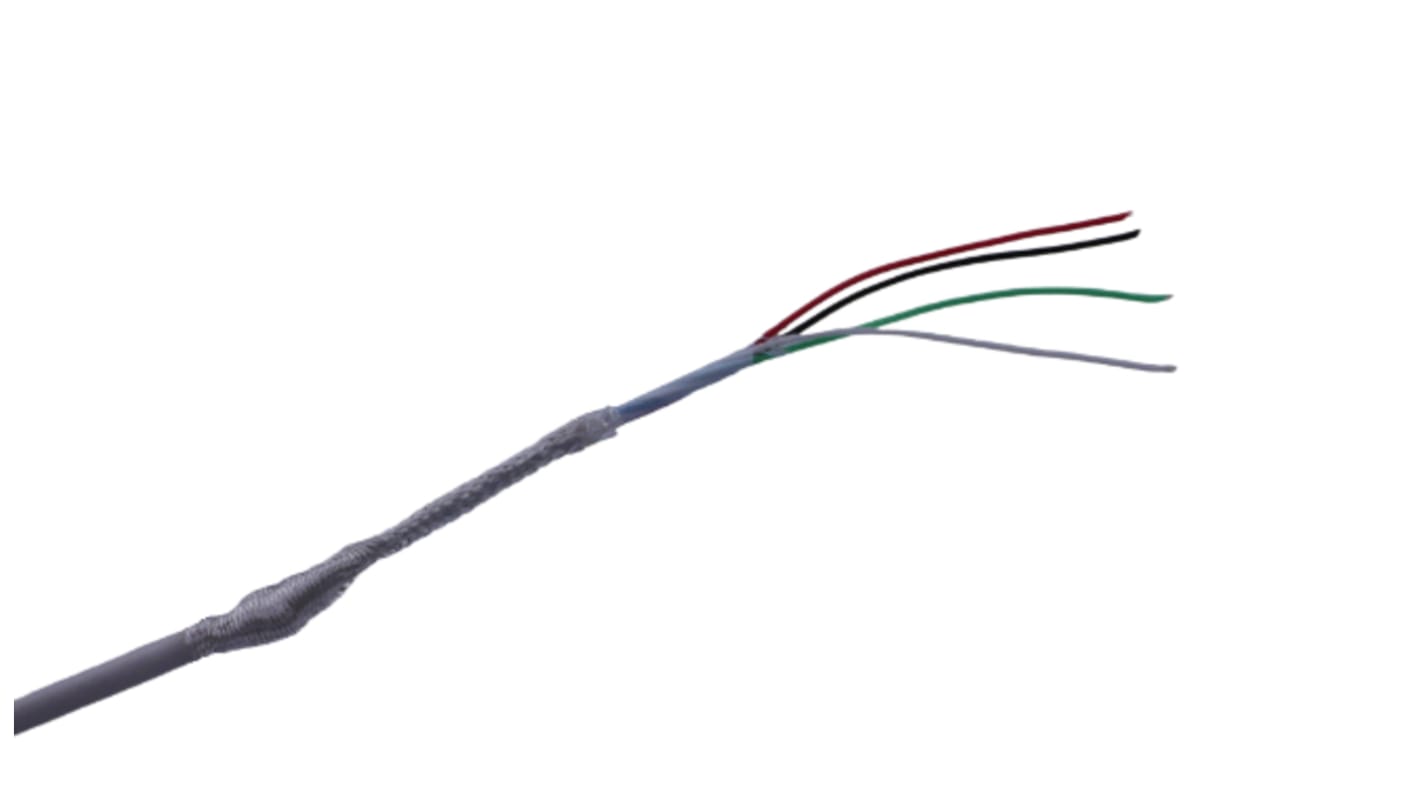

MICROWIRES TES Shielded 0.08 mm² 4 Core Power Cable, White Thermoplastic Elastomers TPE, 50m
- RS Stock No.:
- 277-0059
- Mfr. Part No.:
- TES-2819.04
- Manufacturer:
- MICROWIRES
Subtotal (1 reel of 50 metres)*
PHP93,751.03
(exc. VAT)
PHP105,001.15
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from March 03, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP93,751.03 | PHP1,875.021 |
*price indicative
- RS Stock No.:
- 277-0059
- Mfr. Part No.:
- TES-2819.04
- Manufacturer:
- MICROWIRES
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MICROWIRES | |
| Cross Sectional Area | 0.08 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | White | |
| Length | 50m | |
| Armoured | No | |
| Cable Type | Shielded | |
| Sheath Material | Thermoplastic Elastomers TPE | |
| Voltage Rating | 600 V | |
| Cable Shape | Round | |
| American Wire Gauge | AWG 28 | |
| Minimum Operating Temperature | - 50°C | |
| Series | TES | |
| Core Strands | 19 strands | |
| Fire Behaviour | FAR25 | |
| Maximum Operating Temperature | 125°C | |
| Standards Met | REACH Compliant, RoHS Compliant | |
| Insulation Material | PFA | |
| Select all | ||
|---|---|---|
Brand MICROWIRES | ||
Cross Sectional Area 0.08 mm² | ||
Number of Cores 4 | ||
Sheath Colour White | ||
Length 50m | ||
Armoured No | ||
Cable Type Shielded | ||
Sheath Material Thermoplastic Elastomers TPE | ||
Voltage Rating 600 V | ||
Cable Shape Round | ||
American Wire Gauge AWG 28 | ||
Minimum Operating Temperature - 50°C | ||
Series TES | ||
Core Strands 19 strands | ||
Fire Behaviour FAR25 | ||
Maximum Operating Temperature 125°C | ||
Standards Met REACH Compliant, RoHS Compliant | ||
Insulation Material PFA | ||
- COO (Country of Origin):
- FR
The MICROWIRES Miniature TPE Shielded Cable is a flexible cable with Thermoplastic elastomer sheath. It is ROHS and REACH compliant. It is for dynamic uses.
UV resistant
Oil resistant
Water resistant
Oil resistant
Water resistant
Standards
Fire Resistance UL94-V0
