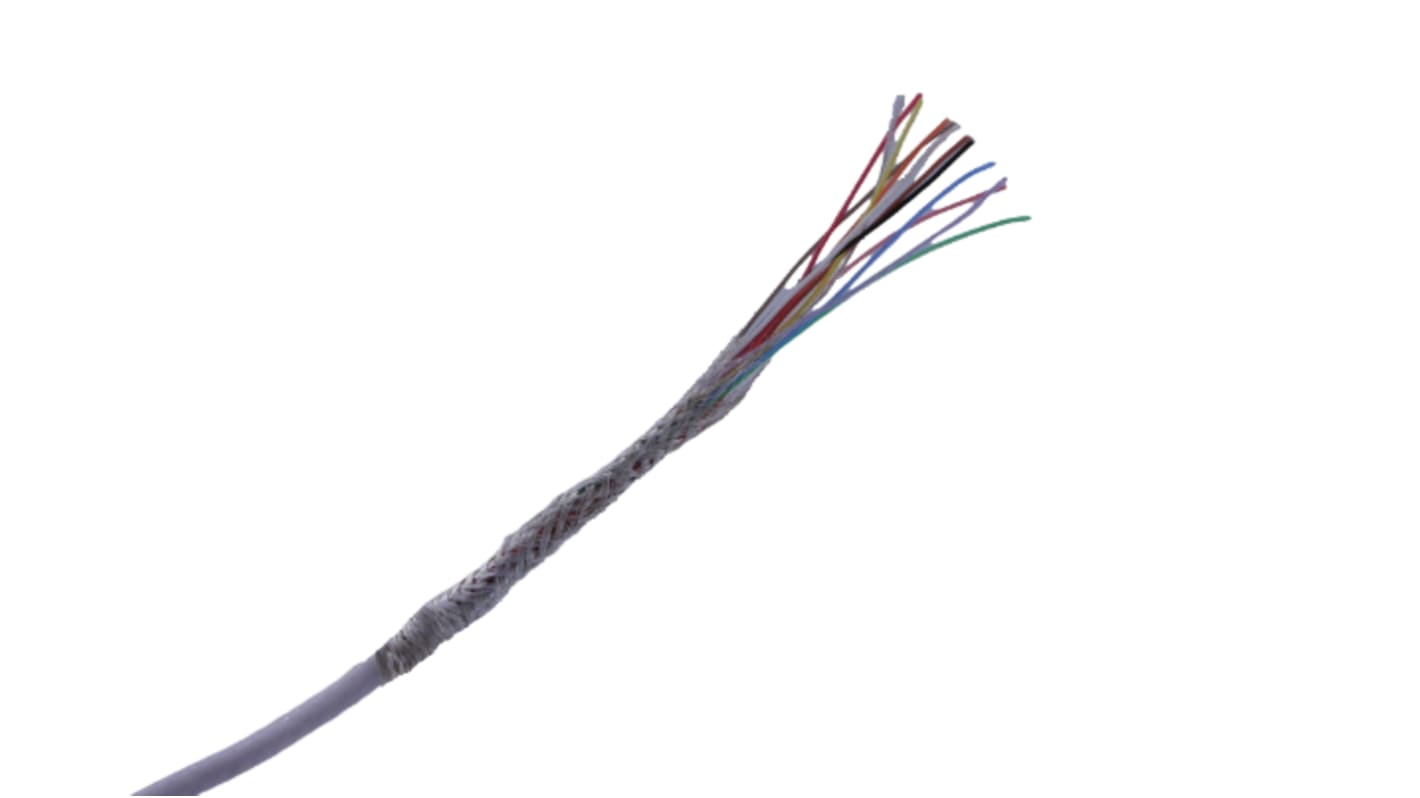

MICROWIRES TAU Shielded 0.13 mm² 12 Core Power Cable, White Perfluoroalkoxy (PFA), 50m
- RS Stock No.:
- 277-0042
- Mfr. Part No.:
- TAU-2619.12
- Manufacturer:
- MICROWIRES
Subtotal (1 reel of 50 metres)*
PHP207,496.22
(exc. VAT)
PHP232,395.77
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 1 unit(s) shipping from December 29, 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP207,496.22 | PHP4,149.924 |
*price indicative
- RS Stock No.:
- 277-0042
- Mfr. Part No.:
- TAU-2619.12
- Manufacturer:
- MICROWIRES
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MICROWIRES | |
| Cross Sectional Area | 0.13 mm² | |
| Number of Cores | 12 | |
| Sheath Colour | White | |
| Length | 50m | |
| Armoured | No | |
| Cable Type | Shielded | |
| Sheath Material | Perfluoroalkoxy (PFA) | |
| Voltage Rating | 600 V | |
| Standards Met | REACH Compliant, RoHS Compliant | |
| Fire Behaviour | UL 94 V0 | |
| Minimum Operating Temperature | - 196°C | |
| Cable Shape | Round | |
| American Wire Gauge | AWG 26 | |
| Insulation Material | PFA | |
| Maximum Operating Temperature | 200°C | |
| Core Strands | 19 strands | |
| Series | TAU | |
| Select all | ||
|---|---|---|
Brand MICROWIRES | ||
Cross Sectional Area 0.13 mm² | ||
Number of Cores 12 | ||
Sheath Colour White | ||
Length 50m | ||
Armoured No | ||
Cable Type Shielded | ||
Sheath Material Perfluoroalkoxy (PFA) | ||
Voltage Rating 600 V | ||
Standards Met REACH Compliant, RoHS Compliant | ||
Fire Behaviour UL 94 V0 | ||
Minimum Operating Temperature - 196°C | ||
Cable Shape Round | ||
American Wire Gauge AWG 26 | ||
Insulation Material PFA | ||
Maximum Operating Temperature 200°C | ||
Core Strands 19 strands | ||
Series TAU | ||
- COO (Country of Origin):
- FR
The MICROWIRES Miniature Shielded Cable is a flexible cable with PFA insulation and white sheath. It is ROHS and REACH compliant.
UV resistant
Oil resistant
Water resistant
Oil resistant
Water resistant
Standards
Fire Resistance UL94-V0
